Product Description
Key Features

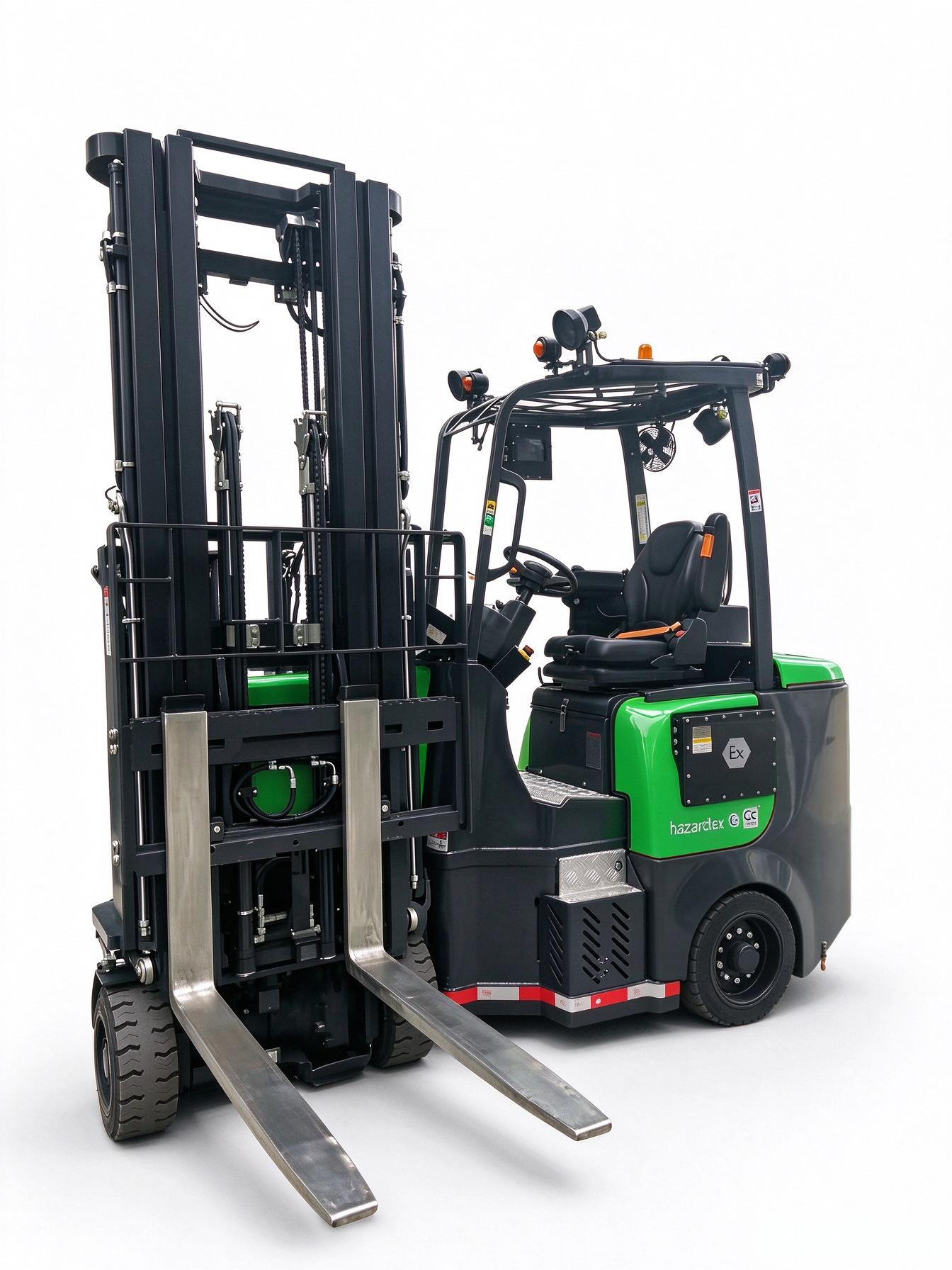

✅ Articulated Narrow‑Aisle DesignWorks within 1700‑1900 mm aisle width. No large turning radius required. Boost warehouse storage capacity by 40%‑50% compared with conventional counterbalance explosion‑proof forklifts. Supports high‑level racking with lift height up to 12 m.

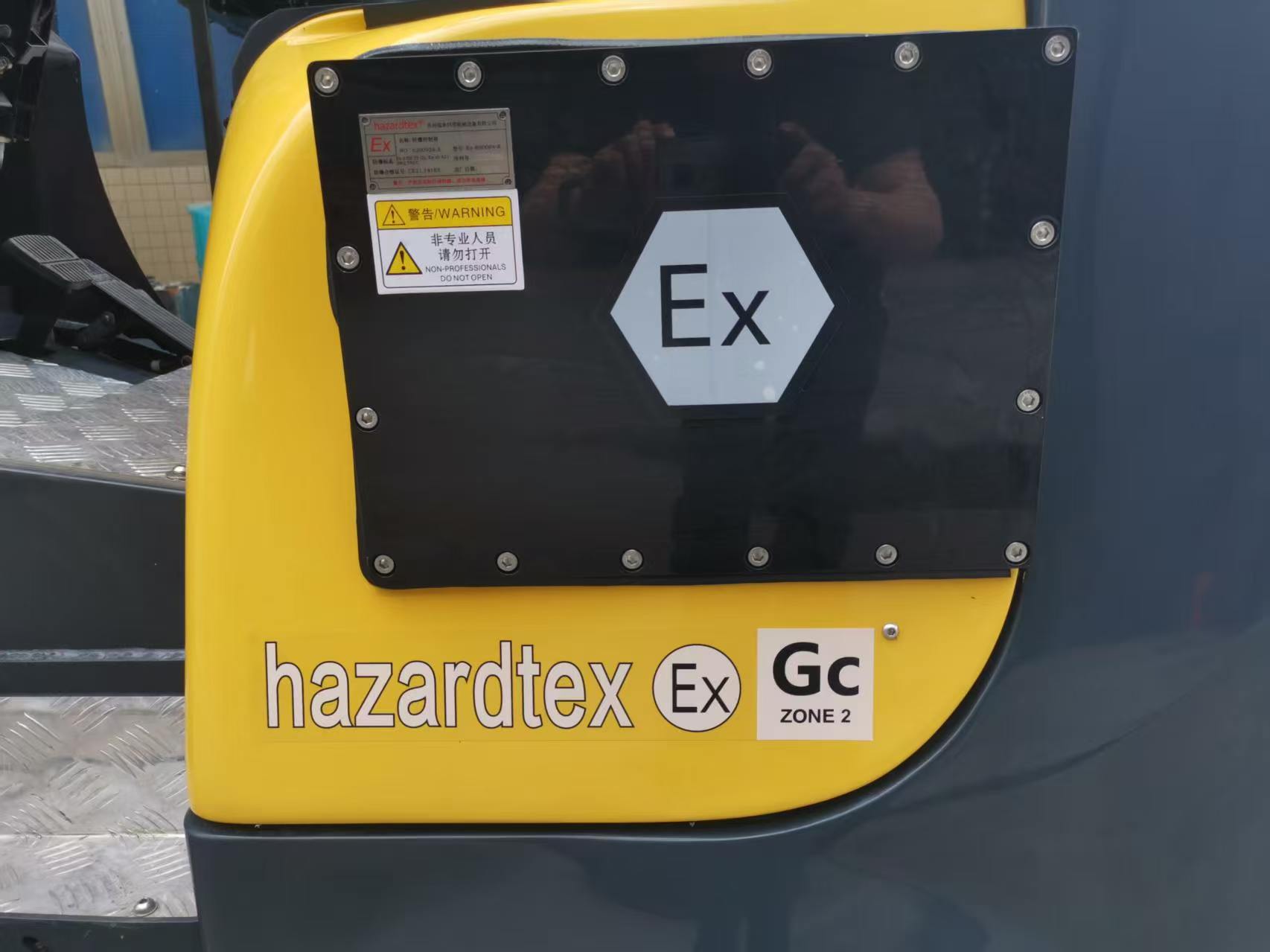

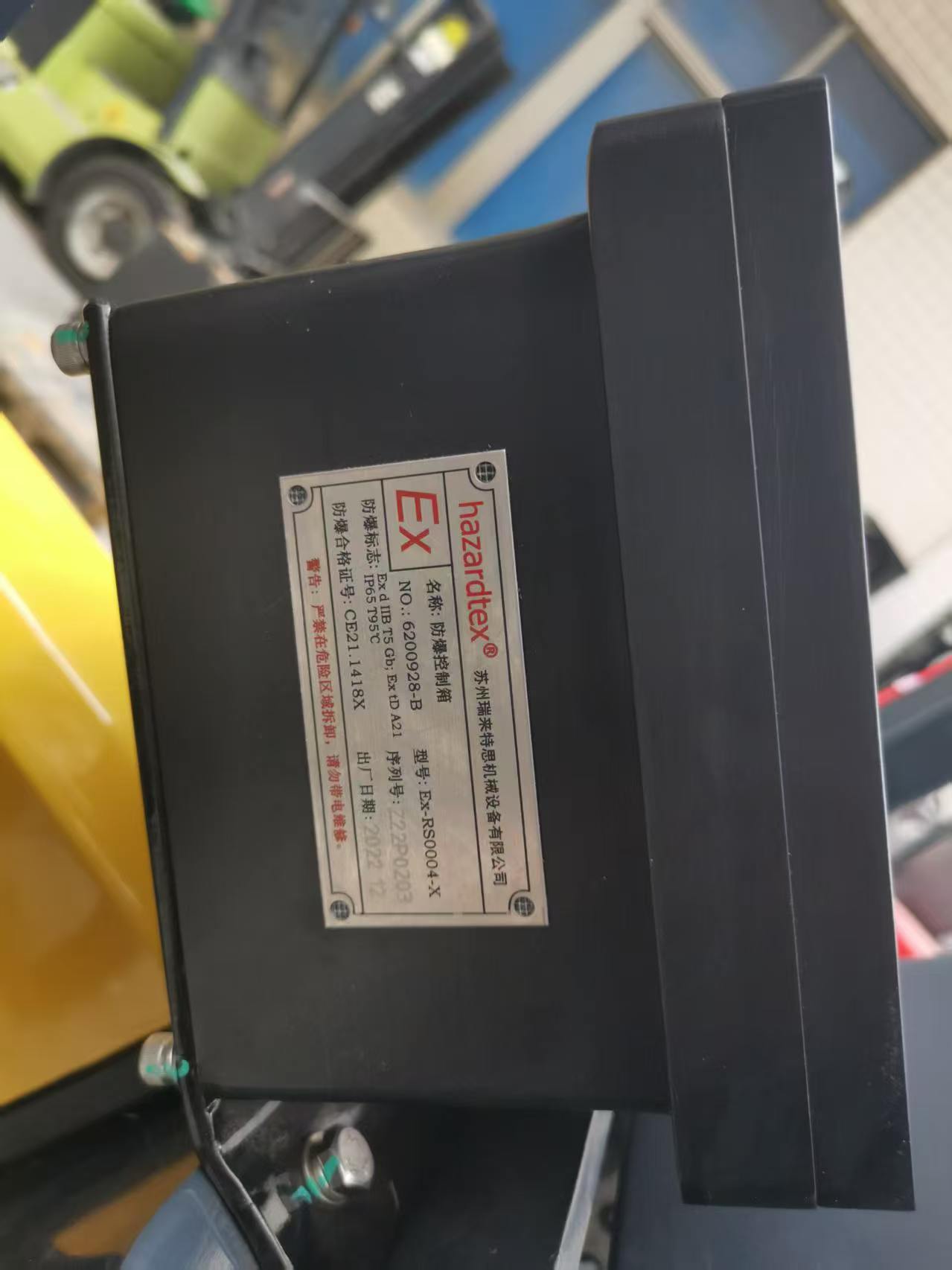

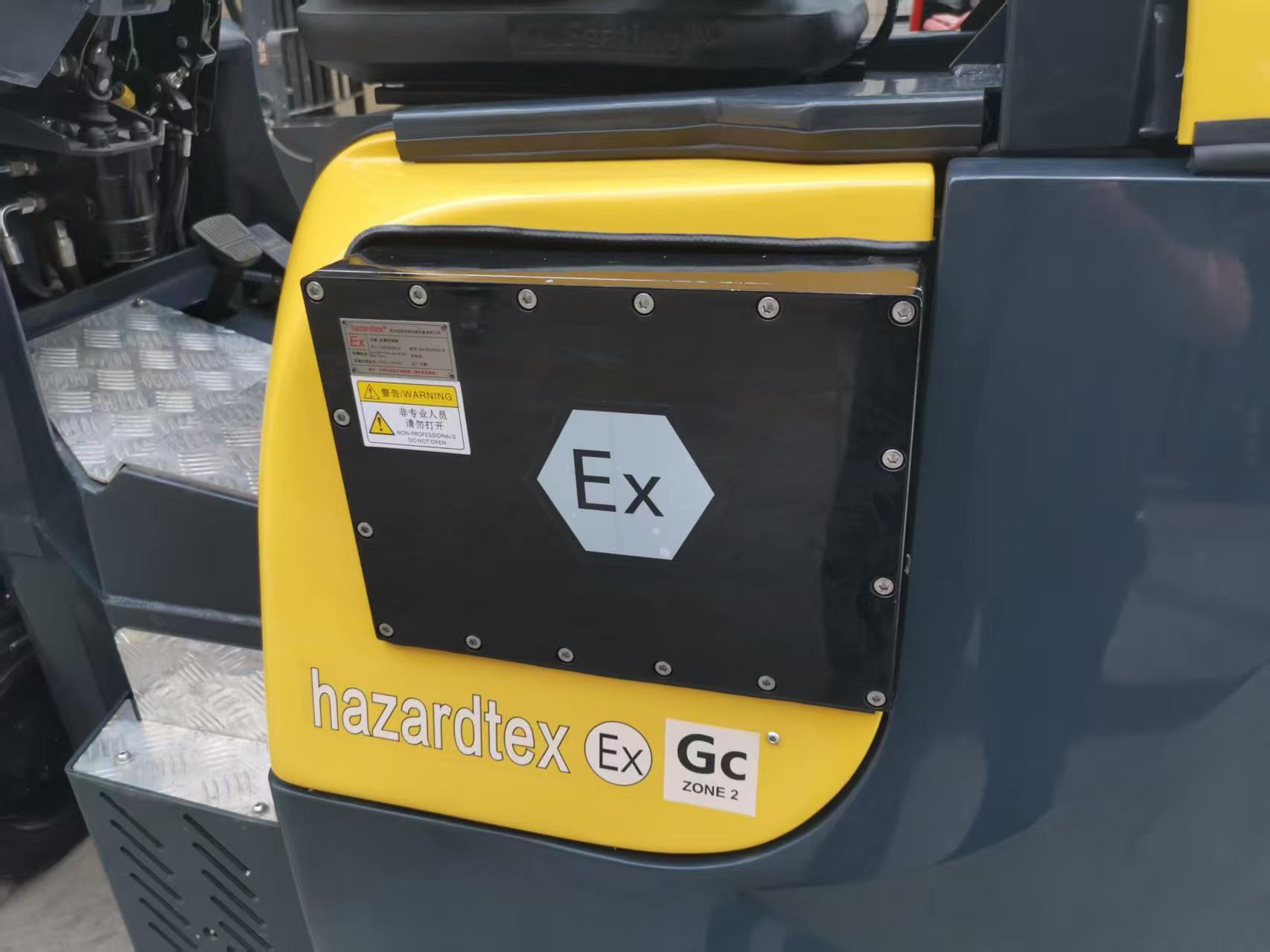

✅ Full‑Vehicle Explosion‑Proof ProtectionCertified for Gas Zone 1 / Zone 2 and Dust Zone 21 / Zone 22. All key electric components including motors, controllers, wiring harnesses, switches and lamps adopt flame‑proof, increased‑safety and intrinsically‑safe treatment. Equipped with anti‑static tyres and static grounding chain to eliminate static‑spark risks.
✅ Lithium‑ion Battery Power SystemEmission‑free, suitable for enclosed warehouse continuous shifts. Stable performance for hazardous‑area indoor applications.

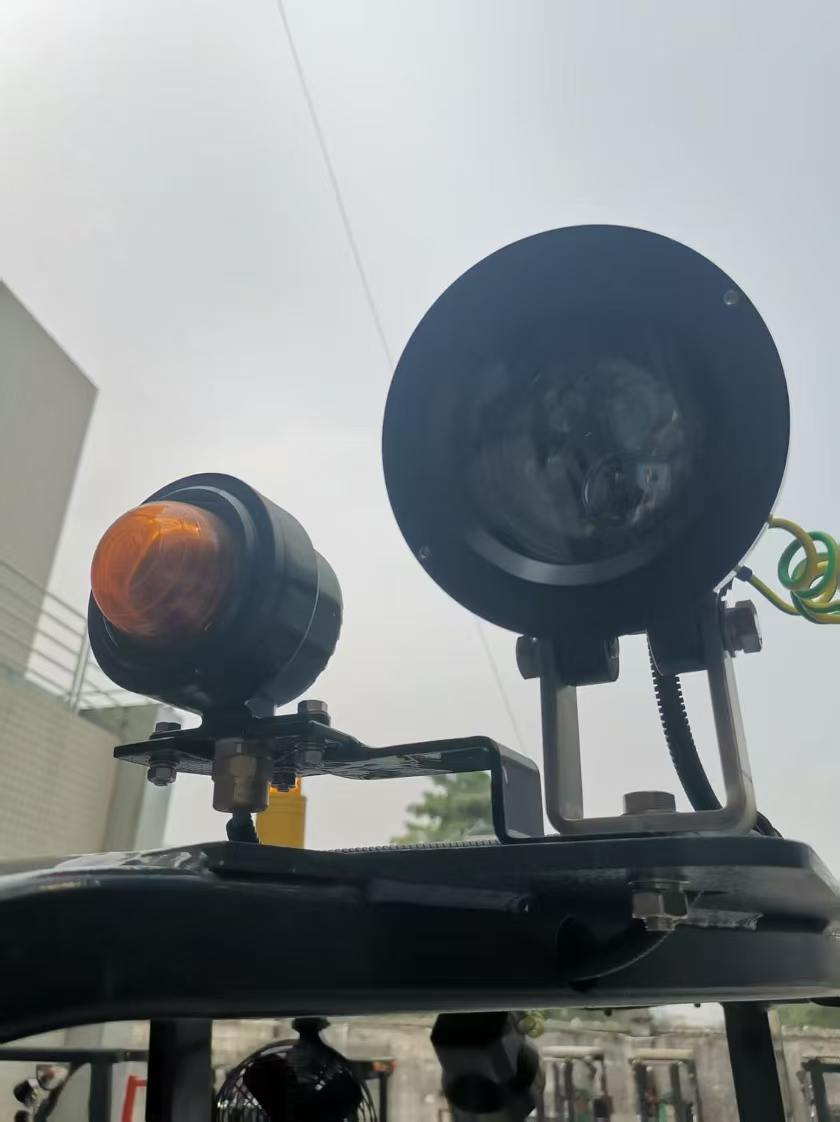

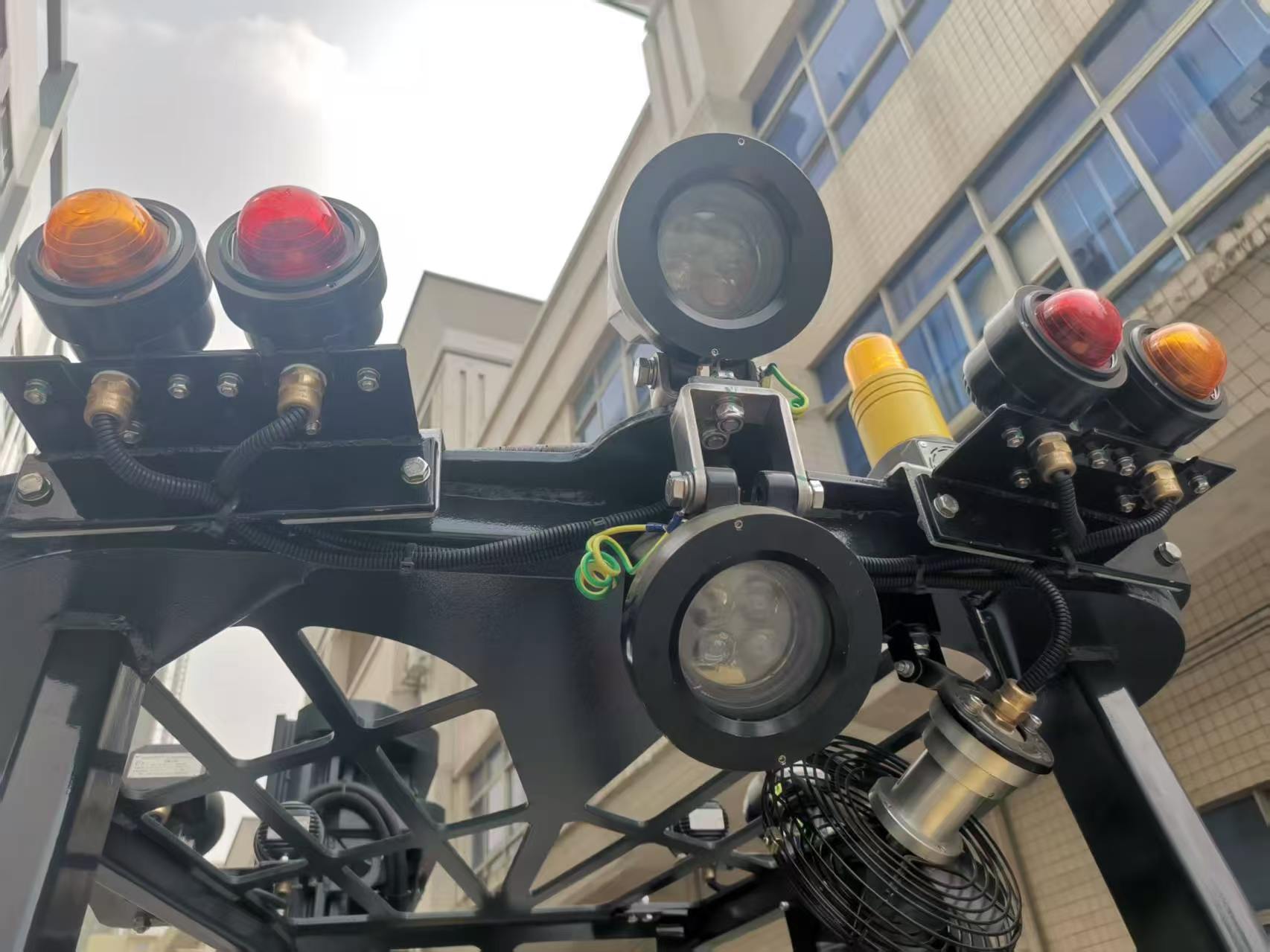

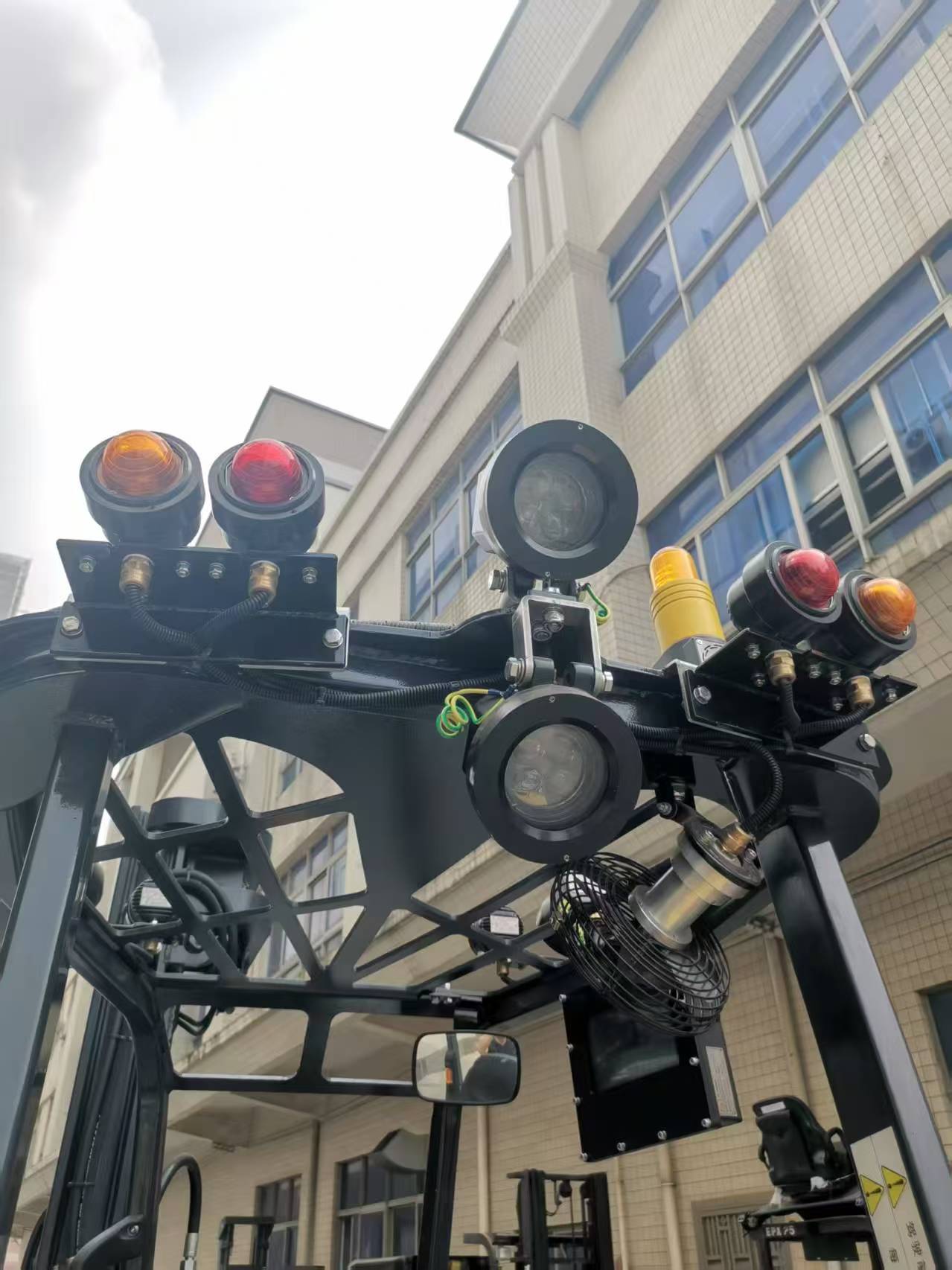

✅ Operator‑Friendly ConfigurationHeavy‑duty shock‑absorbing seat, overhead guard, explosion‑proof audible‑visual alarm lights, reversing warning system and cooling fan, ensuring safety and comfort during long working hours.
Note: NOT suitable for Zone 0 and Zone 20 environments.
Application Scenarios（适用场景）
Chemical hazardous‑goods high‑bay warehouses (solvents, paint raw‑materials)
Pharmaceutical raw‑material warehouses with organic solvents
New‑energy lithium‑battery raw‑material storage (powder & electrolyte)
Bulk powder & ton‑bag storage warehouses with dust hazard
Quick Specs Highlights（简要参数）
Rated capacity: 1.5 t‑3.0 t
Max lifting height: 6 m‑15 m
Min. operating aisle: 1800‑1900 mm
Power source: Lithium‑ion battery/LEAD ACID BATTERY
Explosion‑proof rating: Zone1/2 (gas), Zone21/22 (dust)

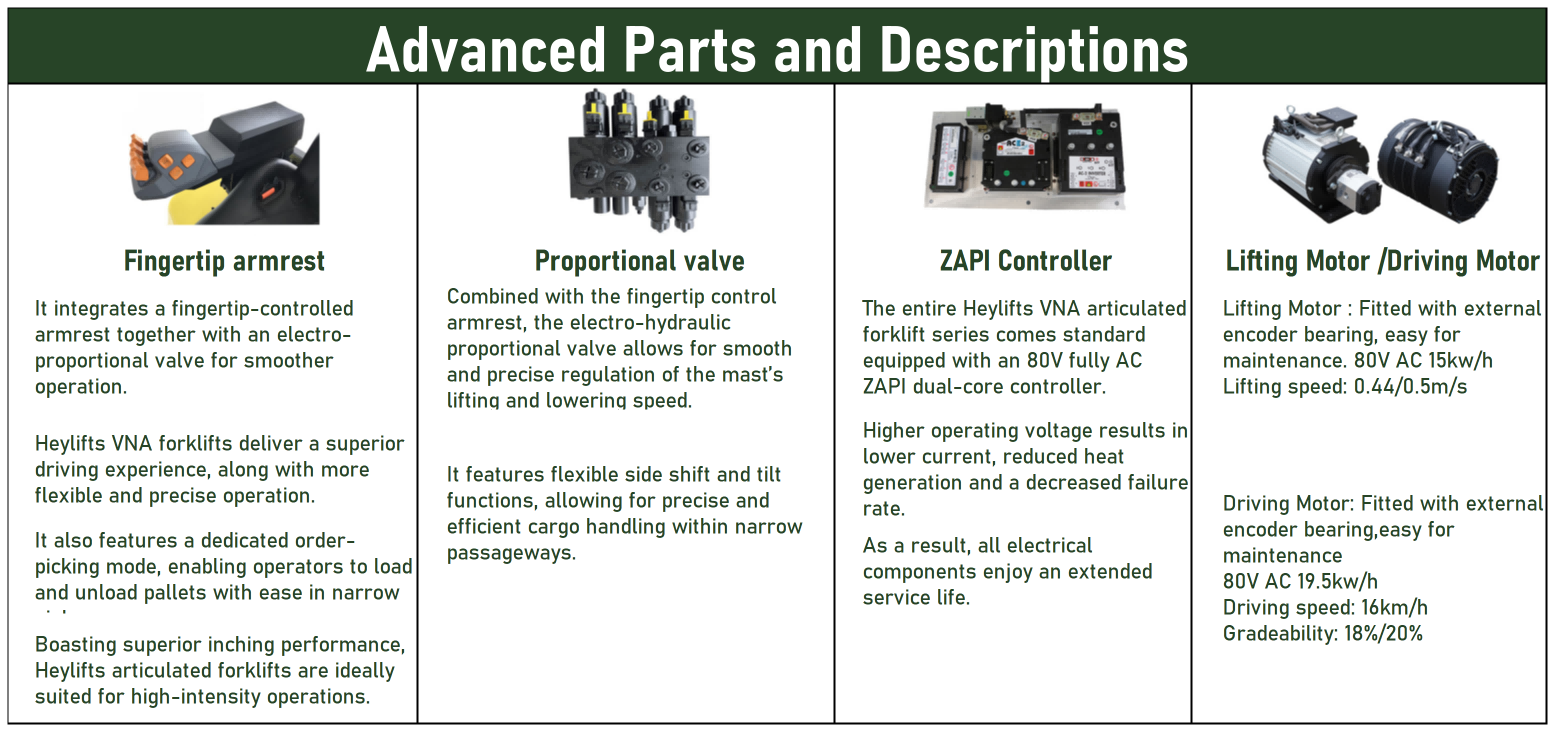

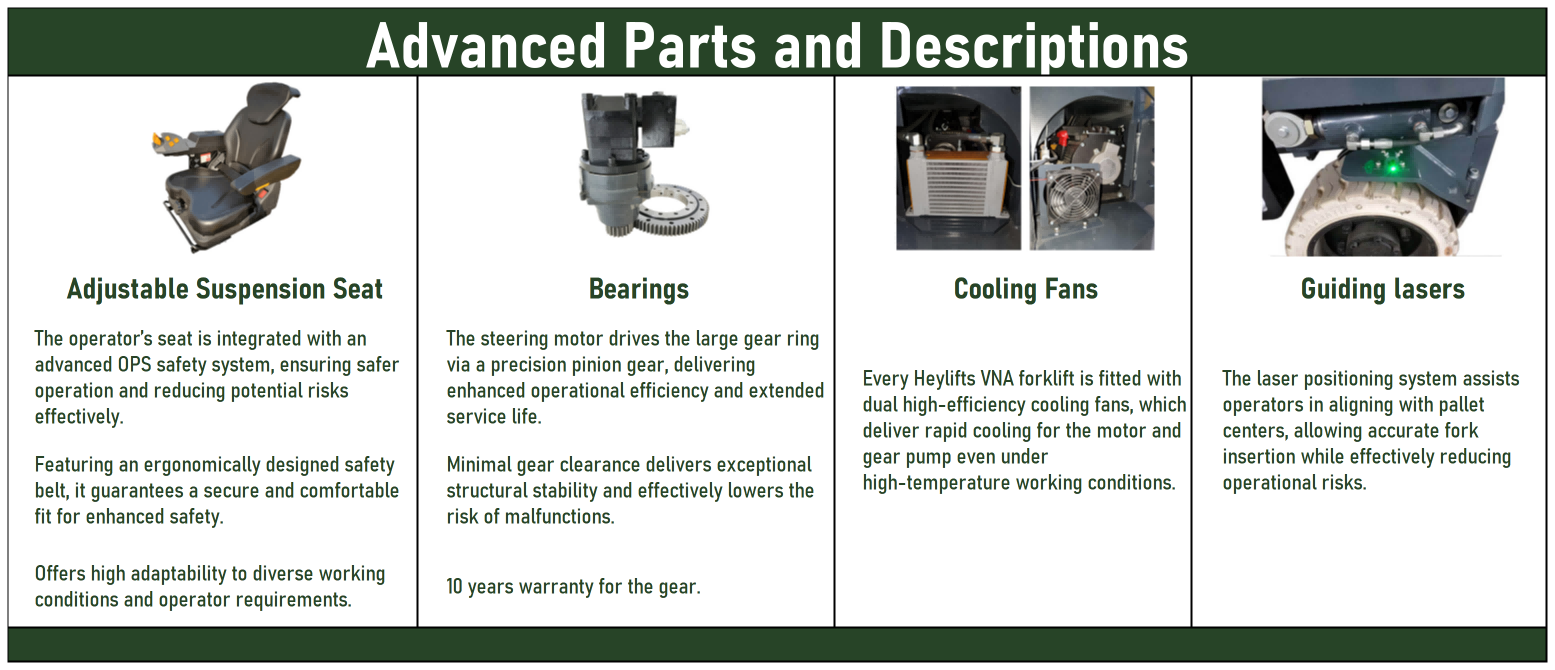

Configurations
| Standard parts | Optional parts |

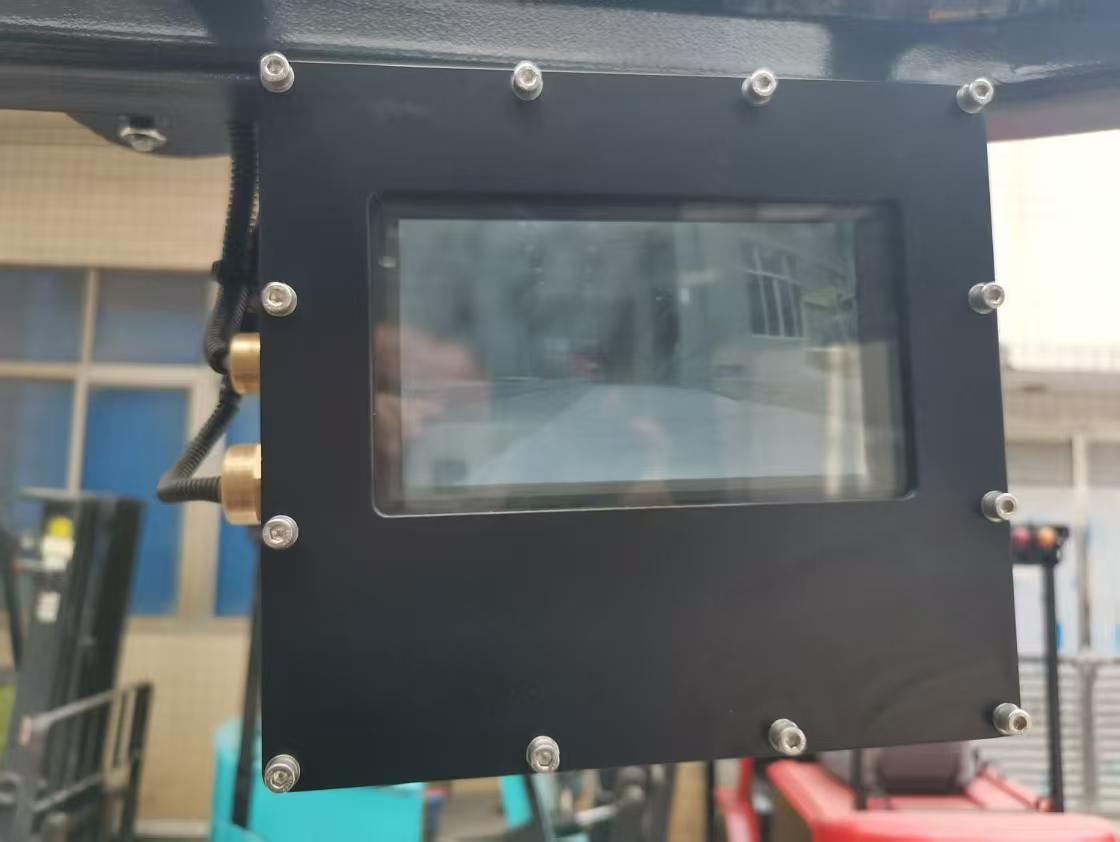

| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium battery/ lead acid battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |
| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts25 |
| Capacity | KG | 2500 |
| Mast lift height | MM | 4300-12400 |
| Mast free lift height | MM | 1365-4686 |
| Mast closed height | MM | 2265-5665 |
| Mast full extended height | MM | 5561-13739 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1400 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x170 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 7400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1900 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 15000mm

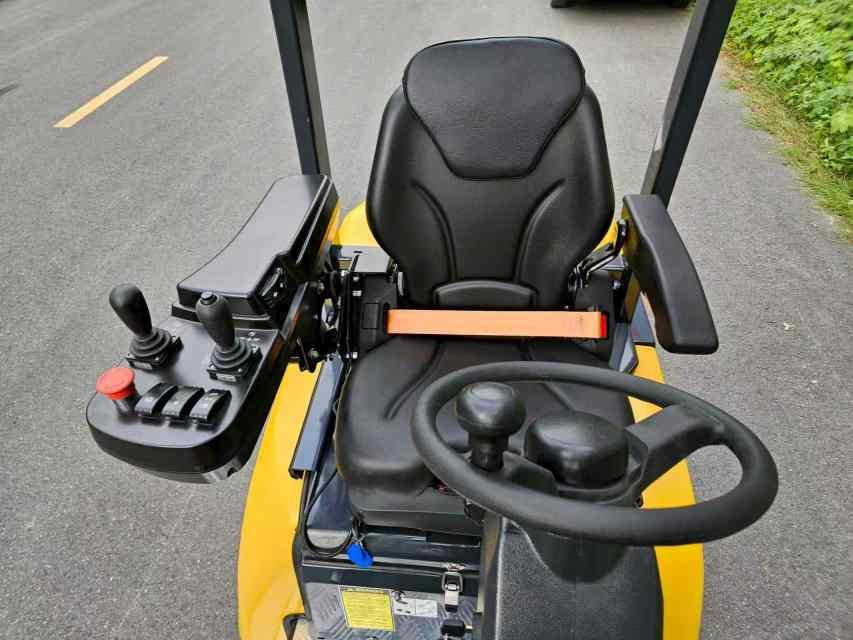

Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1900mm
The full range of the articulating narrow aisle forklift trucks:
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
