Product Description

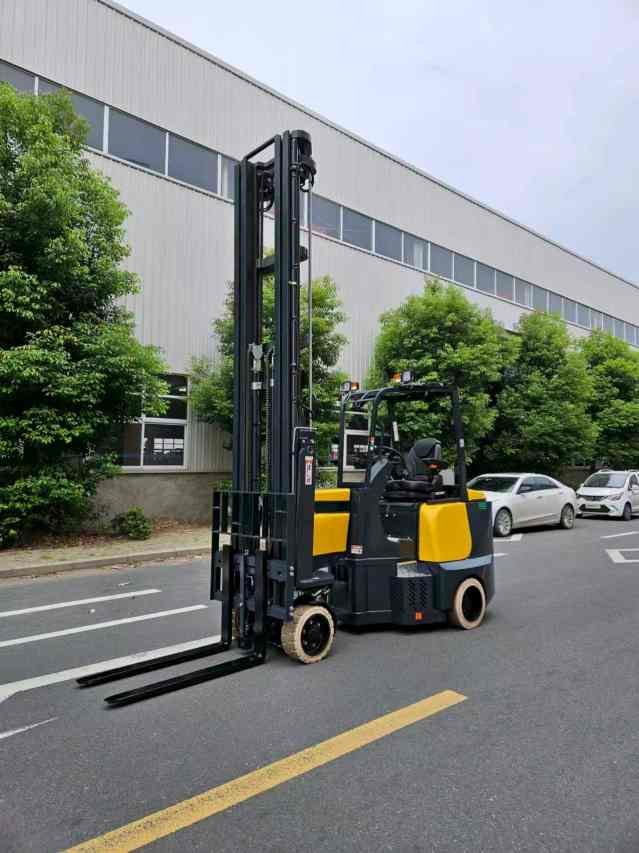

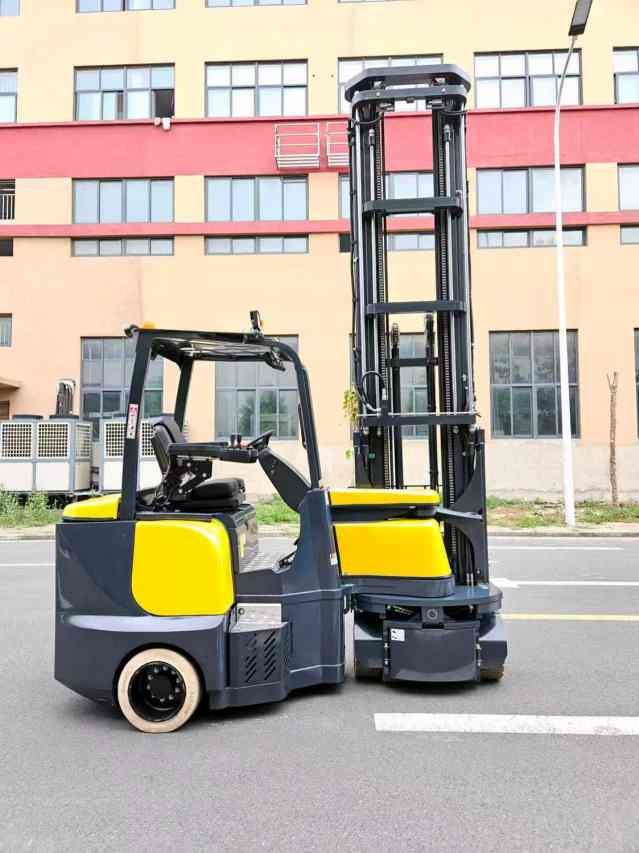

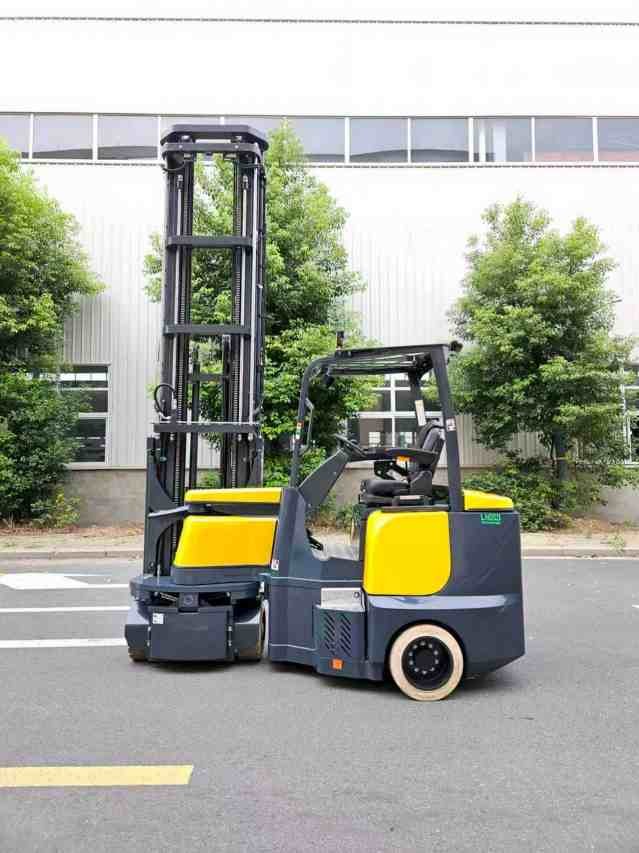

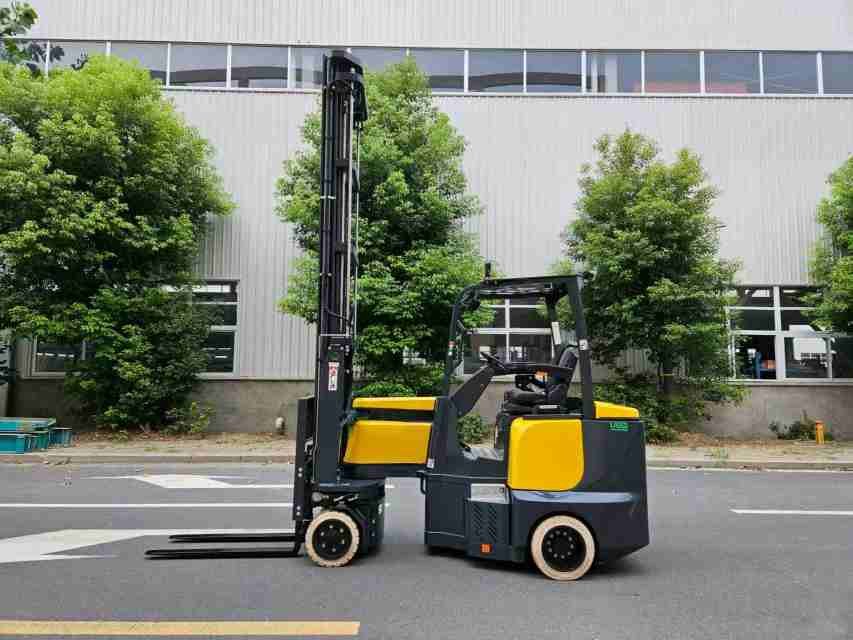

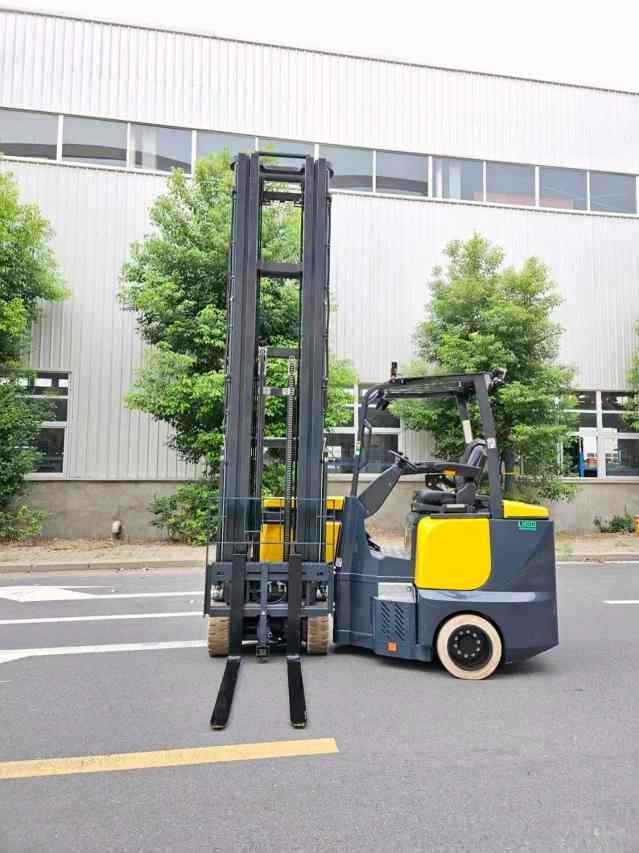

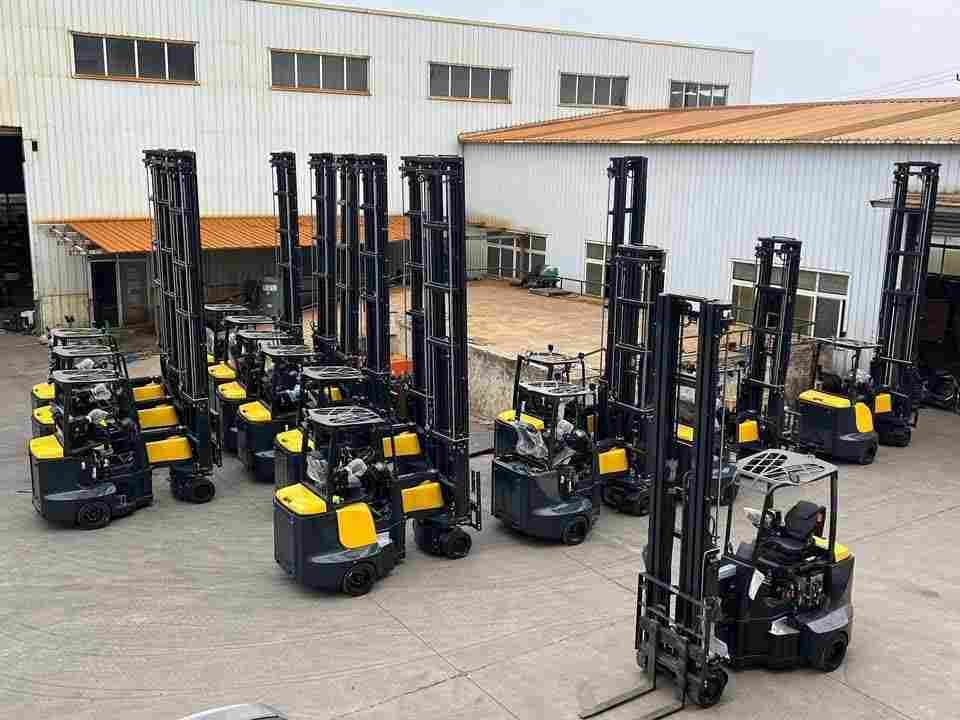

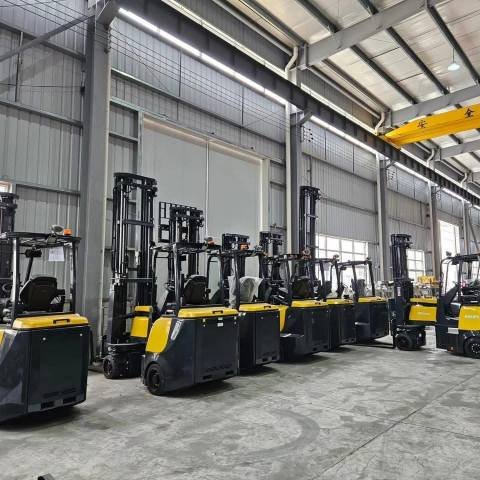

Product Item: Heylifts 3t Narrow Aisle Reach Forklift Trucks
Heylifts electric narrow aisle forklifts greatly reduce aisle width, boost storage space by up to 50% and cut warehouse storage costs.
Our VNA articulated forklifts offer 30% more pallet positions than standard reach trucks and 50% more than counterbalance forklifts.
These all-round material handling equipment work indoors and outdoors on all floor surfaces, integrating functions of reach trucks
and counterbalance forklifts to cut your forklift fleet size, save working time and operation cost.
The whole series adopts 80V AC ZAPI dual-core controller, 80V AC motors and 400Ah–600Ah lead-acid or lithium-ion batteries,
ensuring stable power, low failure rate, high efficiency and low maintenance.
Narrow aisle design optimizes warehouse space & lowers storage cost
VNA articulated forklift increases storage capacity by up to 50%
30% more pallet positions than reach trucks, 50% more than counterbalance forklifts
Multi-purpose electric articulated forklift for indoor & outdoor use
All-in-one machine reduces total forklift fleet quantity
80V AC ZAPI controller ensures low failure & long service life
400Ah–600Ah lead-acid & lithium-ion battery options available
High efficiency & low maintenance narrow aisle material handling equipment

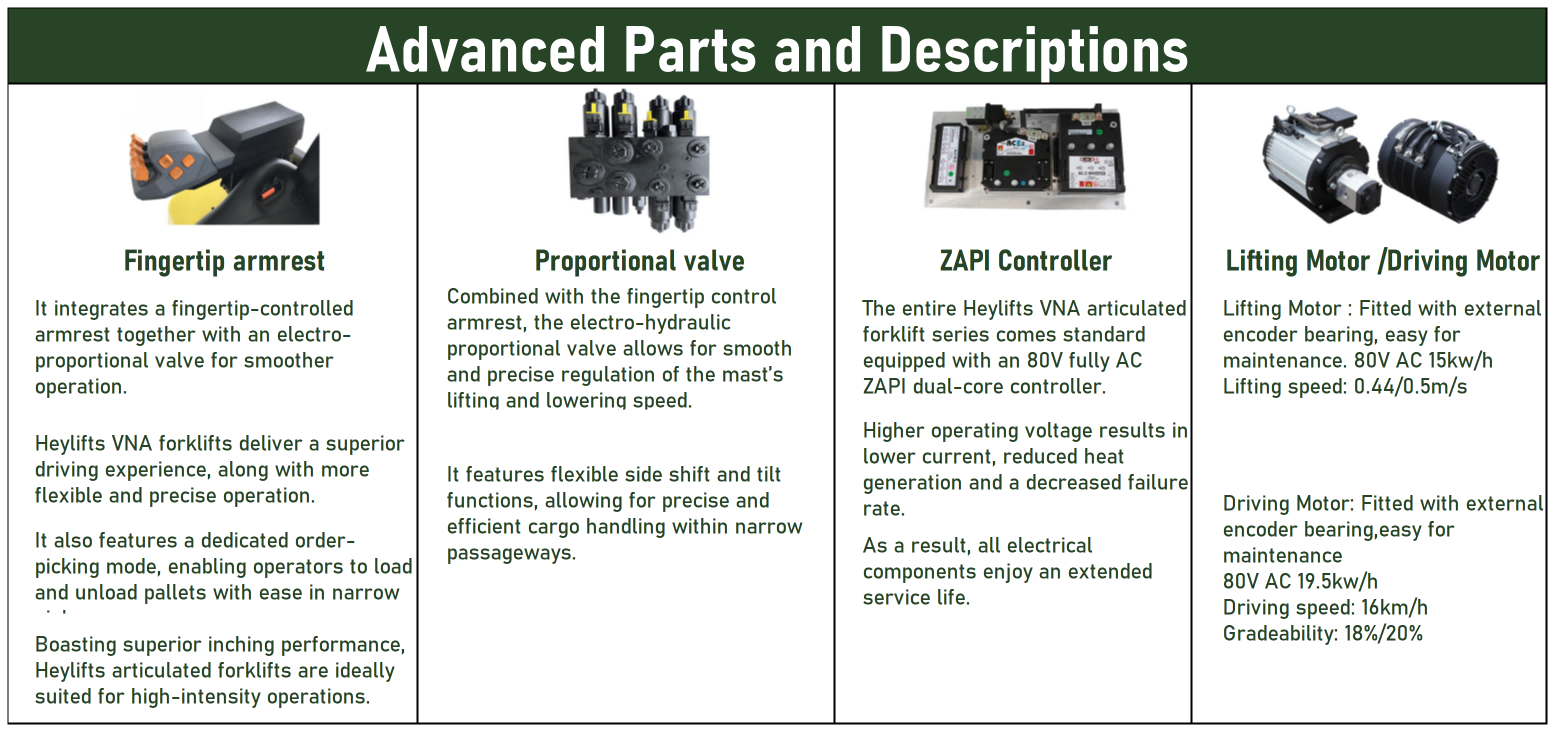

Configurations
| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |
| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts30 |
| Capacity | KG | 3000 |
| Mast lift height | MM | 4300-12400 |
| Mast free lift height | MM | 1365-4686 |
| Mast closed height | MM | 2265-5665 |
| Mast full extended height | MM | 5561-13739 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1600 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x170 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 7900 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 2100 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 15000mm

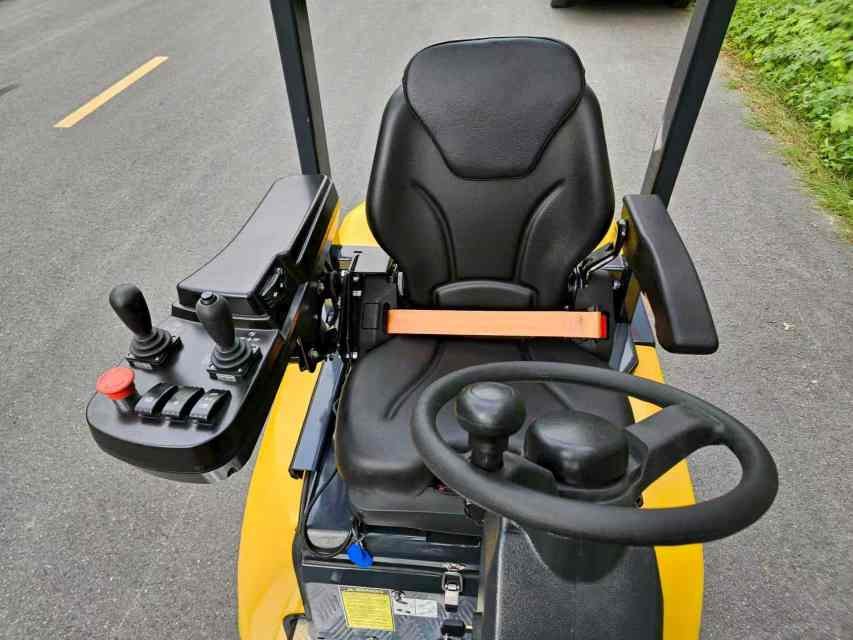

Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 2100mm
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-15000mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-15000mm.
