Product Description

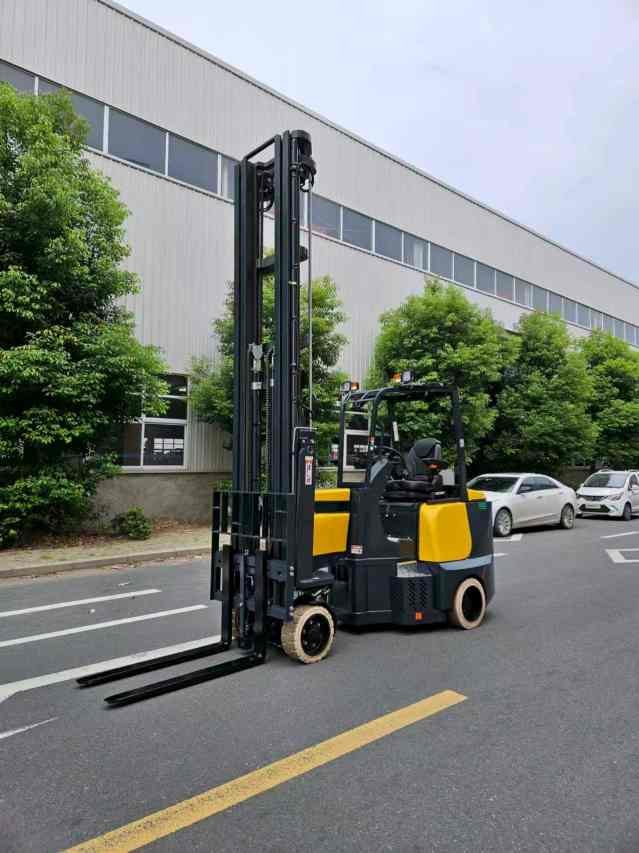

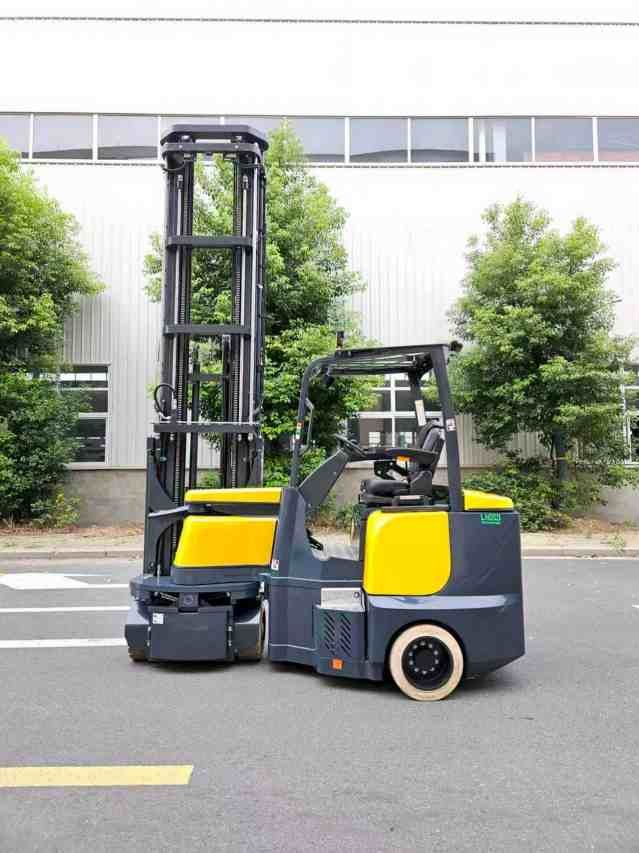

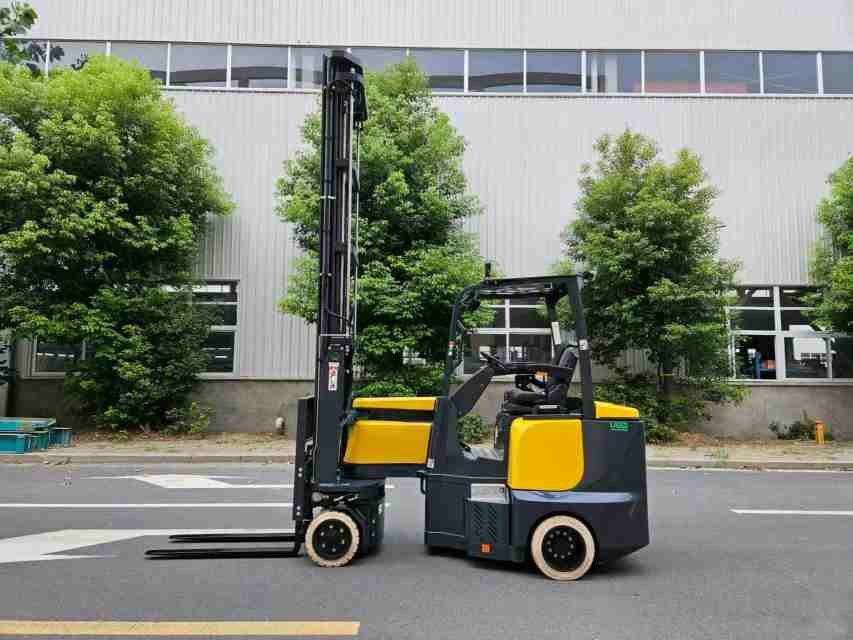

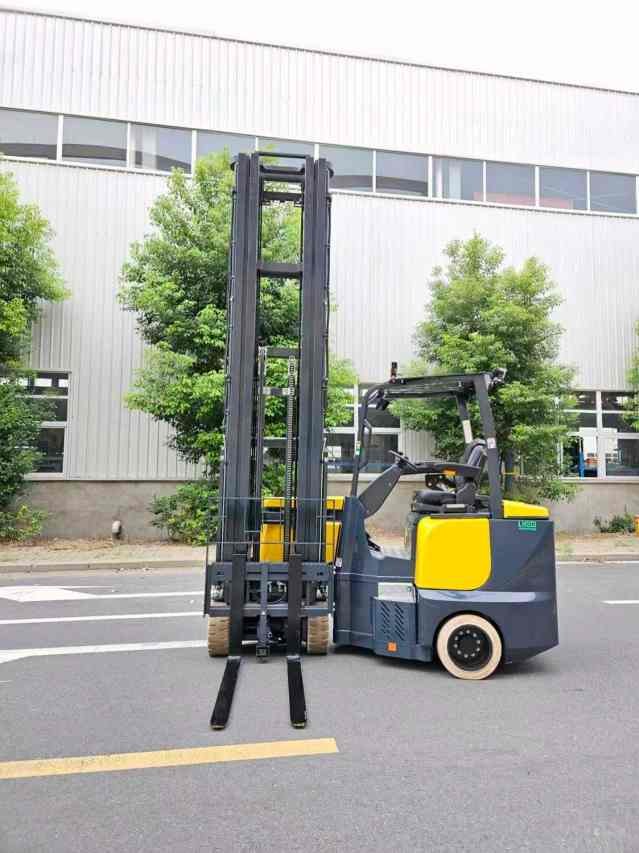

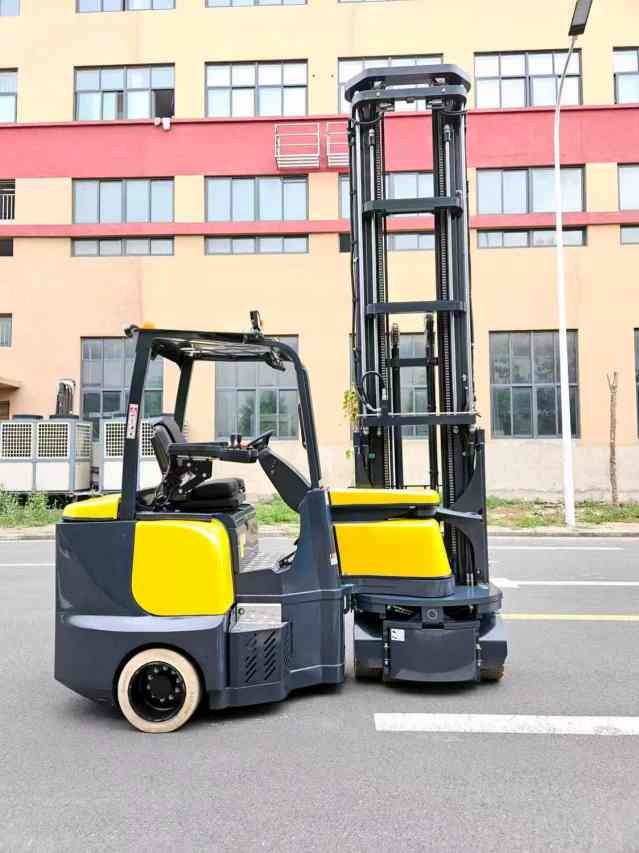

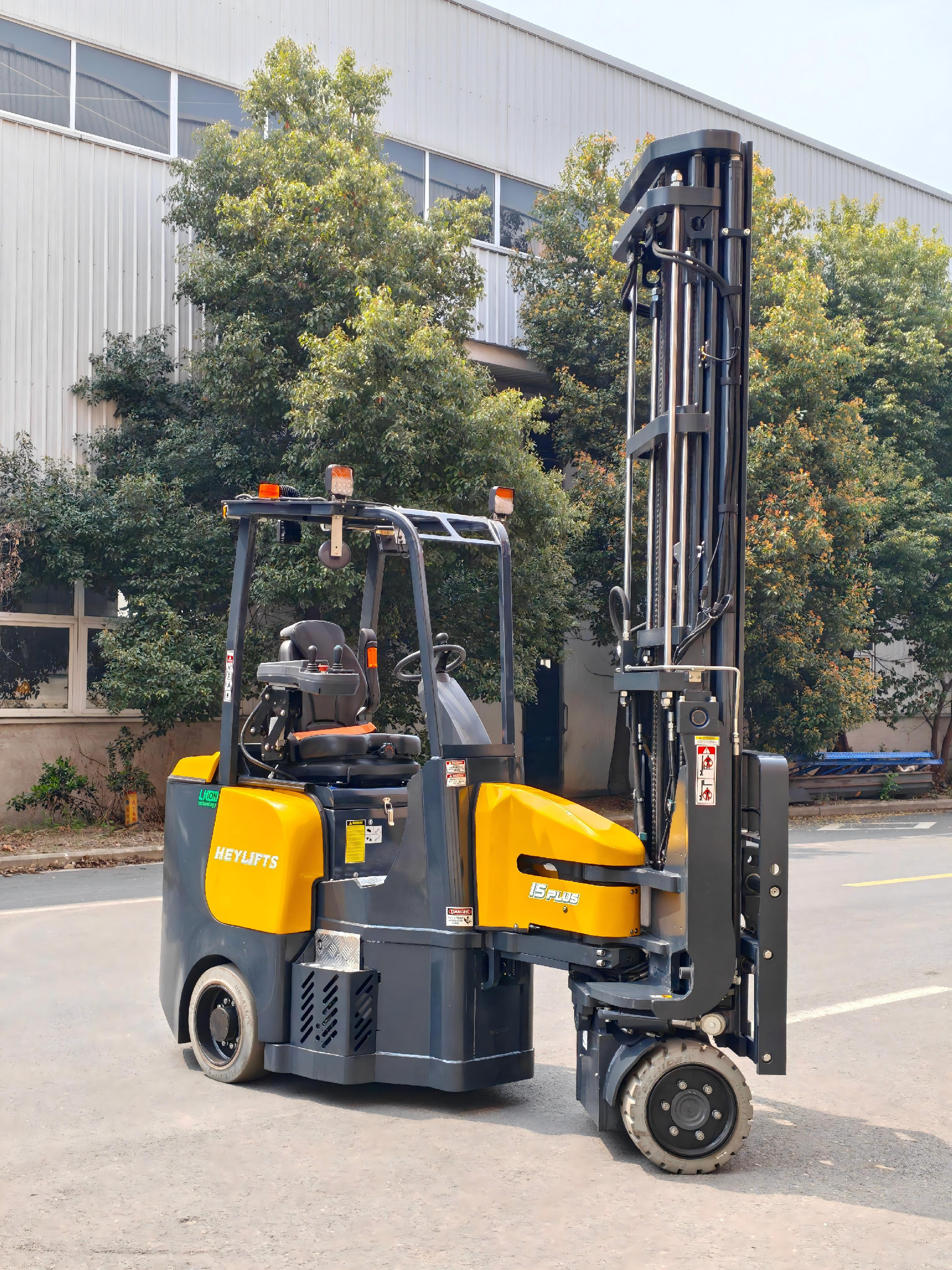

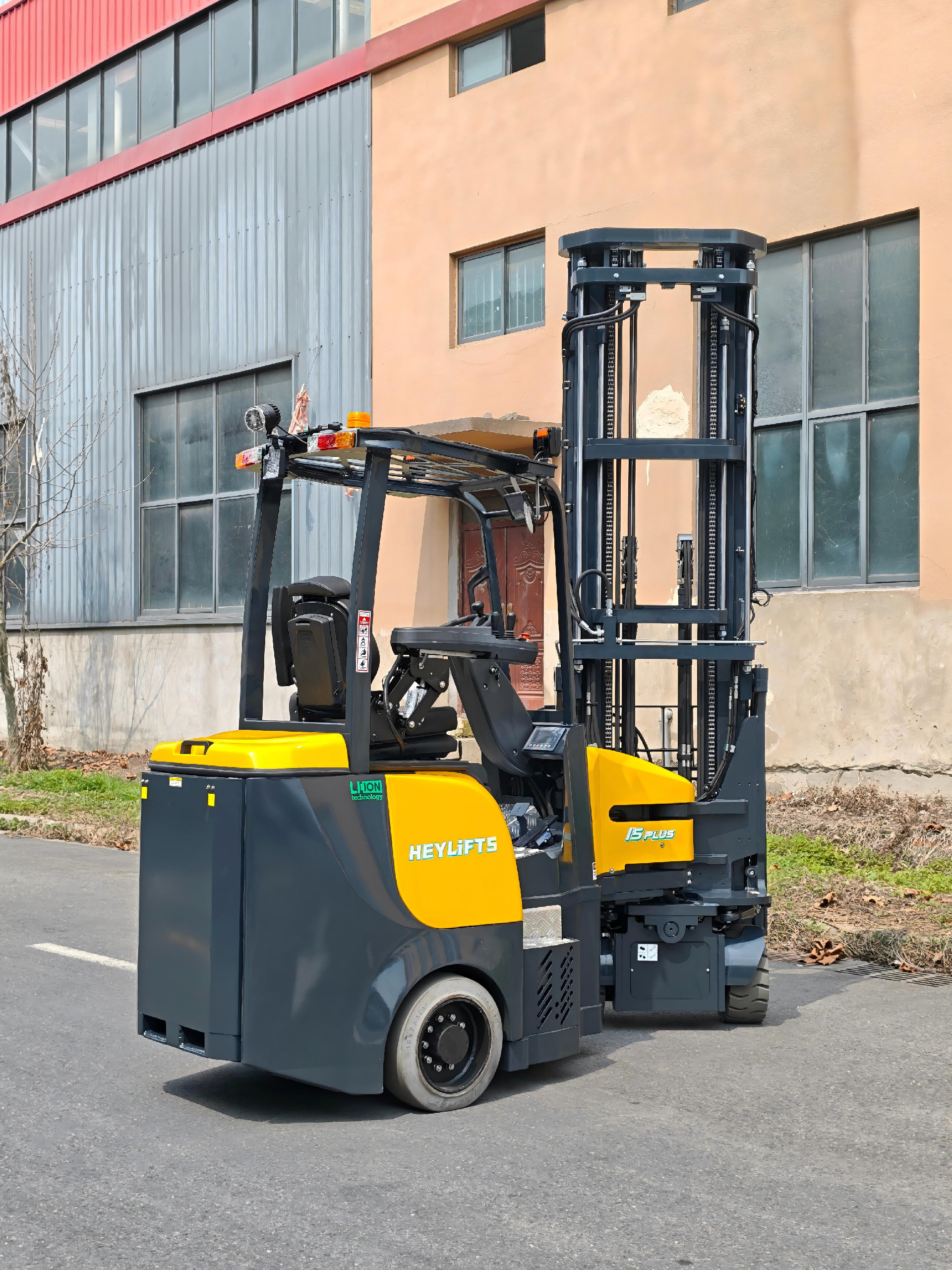

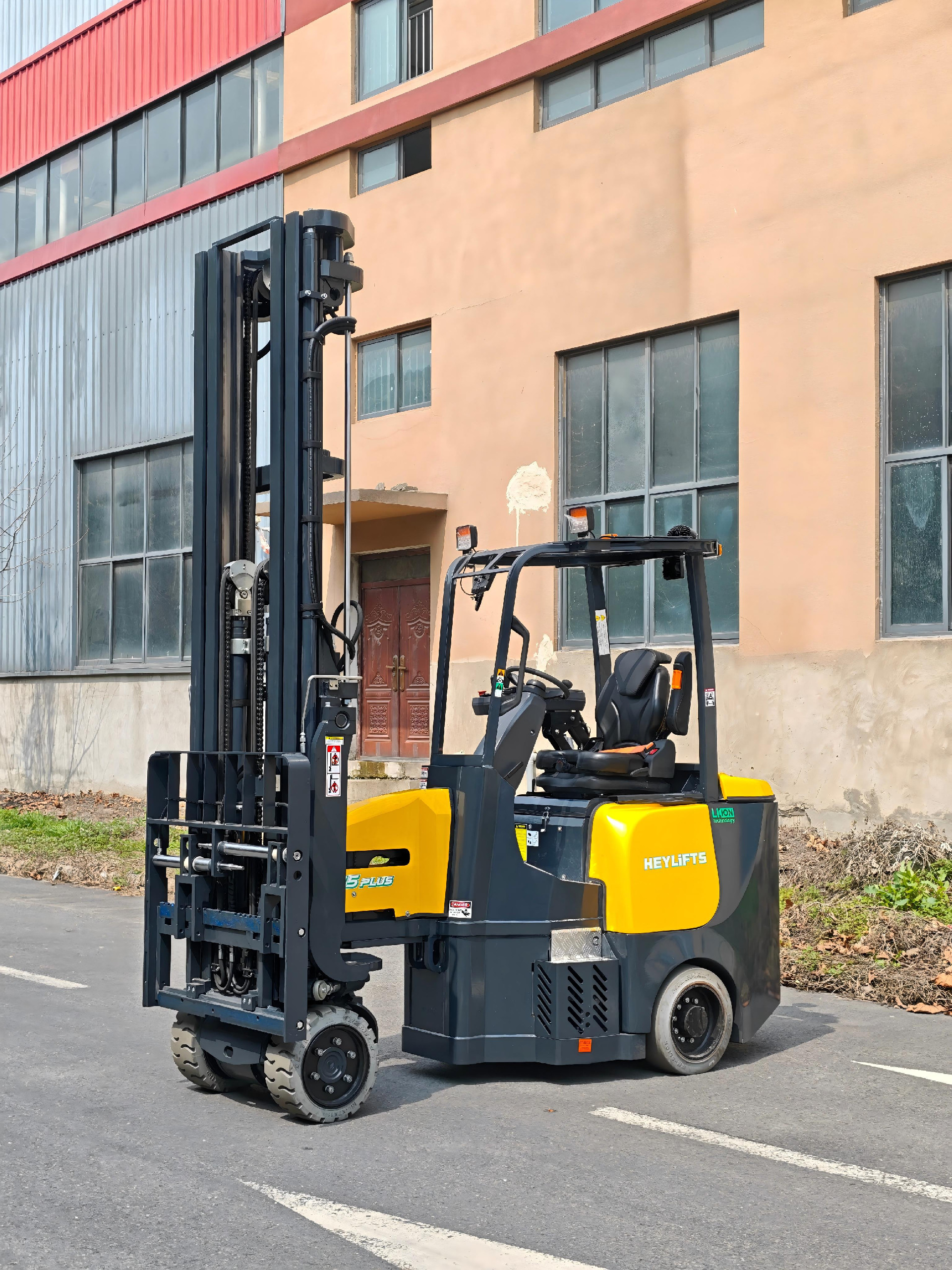

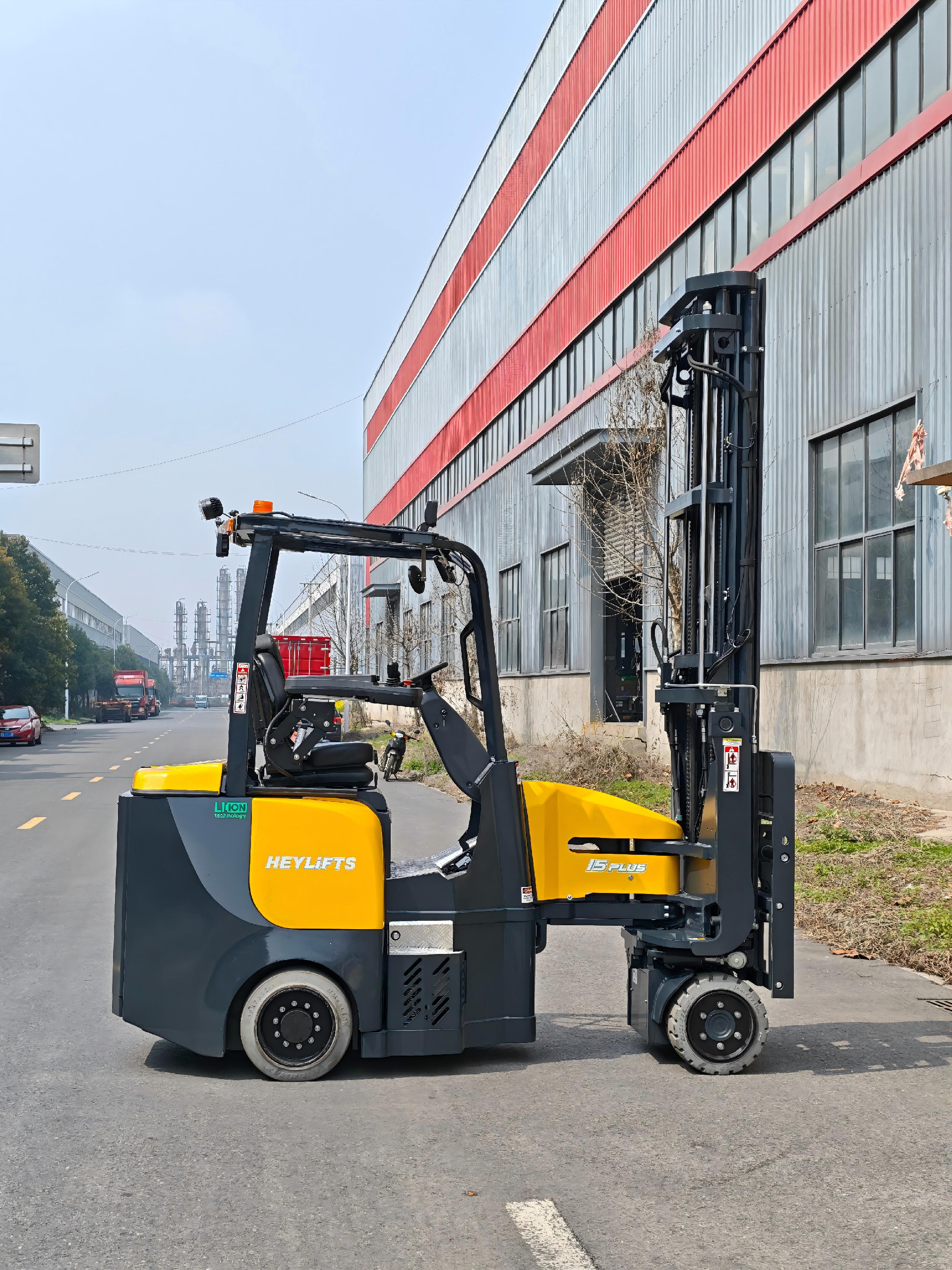

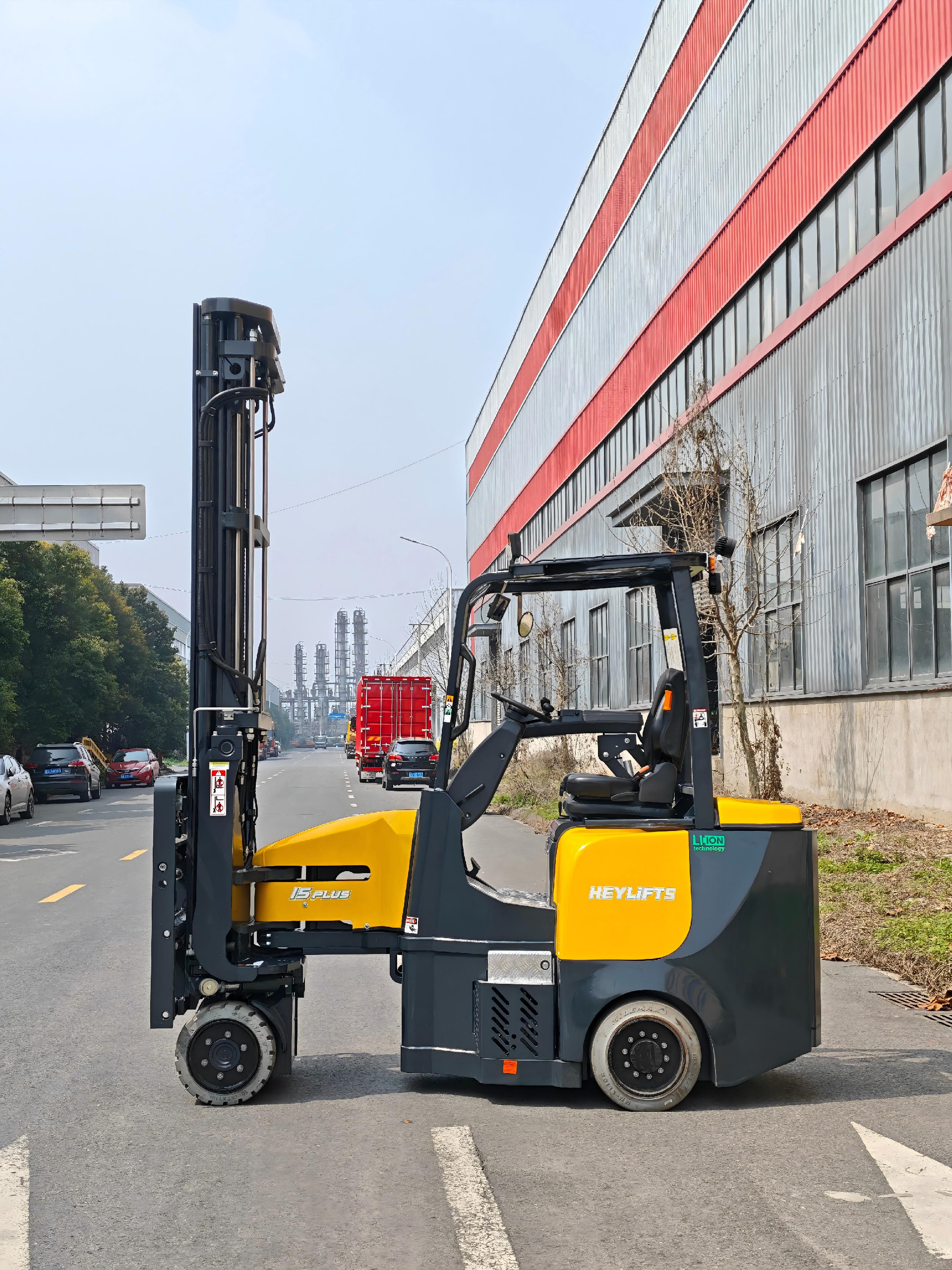

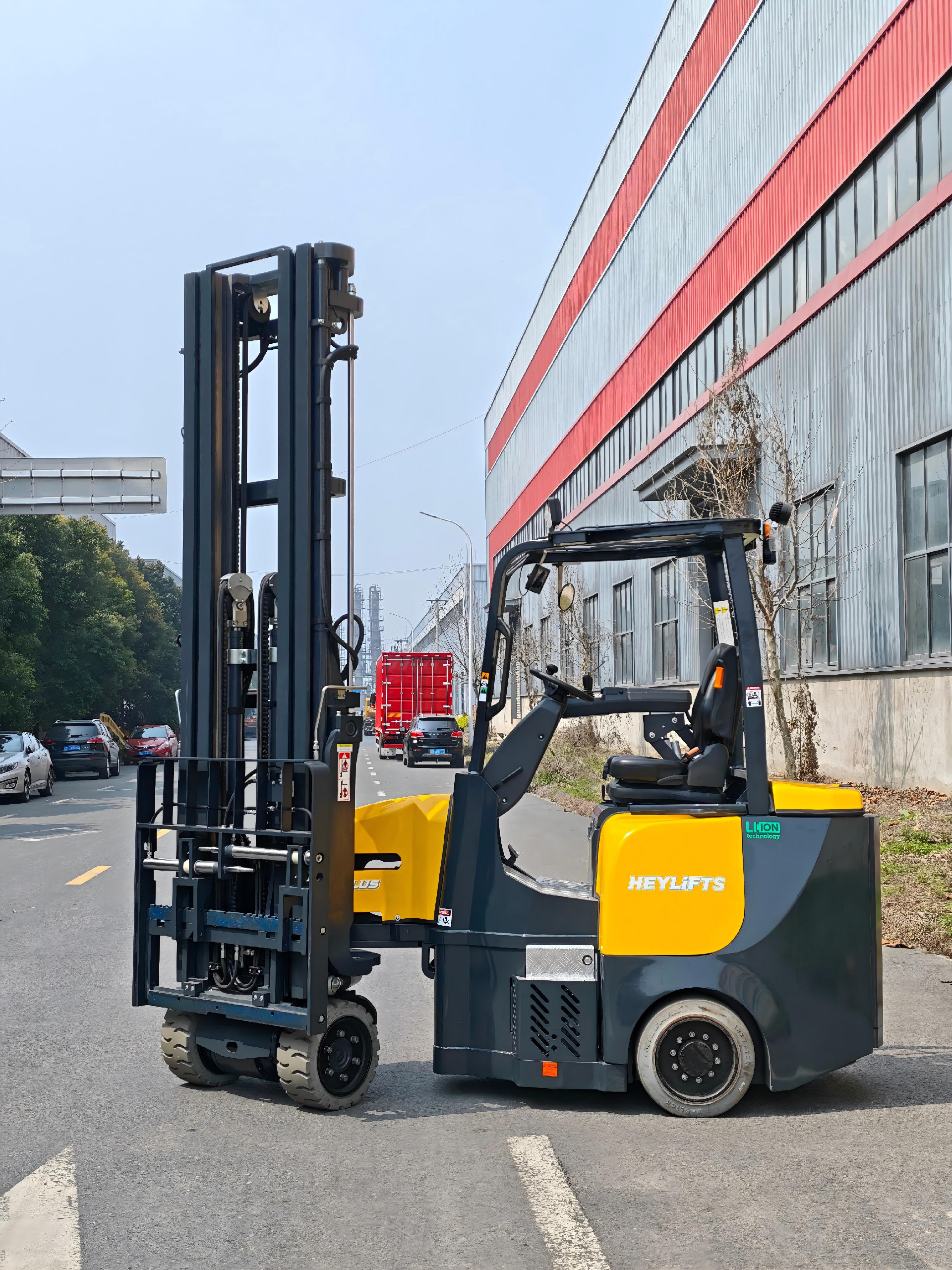

Product Item: Heylifts Narrow Aisle Articulated Forklift Trucks
The Heylifts 15, a high-performance narrow aisle forklift, boasts multiple advantages:
1. Optimal Space Utilization: Equipped with 220° articulated steering and an ultra-narrow 1060mm body,
it can operate flexibly in 1.9m aisles, significantly improving warehouse space utilization.
2. High-Rack Storage: With an 8-meter lifting capacity, it adapts to multi-level high-bay racks.
Utilizing a high-strength manganese steel mast, the 8-meter high-lift forklift operates smoothly and without swaying under heavy loads.
3. Powerful Power System: Featuring an 80V AC controller, it provides smooth power delivery and rapid response, offering 7-12 hours of continuous operation.
2-hour fast charge replenishes 98% of the power, suitable for high-frequency continuous operation.
4. Reliable Quality Assurance:Core components such as the motor, hydraulic pump, controller, and proportional valve are imported from Europe,
making it a high-quality European-imported forklift. It has passed 10,000 heavy-load fatigue tests and comes with a 5-year warranty, ensuring worry-free after-sales service.
5.Lightweight operation and maintenance: The structure is simple and durable, with lower maintenance costs.
It comes standard with an OPS system and laser guidance, which facilitates equipment scheduling and management and reduces ineffective operations.
Advanced Parts and Descriptions | |||
 |  |  |  |

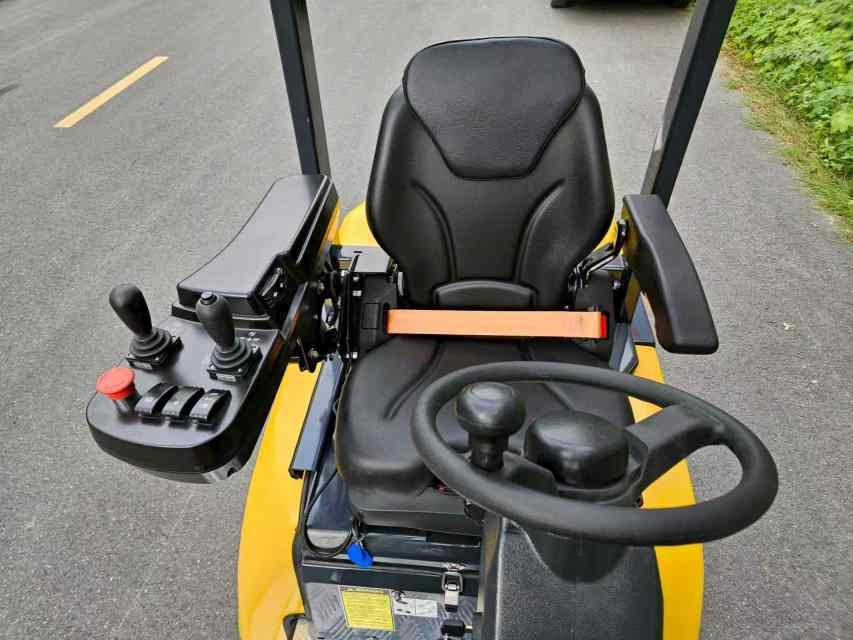

| Fingertip armrest | ZAPI Controller | Proportional valve | Lifting Motor /Driving Motor |
| It integrates a fingertip-controlled armrest together with an electro-proportional valve for smoother operation. | The entire Heylifts VNA articulated forklift series comes standard equipped with an 80V fully AC ZAPI dual-core controller. | Combined with the fingertip control armrest, the electro-hydraulic proportional valve allows for smooth and precise regulation of the mast’s lifting and lowering speed. | Lifting Motor : Fitted with external encoder bearing, easy for maintenance. 80V AC 15kw/h Lifting speed: 0.44/0.5m/s |
| Heylifts VNA forklifts deliver a superior driving experience, along with more flexible and precise operation. | Higher operating voltage results in lower current, reduced heat generation and a decreased failure rate. | ||
| It also features a dedicated order-picking mode, enabling operators to load and unload pallets with ease in narrow aisles. | As a result, all electrical components enjoy an extended service life. | It features flexible side shift and tilt functions, allowing for precise and efficient cargo handling within narrow passageways. | Driving Motor: Fitted with external encoder bearing,easy for maintenance 80V AC 19.5kw/h Driving speed: 16km/h Gradeability: 18%/20% |
| Boasting superior inching performance, Heylifts articulated forklifts are ideally suited for high-intensity operations. | |||
| Advanced Parts and Descriptions | |||
|  |
|  |

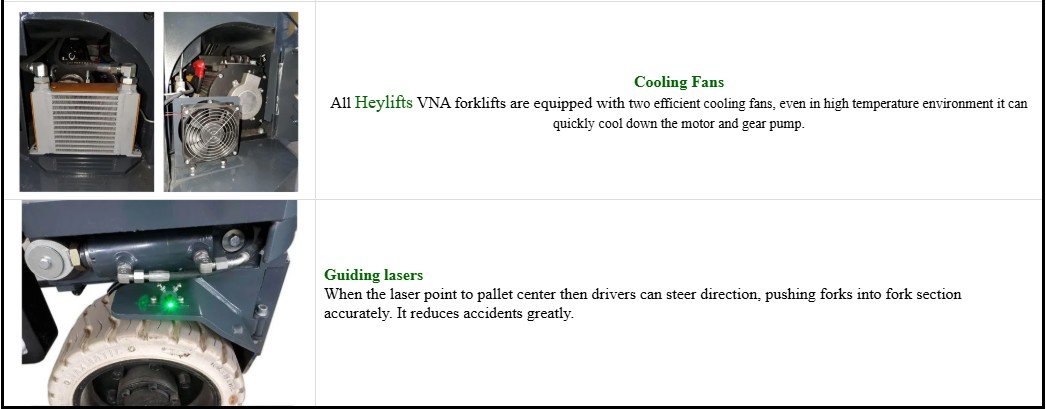

| Cooling Fans | Adjustable Suspension Seat | Guiding lasers | Cooling Fans |
Every Heylifts VNA forklift is fitted with dual high-efficiency cooling fans, which deliver rapid cooling for the motor and gear pump even under high-temperature working conditions. | The operator’s seat is integrated with an advanced OPS safety system, ensuring safer operation and reducing potential risks effectively. | The laser positioning system assists operators in aligning with pallet centers, allowing accurate fork insertion while effectively reducing operational risks. | The steering motor drives the large gear ring via a precision pinion gear, delivering enhanced operational efficiency and extended service life. |
| Featuring an ergonomically designed safety belt, it guarantees a secure and comfortable fit for enhanced safety. | Minimal gear clearance delivers exceptional structural stability and effectively lowers the risk of malfunctions. | ||
| Offers high adaptability to diverse working conditions and operator requirements. | 10 years warranty for the gear. | ||
Configurations
| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |

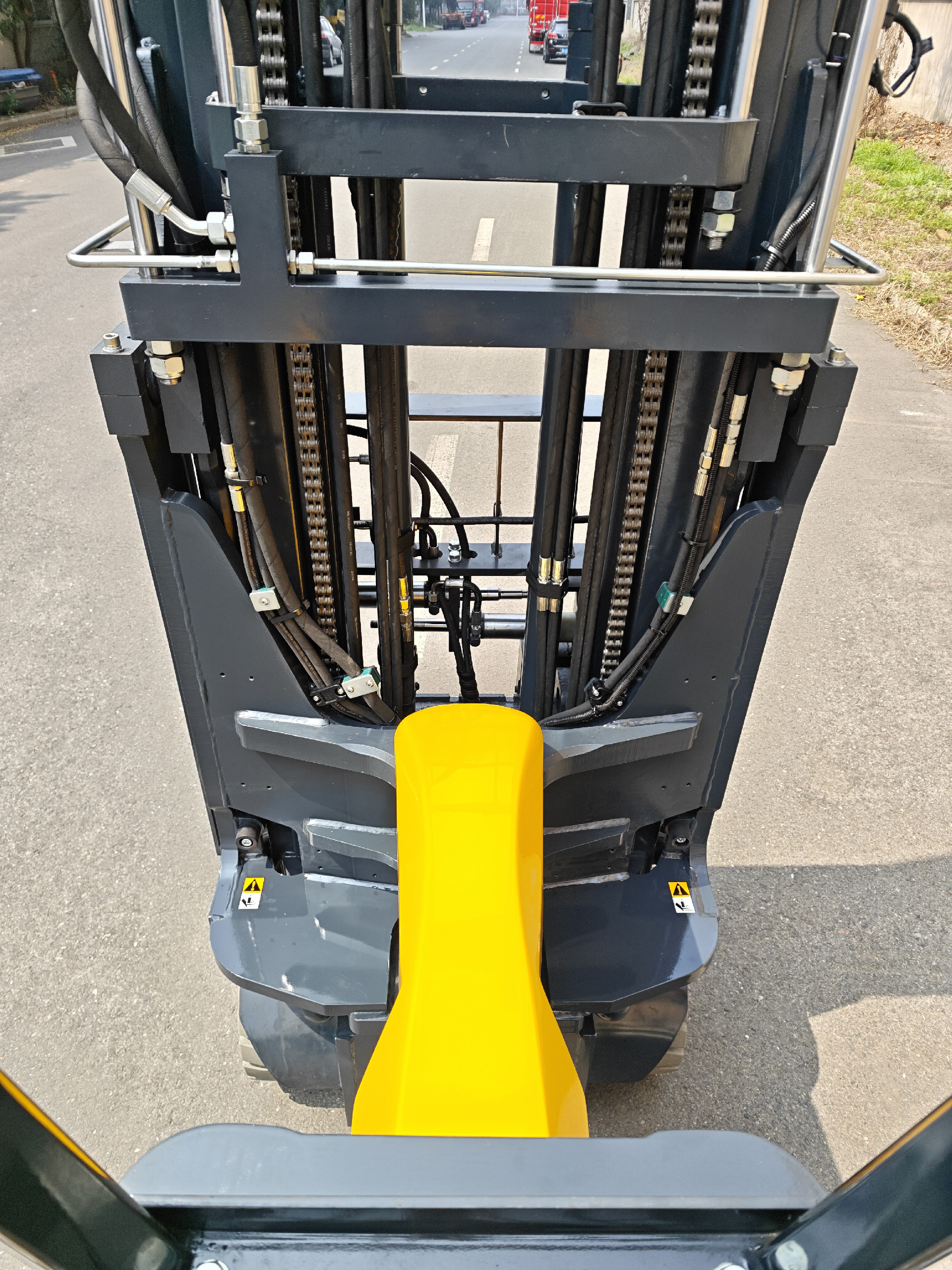

| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |
| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts 15 |
| Capacity | KG | 2000 |
| Mast lift height | MM | 4300-10050 |
| Mast free lift height | MM | 1365-3235 |
| Mast closed height | MM | 2265-4615 |
| Mast full extended height | MM | 5561-10050 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1060 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 413x178 |
| Rear tyre size | MM | 457x178 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 6400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1900 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 10050mm
Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1800mm
The full range of the articulating narrow aisle forklift trucks:

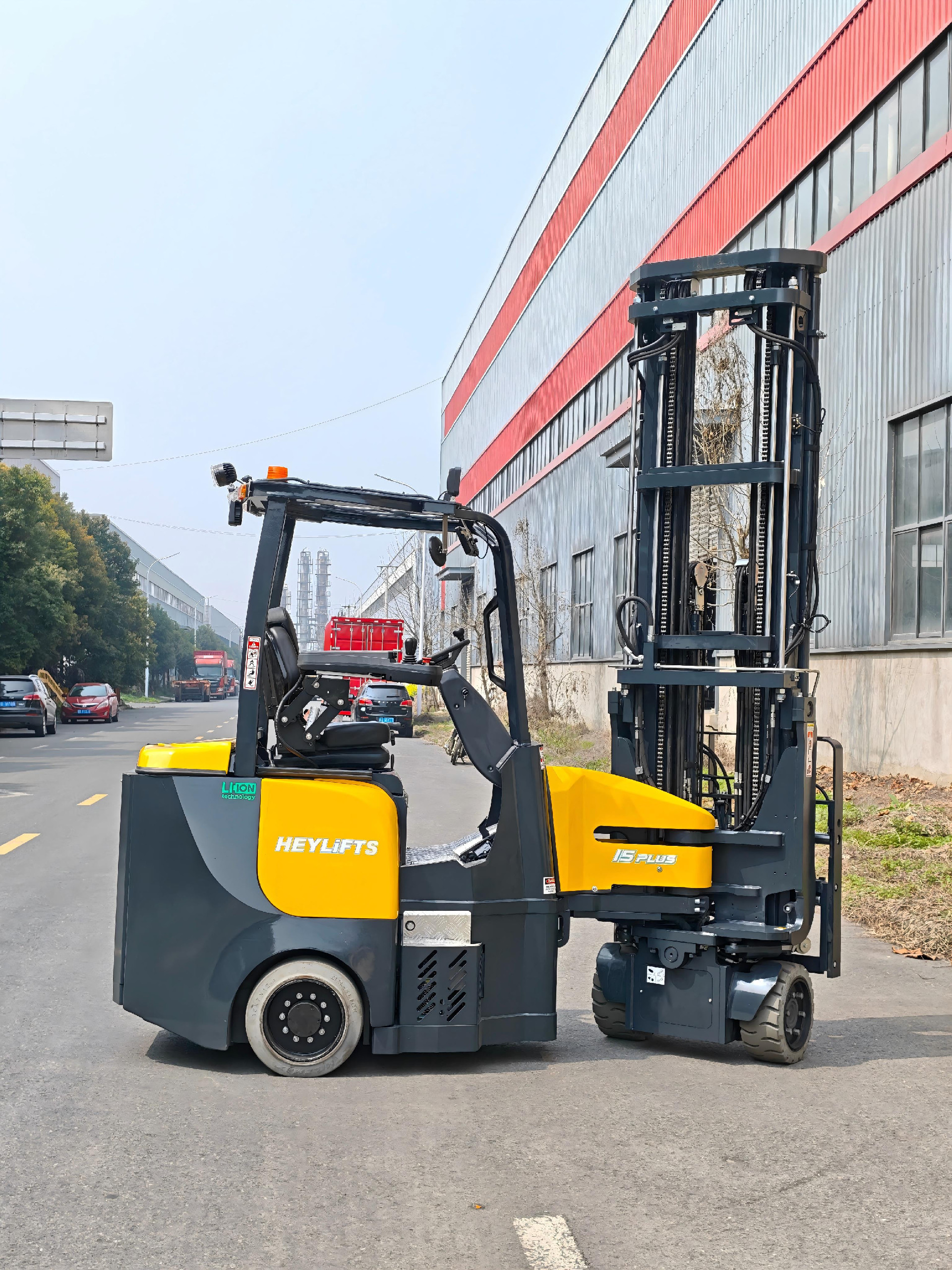

Heylifts15 rated capacity 1500KG, lift height 4300mm -8050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
