Product Description

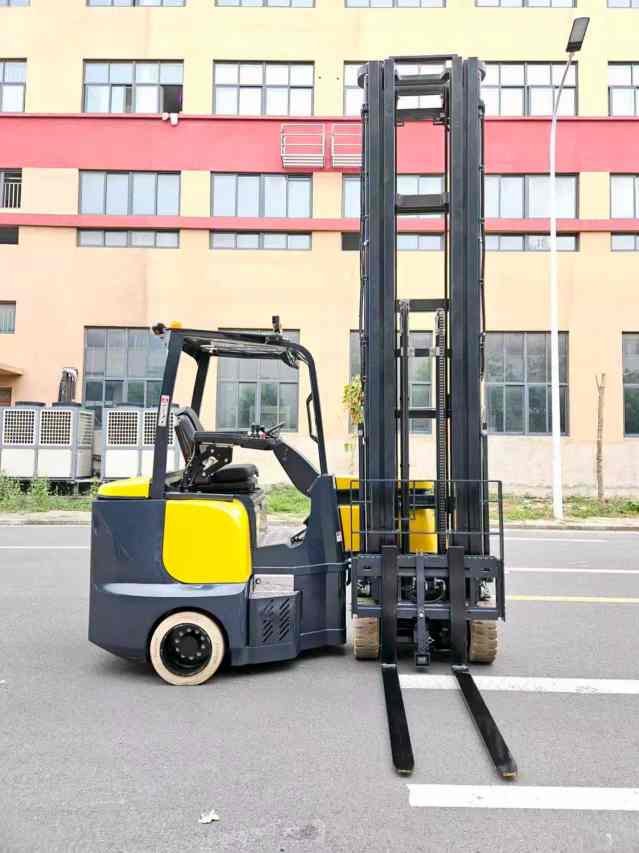

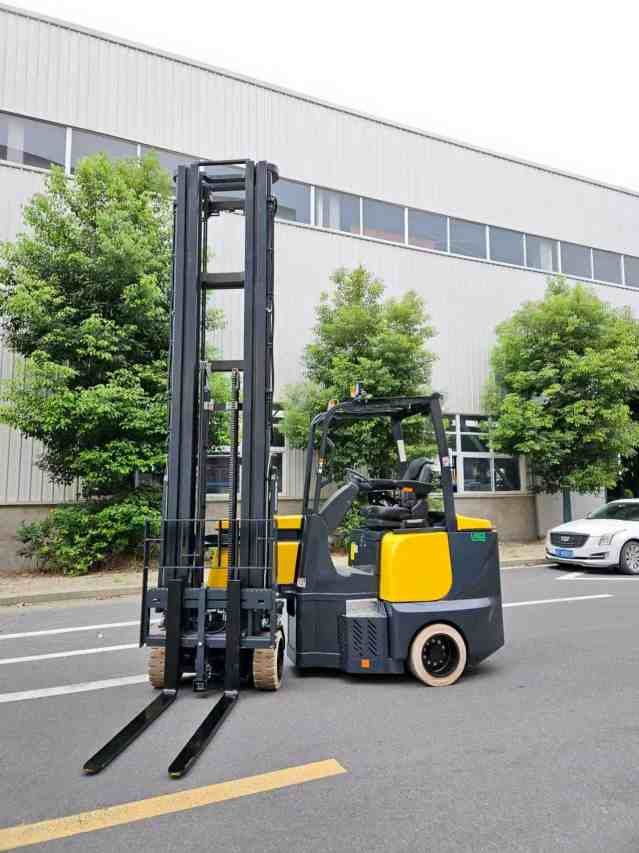

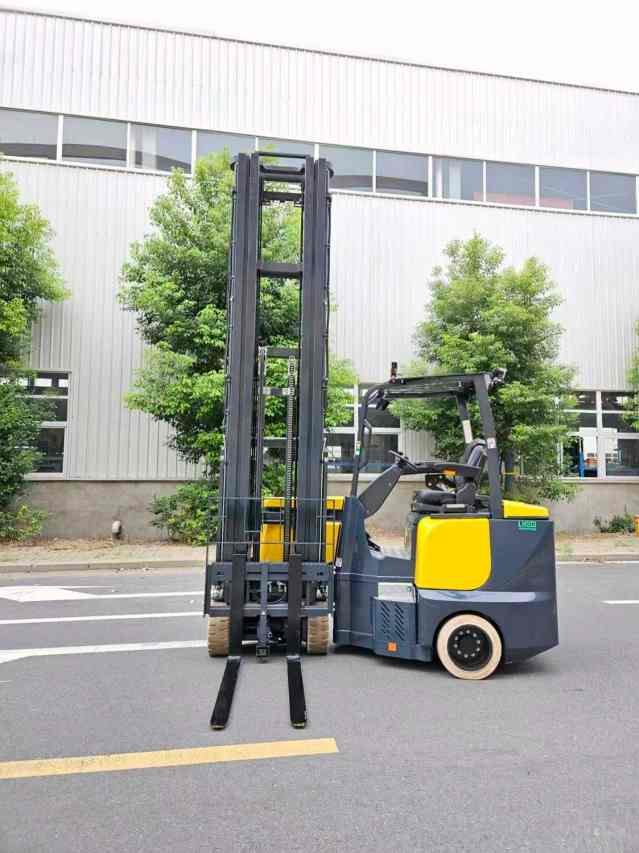

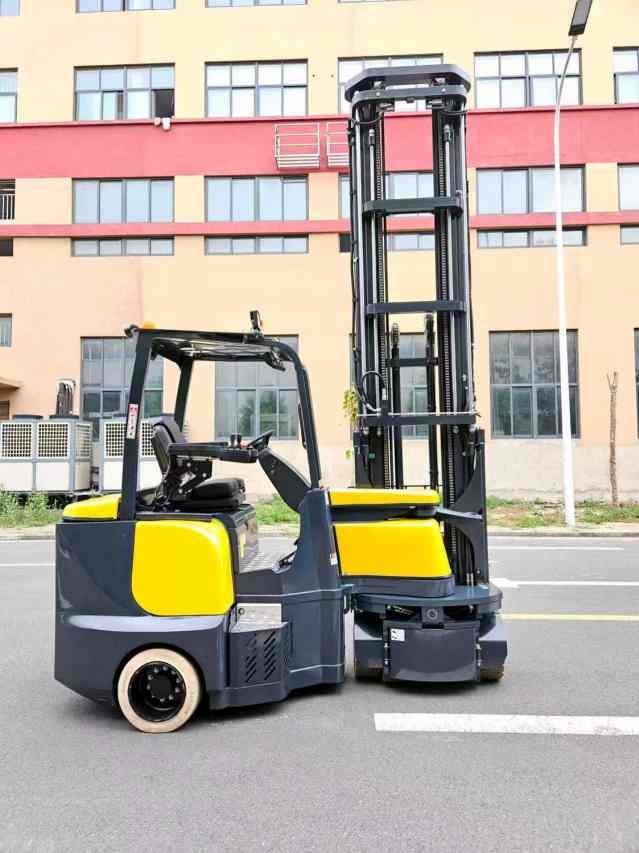

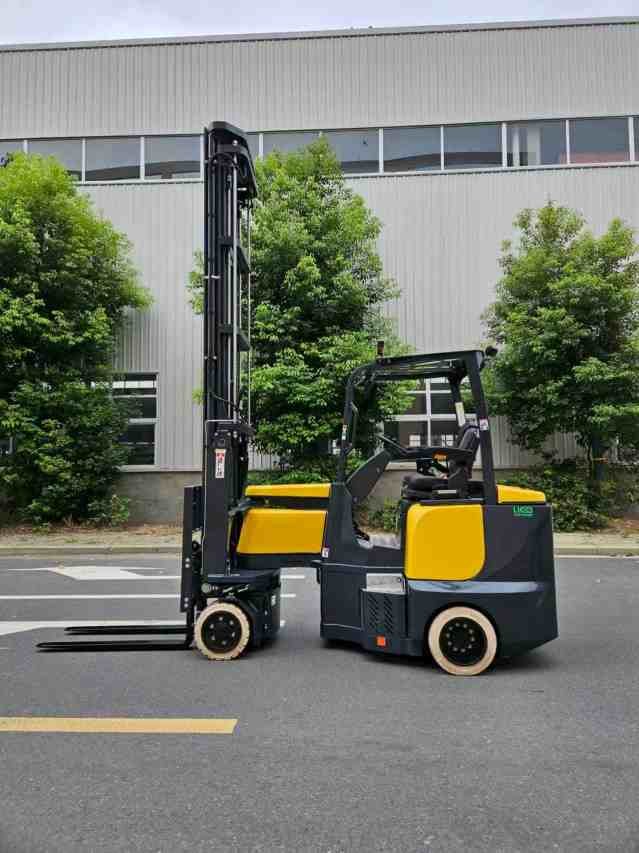

The Heylifts 2.5t Electric Narrow Aisle Forklift is an innovative articulated solution that optimizes cost, space and productivity for material handling operations.
It addresses key warehouse pain points with versatile, reliable performance.
Built for heavy-duty use indoors and outdoors, it adapts to all floor surfaces and eliminates double handling,
moving pallets directly from lorries to racks in one step—streamlining workflow and reducing labor and damage risks.
Its standout space efficiency delivers 30% more pallet positions than reach trucks and 50% more than counterbalance forklifts,
helping businesses cut expansion costs and increase inventory capacity without losing flexibility.
Standard-equipped with an 80V AC ZAPI dual-core controller (lower failure rates, less heat), 80V AC motors, and 80V 400ah-600ah lead-acid/li-ion batteries,
it offers strong power, high efficiency and minimal maintenance costs.
This forklift is a cost-effective game-changer, helping users streamline processes, boost productivity and achieve long-term savings while maintaining rugged durability for daily heavy use.
Configurations

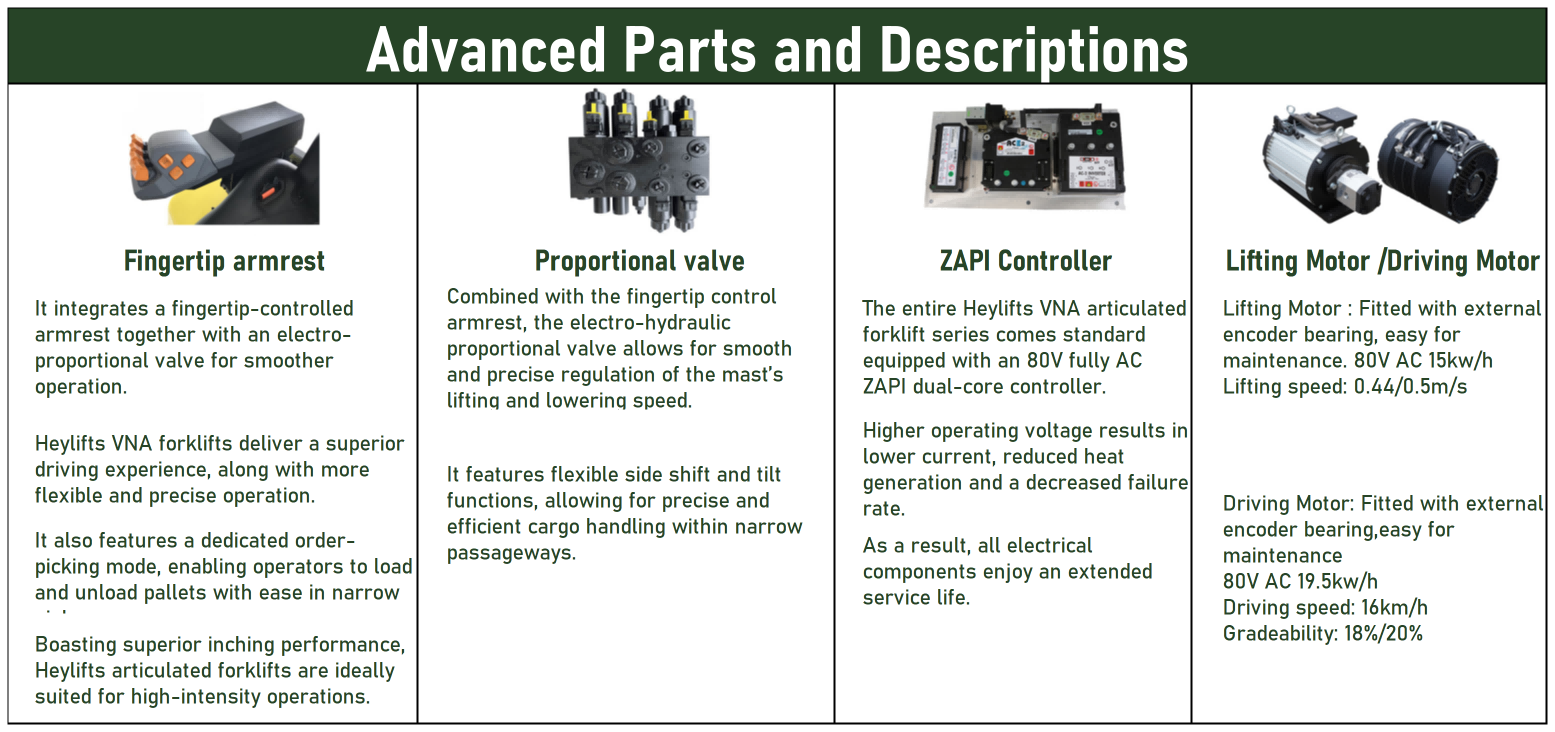

| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |

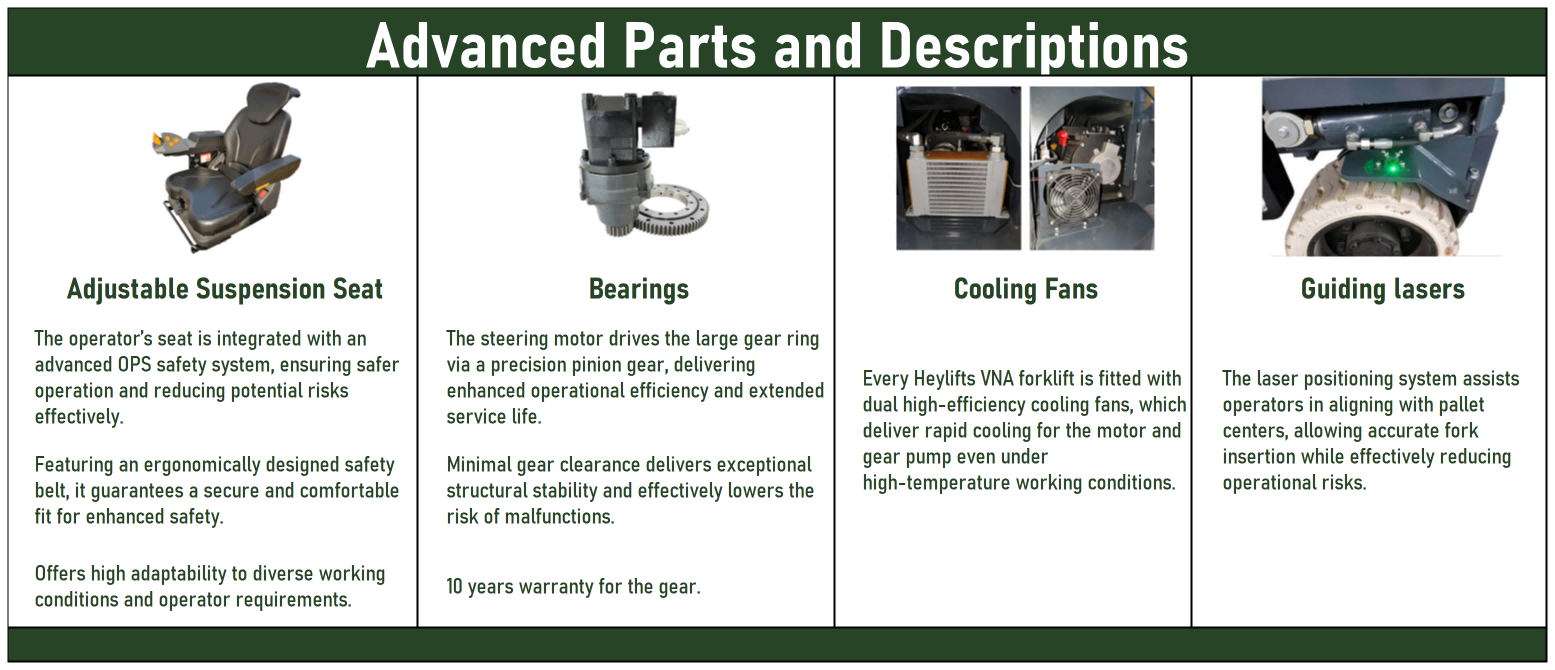

| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts25 |
| Capacity | KG | 2500 |
| Mast lift height | MM | 4300-12400 |
| Mast free lift height | MM | 1365-4686 |
| Mast closed height | MM | 2265-5665 |
| Mast full extended height | MM | 5561-13739 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1400 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x170 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 7400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1900 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 12400mm

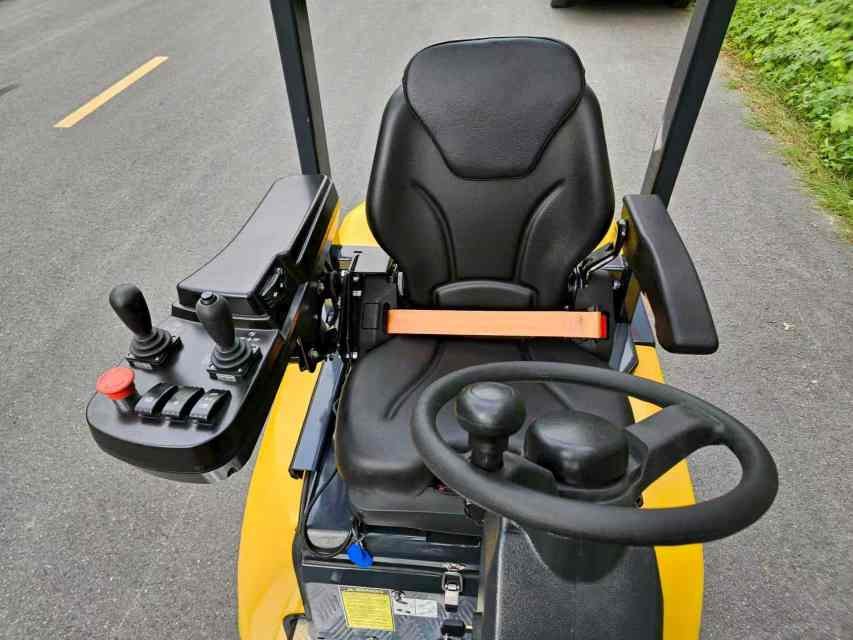

Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1900mm
The full range of the articulating narrow aisle forklift trucks:
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
