Product Description

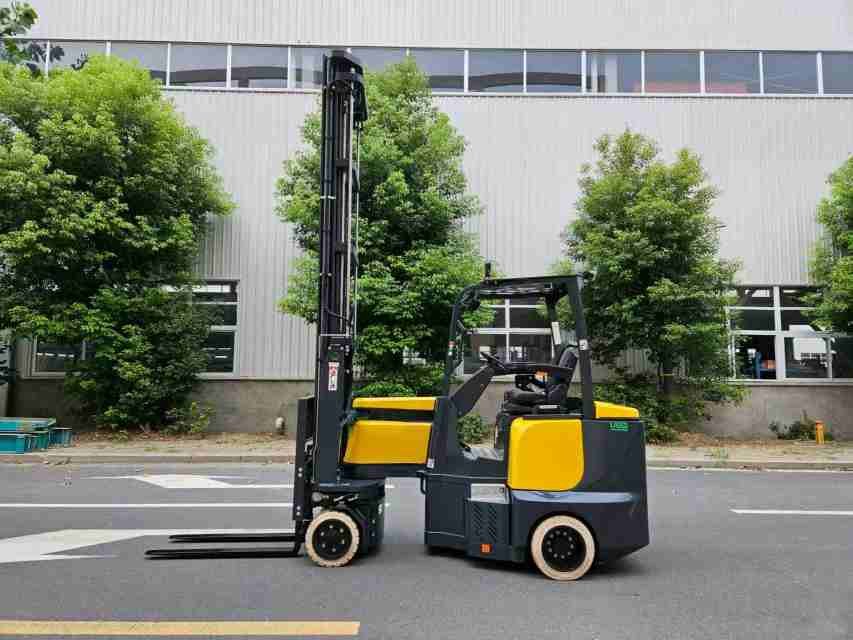

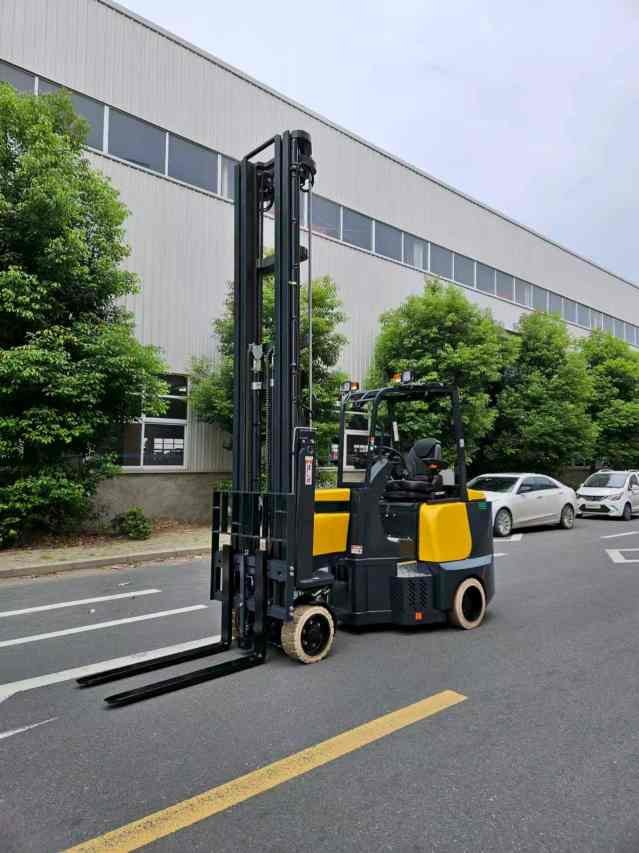

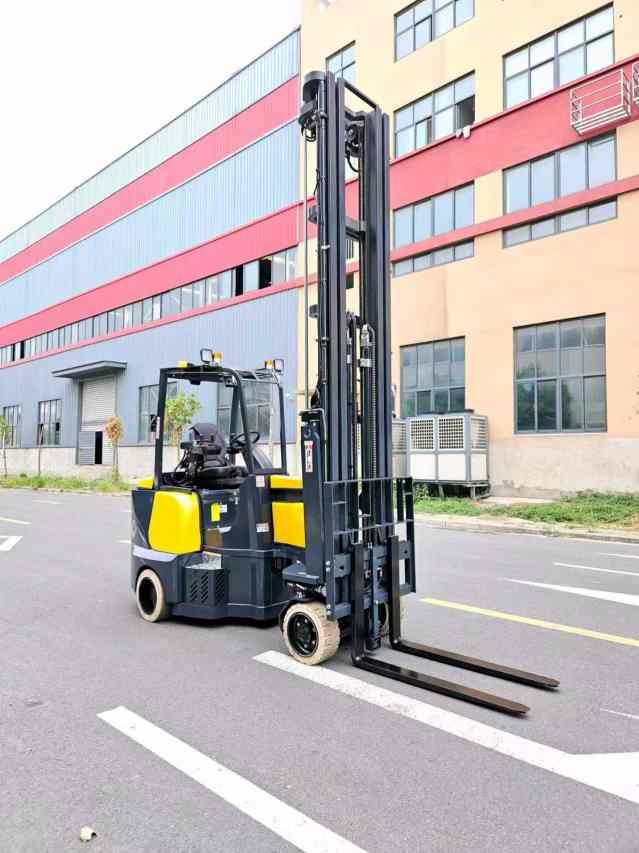

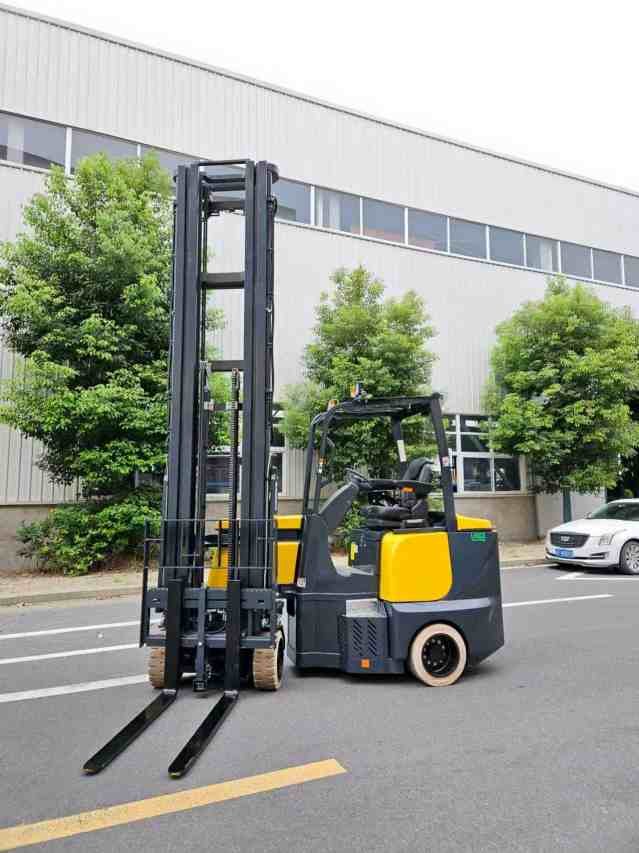

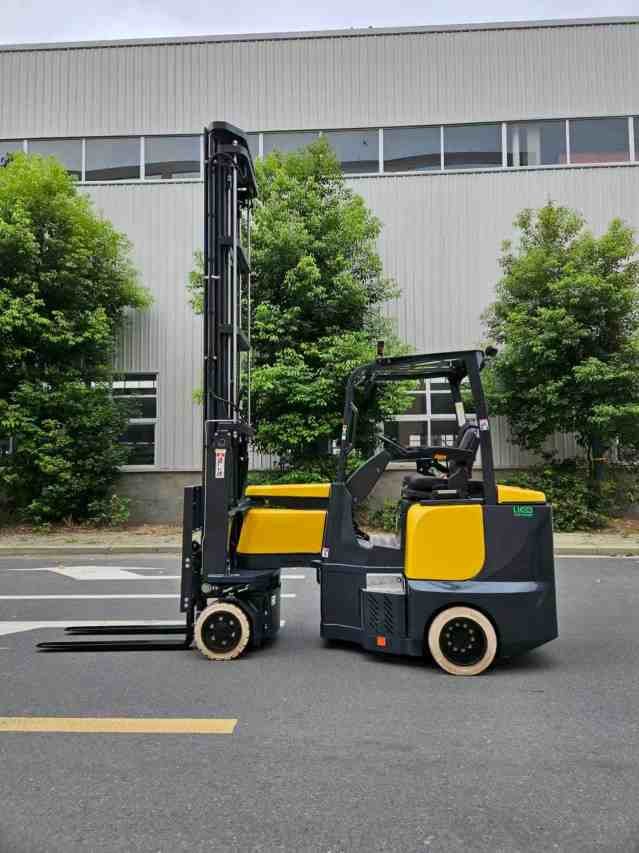

Product Item: Heylifts 2000KG Electric Narrow Aisle Articulated Forklift Trucks
The Heylifts 20, a high-performance narrow aisle forklift, boasts multiple advantages:
1. Optimal Space Utilization: Equipped with 220° articulated steering and an ultra-narrow 1060mm body,
it can operate flexibly in 1.9m aisles, significantly improving warehouse space utilization.
2. High-Rack Storage: With an 8-meter lifting capacity, it adapts to multi-level high-bay racks.
Utilizing a high-strength manganese steel mast, the 8-meter high-lift forklift operates smoothly and without swaying under heavy loads.
3. Powerful Power System: Featuring an 80V AC controller, it provides smooth power delivery and rapid response, offering 7-12 hours of continuous operation.
2-hour fast charge replenishes 98% of the power, suitable for high-frequency continuous operation.
4. Reliable Quality Assurance:Core components such as the motor, hydraulic pump, controller, and proportional valve are imported from Europe,
making it a high-quality European-imported forklift. It has passed 10,000 heavy-load fatigue tests and comes with a 5-year warranty, ensuring worry-free after-sales service.
5.Lightweight operation and maintenance: The structure is simple and durable, with lower maintenance costs.
It comes standard with an OPS system and laser guidance, which facilitates equipment scheduling and management and reduces ineffective operations.

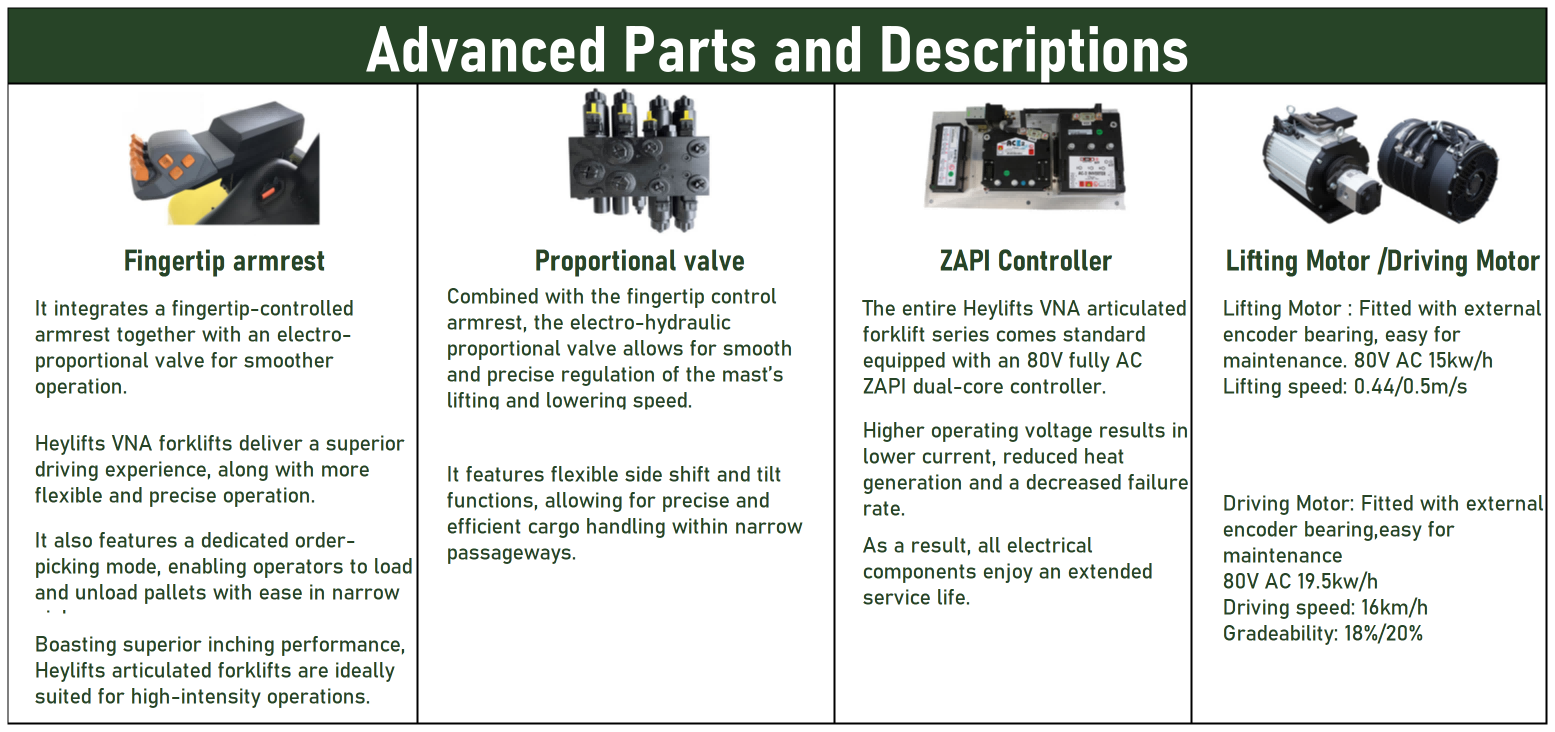

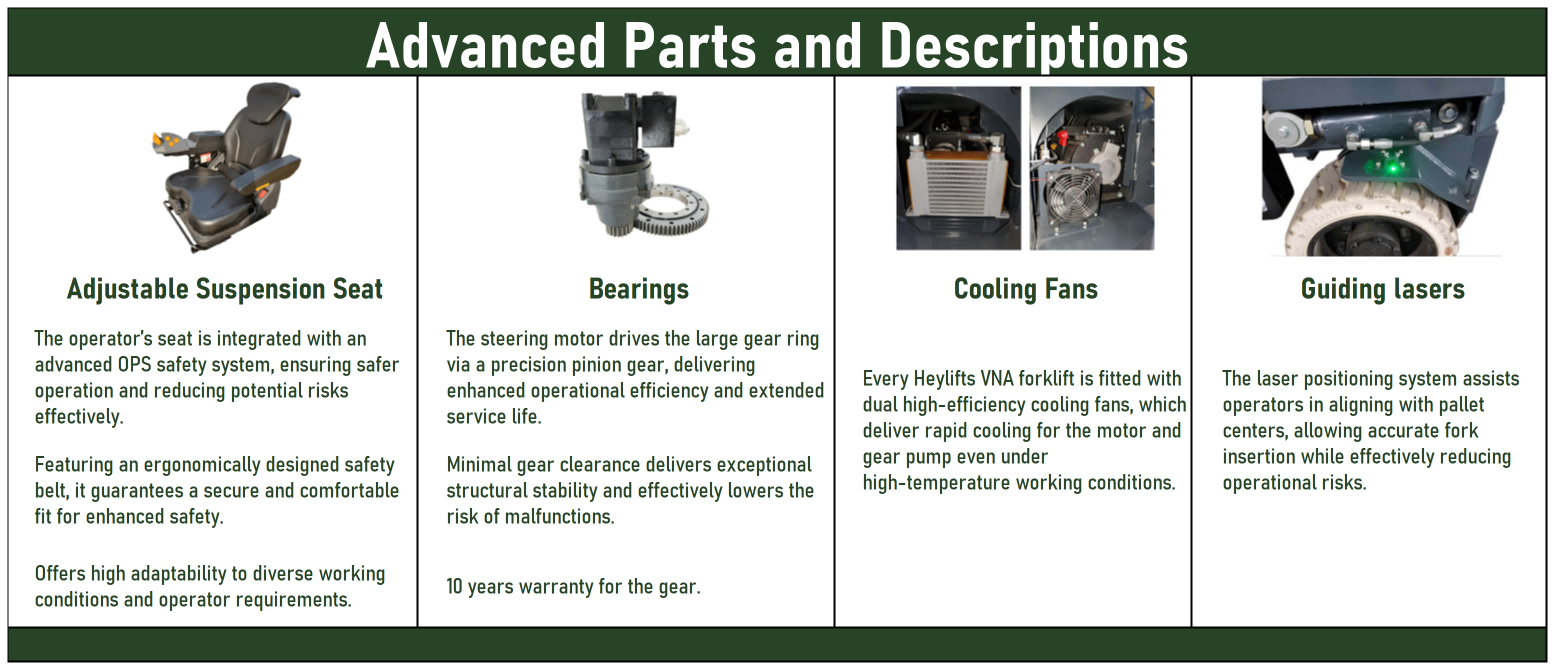

Configurations
| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |
| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts20 |
| Capacity | KG | 2000 |
| Mast lift height | MM | 4300-10050 |
| Mast free lift height | MM | 1365-3635 |
| Mast closed height | MM | 2265-4615 |
| Mast full extended height | MM | 5561-11313 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1220 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x150 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 6900 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1800 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 10050mm

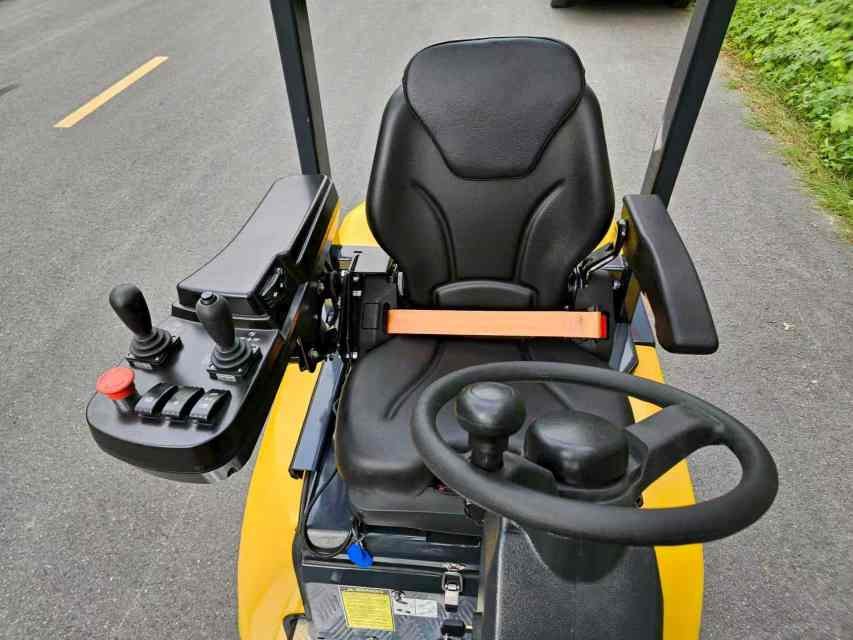

Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1800mm
The full range of the articulating narrow aisle forklift trucks:
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
