Product Description

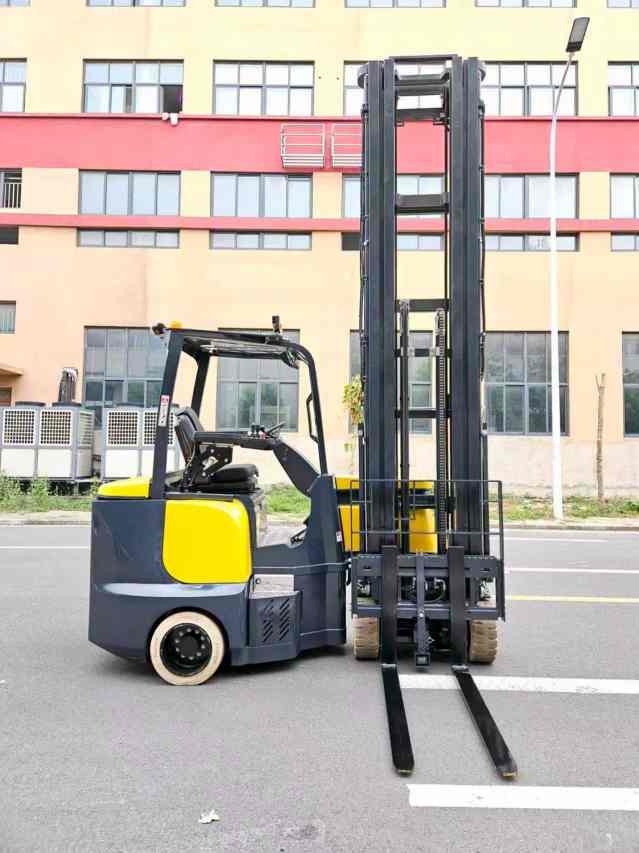

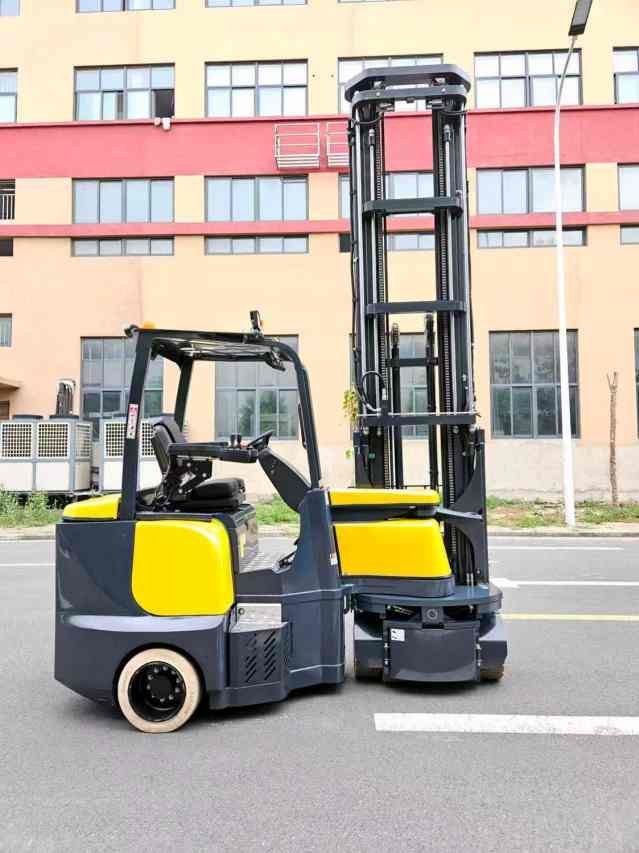

2.5t Electric Articulated Forklift – Optimized for Ultra-Narrow Aisle Warehousing
This 2.5-tonne electric articulated forklift is specially engineered with an articulated front mast structure, making it a highly efficient solution for tight warehouse environments.
Thanks to its compact and flexible articulated design, the forklift can smoothly travel and operate in warehouse aisles as narrow as 1800 mm, greatly improving space utilization.
Unlike standard reach trucks, turret forklifts and swing-reach trucks, this intelligent VNA forklift helps warehouses create more pallet storage positions by minimizing required aisle width.
As a battery-driven narrow aisle handling vehicle, it delivers a lower total operating cost, while maximizing storage capacity and work productivity for all users.
Built for heavy-duty daily operation, this forklift performs stably both indoors and outdoors, and adapts to various ground conditions. It eliminates unnecessary secondary handling,
allowing direct pallet transportation from trucks to storage racks in one efficient workflow.
In terms of storage efficiency, this model provides up to 30% more pallet positions than traditional reach trucks, and up to 50% more than standard counterbalance forklifts.
This outstanding performance allows users to save valuable time, storage space and long-term operational costs.
The entire product range is equipped with an 80V fully AC ZAPI dual-core controller as standard. This advanced control system ensures outstanding stability, lowers failure rates,
and reduces heat generation even during long working hours.
Powered by 80V AC drive and lifting motors, paired with an 80V 400Ah–600Ah lead-acid or lithium-ion battery, the forklift offers strong and consistent power output, boosts working efficiency,
and significantly reduces maintenance expenses.
Configurations

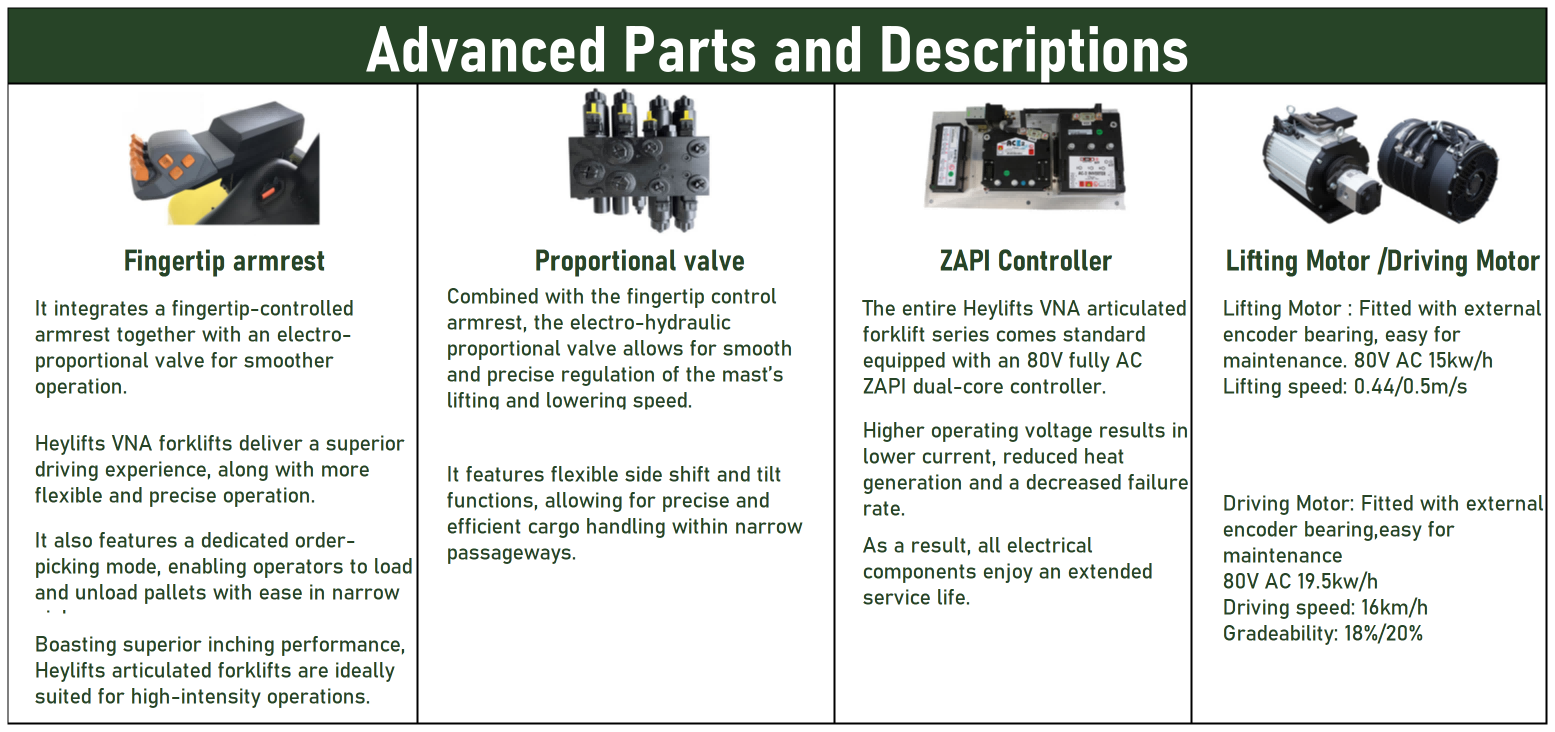

| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |

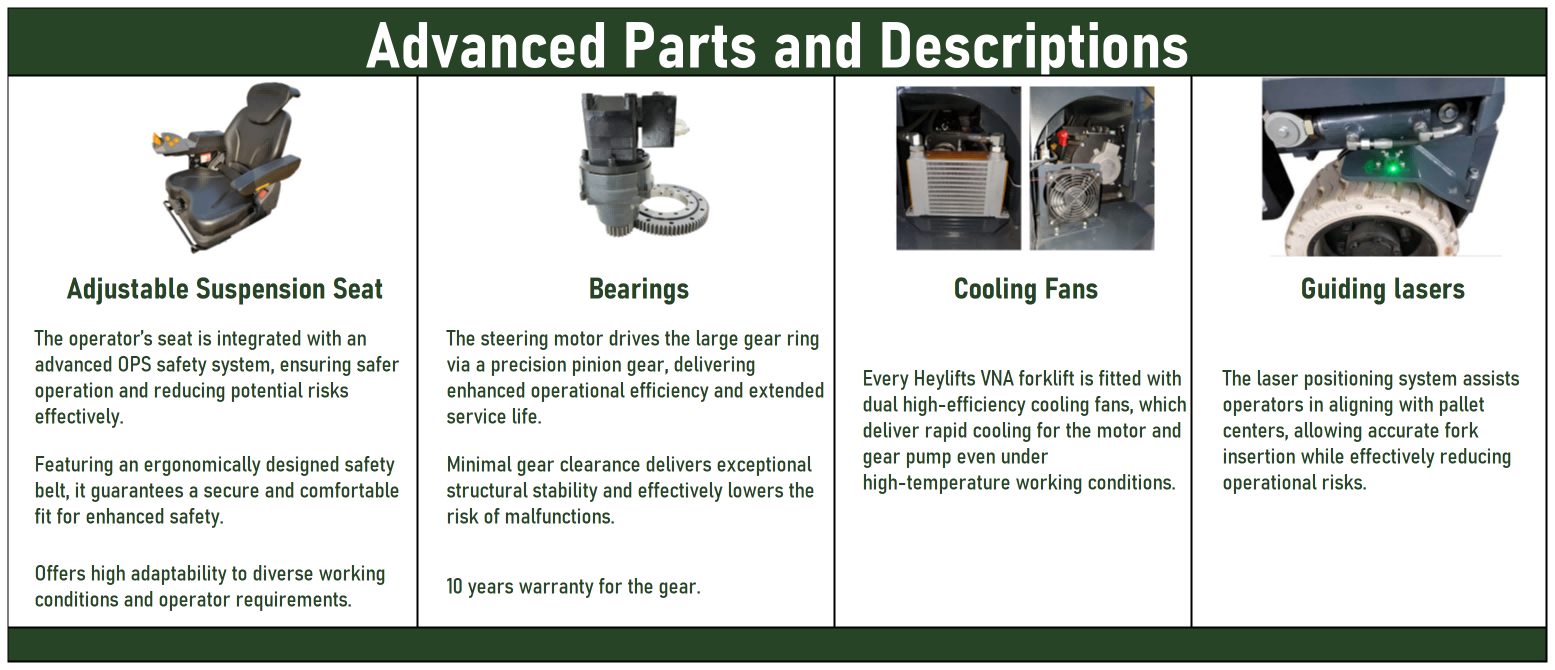

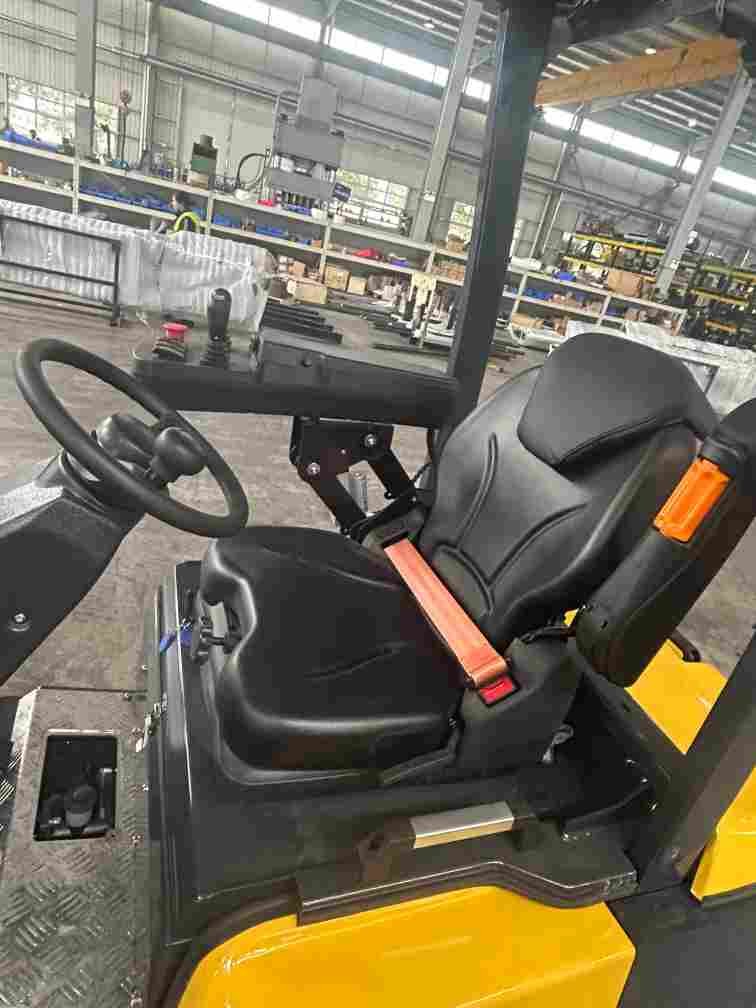

| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts25 |
| Capacity | KG | 2500 |
| Mast lift height | MM | 4300-12400 |
| Mast free lift height | MM | 1365-4686 |
| Mast closed height | MM | 2265-5665 |
| Mast full extended height | MM | 5561-13739 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1400 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |

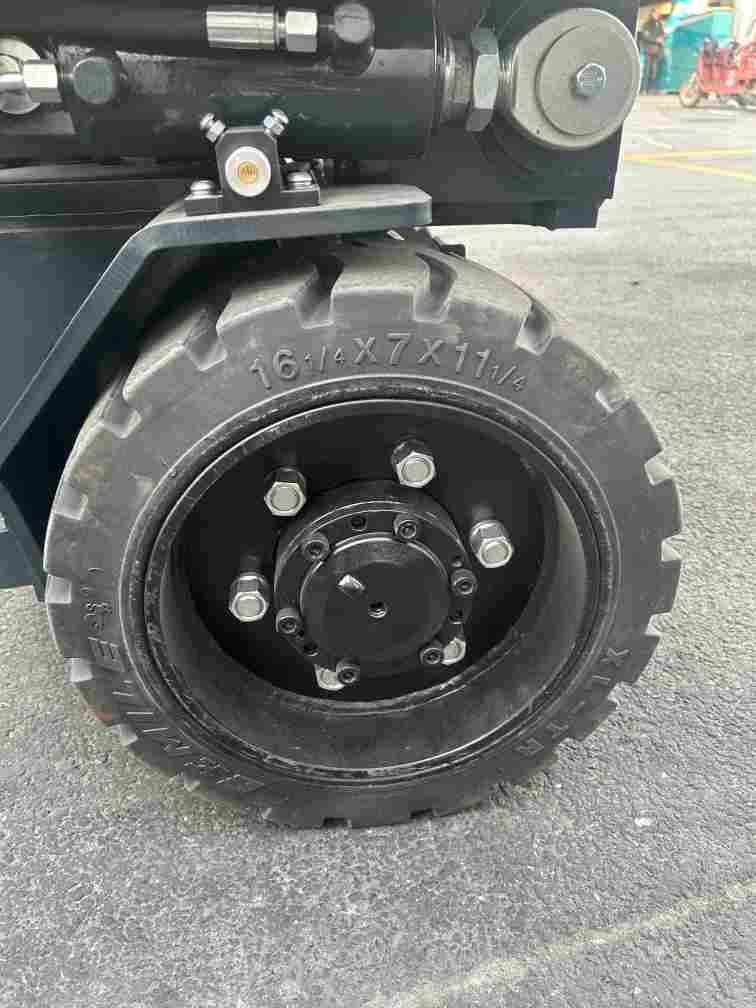

| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x170 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 7400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1900 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity

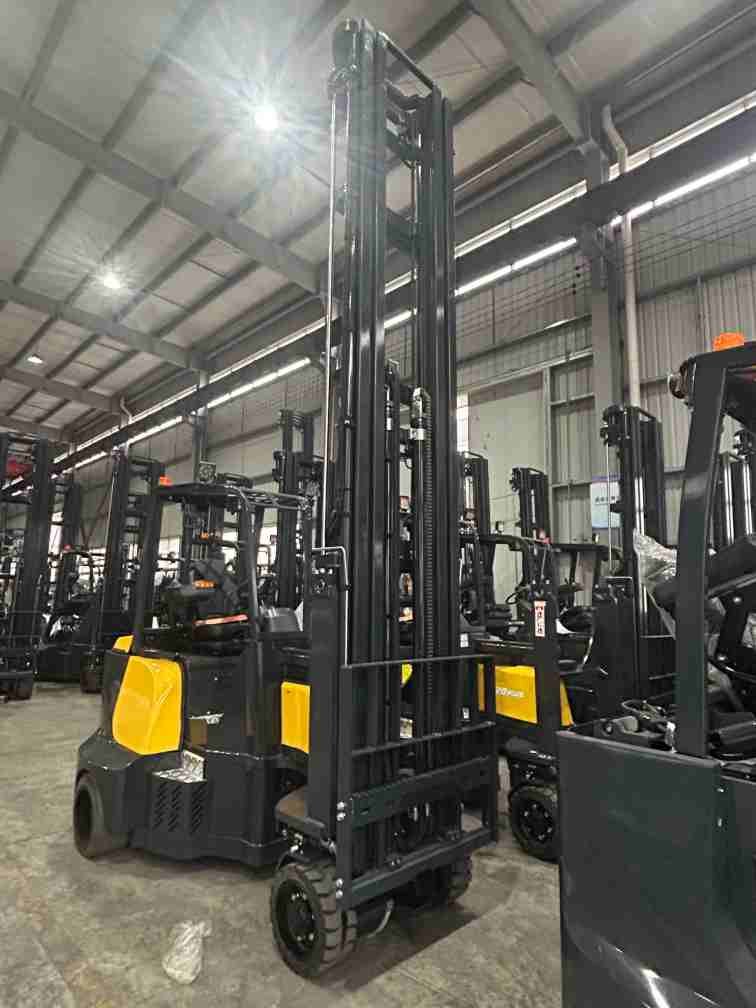

Lift Up To 12400mm

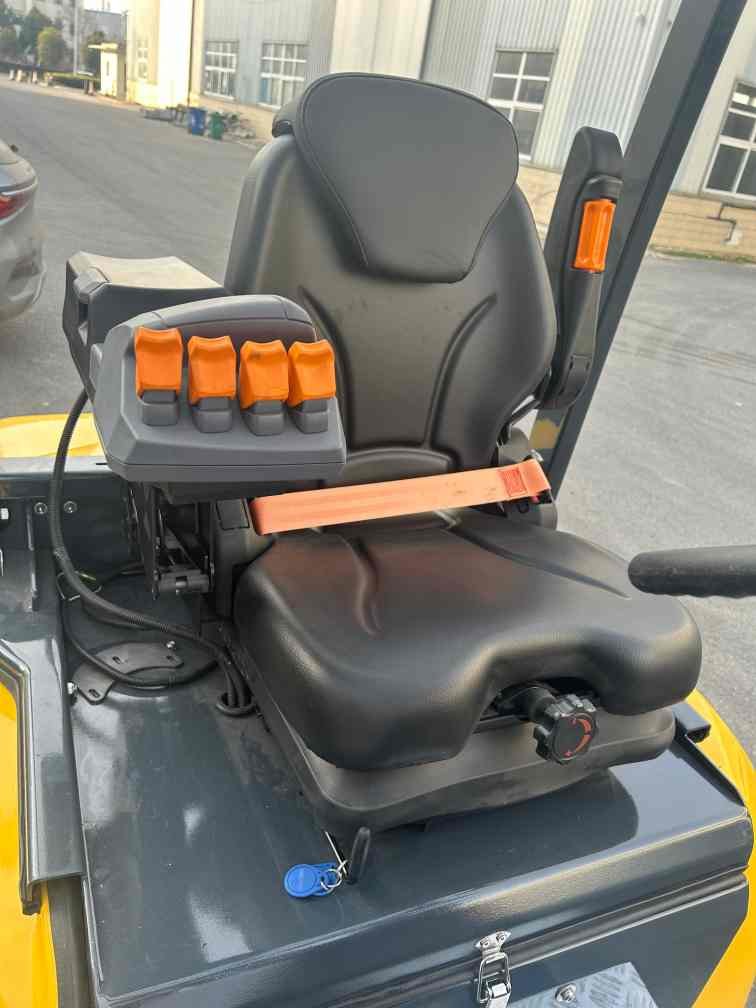

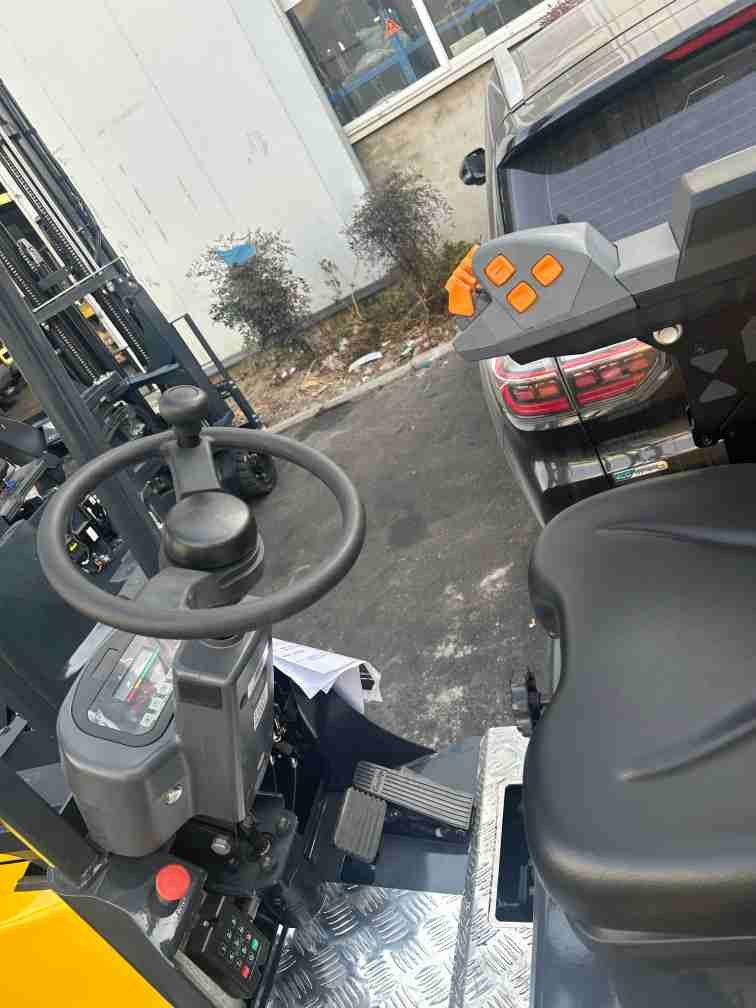

Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1900mm
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
