Product Description

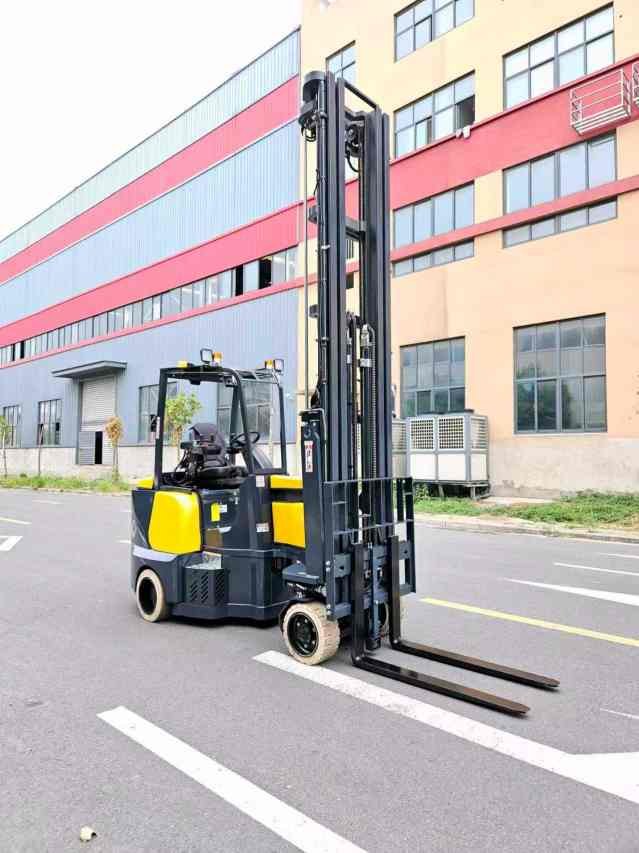

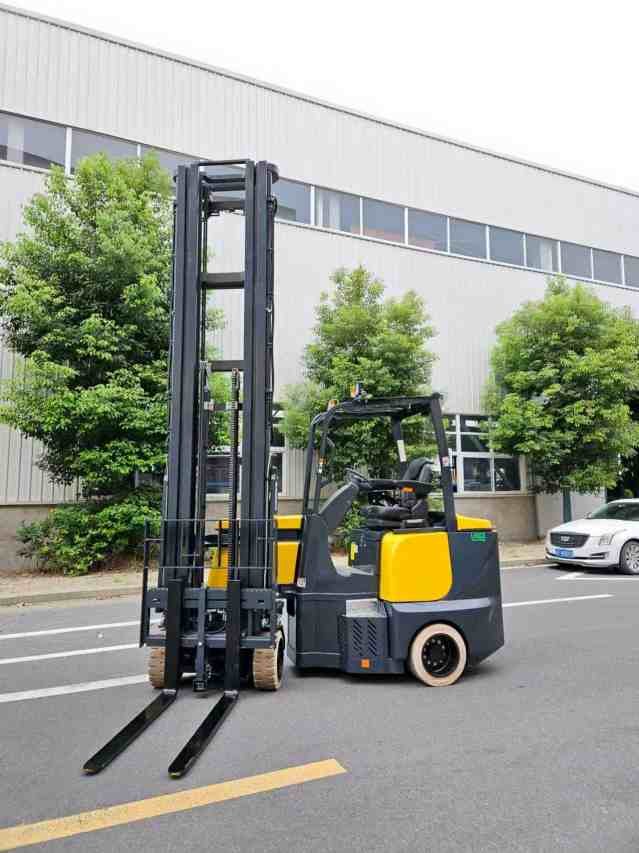

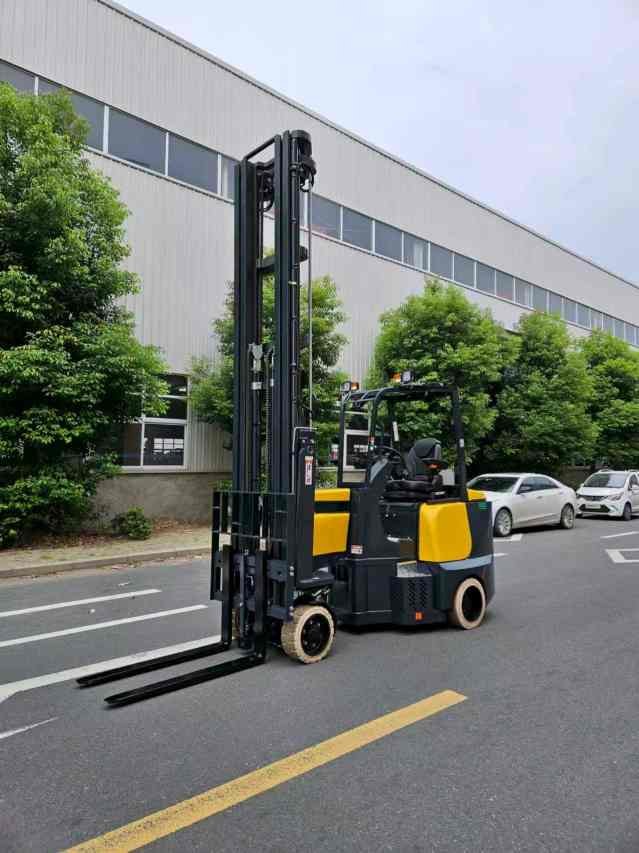

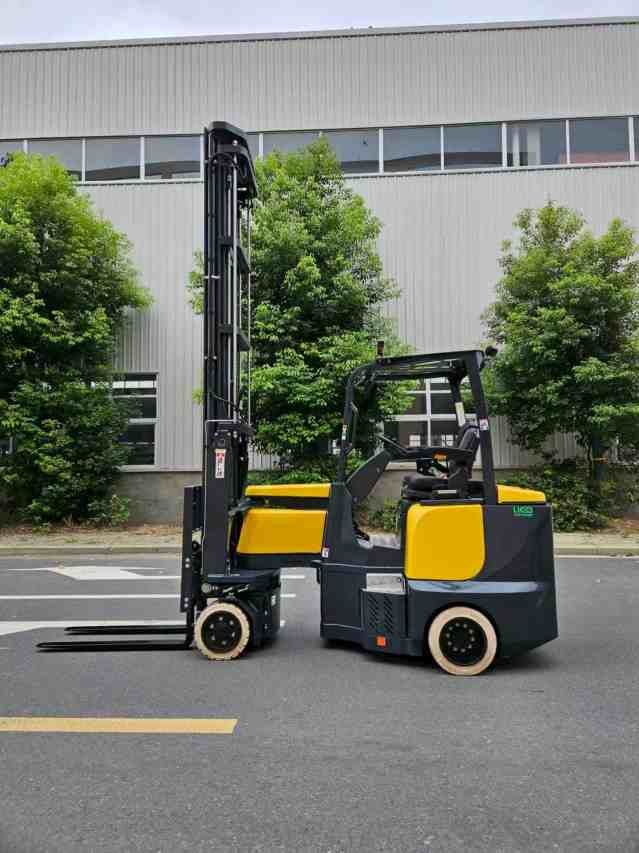

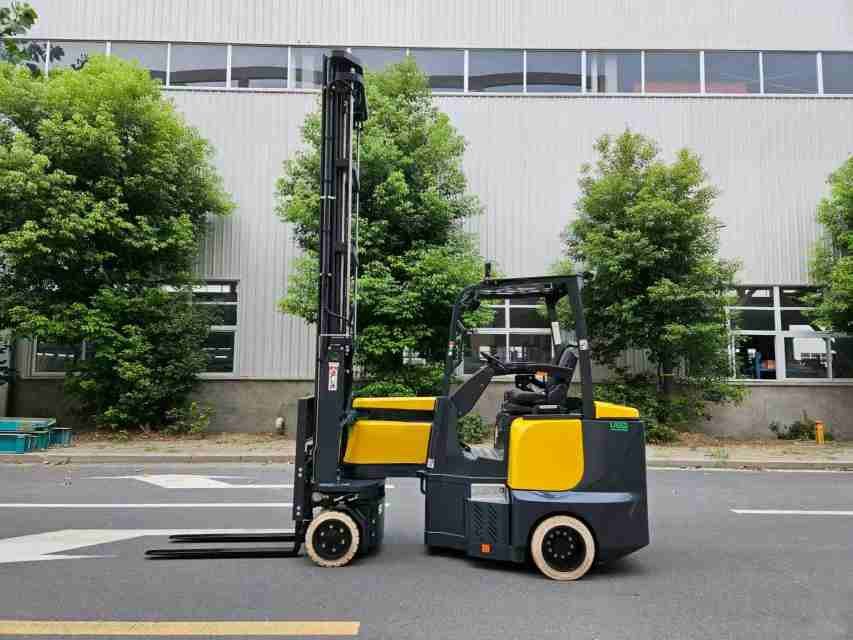

Product Item: Heylifts 1.5t Mini Electric Vna Forklifts
The Heylifts narrow aisle forklifts is firm, versatile and durable. Designed to bear heavy-duty use inside and outside,
each tough articulating narrow aisle forklift is made to the supreme standards. With the ability to work in super narrow aisles (1800mm),
the Heylifts vna forklifts increases storage of working operations; whether it be current or new warehouses.
Furthermore, by using the one truck, buyers can increase productivity and eliminate double handling and speed up “truck to rack” operations.
The Heylifts electric articulated forklifts provides the lowest cost of ownership while maximizing space and productivity to benefit every users.
Heylifts VNA forklifts are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step.
Comparing to reach trucks, Heylifts VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions.
So the Heylifts VNA articulated forklifts can save users much time, space and money.
Full Heylifts articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using,
80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.
| Advanced Parts | Descriptions |

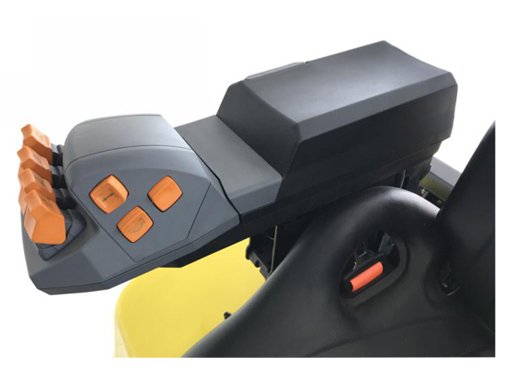

| Fingertip armrest Combines fingertip armrest and electro proportional valve, Heylifts VNA forklifts provides better driving experience, more flexible and accurate operation. It also provides a special picking mode, easy for drivers to load/unload pallets in narrow aisles. With better inching performance, it makes the Heylifts articulated forklifts very suitable for high-intensity work. |

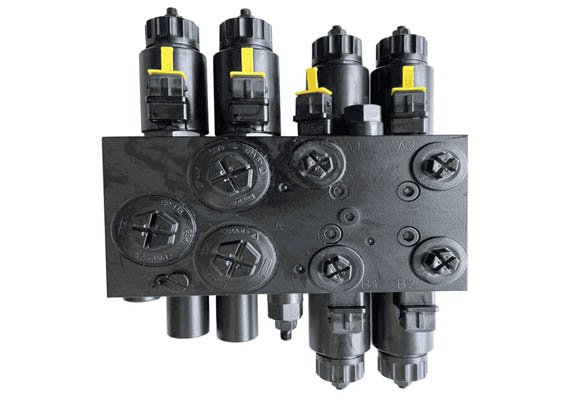

 | Proportional valve Electro-hydraulic proportional valve match with fingertip armrest can adjust the speed of mast lifting/falling, side shift and tilting at will, making it easier and more accurate to pick up/unload goods in narrow aisles. |

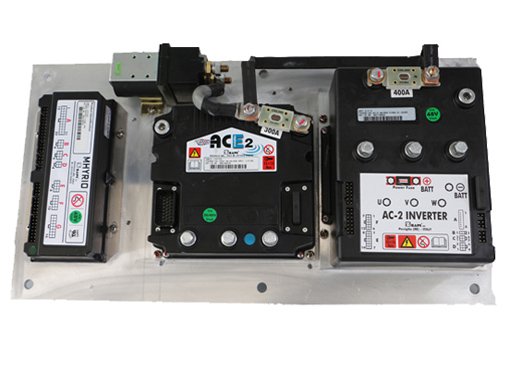

| ZAPI Controller Heylifts VNA articulated forklift ranges are standard fitted with 80V full AC ZAPI dual-core controller. As the voltage is higher, it produces lower current, lower heating, lower failure rate. Therefore, all electrical components will have a longer service life. |

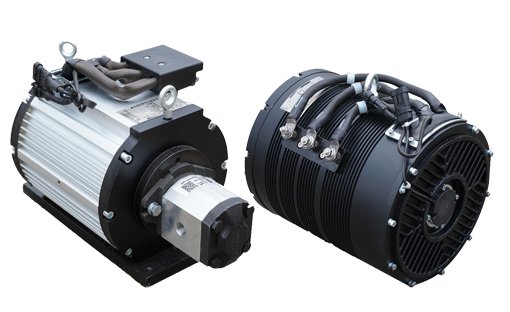

 | Lifting Motor (left) Fitted with external encoder bearing, easy for maintenance. 80V AC 15kw/h Lifting speed: 0.44/0.5m/s Driving Motor (right) Fitted with external encoder bearing, easy for maintenance 80V AC 19.5kw/h Driving speed: 16km/h Gradeability: 18%/20% |

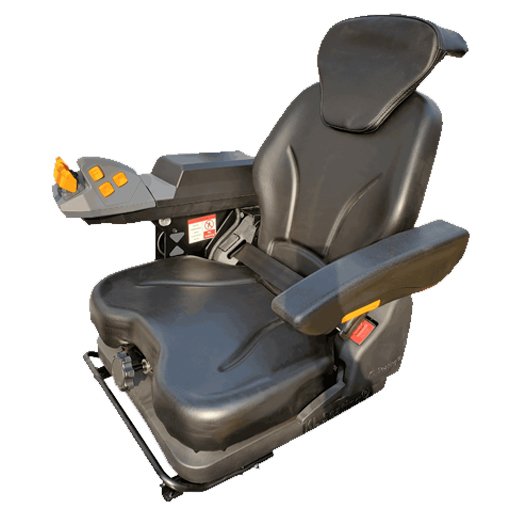

 | Adjustable Suspension Seat OPS system Safe belt High suitability |

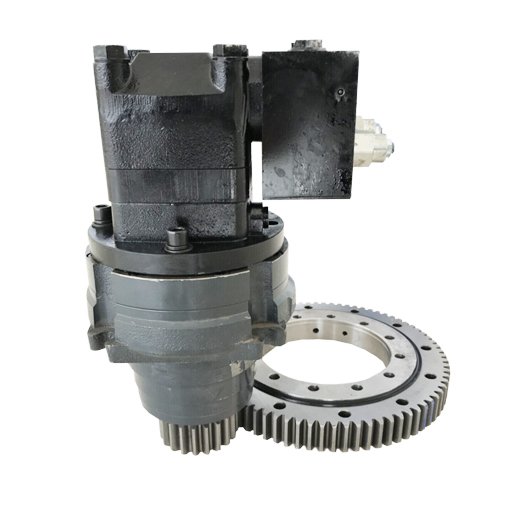

 | Bearings The steering motor drives the large gear ring through the small gear ring, which is more labor-saving and has longer service. Extremely small gear clearance ensures structural stability and thus reduces failure rates. 10 years warranty for the gear. |

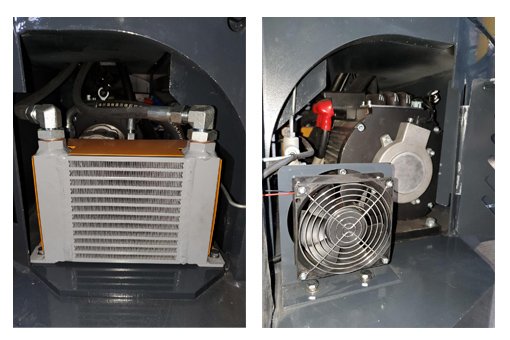

 | Cooling Fans All Heylifts VNA forklifts are equipped with two efficient cooling fans, even in high temperature environment it can quickly cool down the motor and gear pump. |

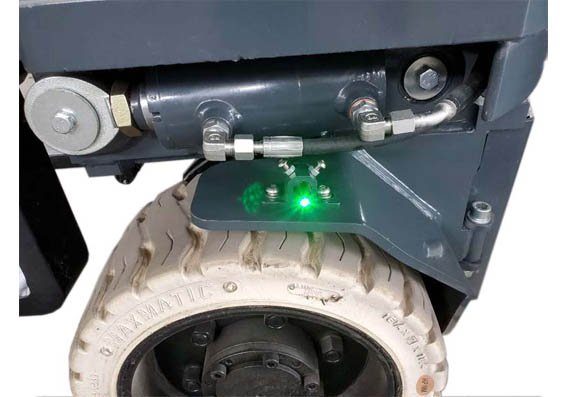

 | Guiding lasers When the laser point to pallet center then drivers can steer direction, pushing forks into fork section accurately. It reduces accidents greatly. |
Configurations
| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |
| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts15 |
| Capacity | KG | 1500 |
| Mast lift height | MM | 4300-7050 |
| Mast free lift height | MM | 1365-2435 |
| Mast closed height | MM | 2265-3335 |
| Mast full extended height | MM | 5561-8311 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1030 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x150 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/400 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 6400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1800 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 7000mm
Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1800mm
The full range of the articulating narrow aisle forklift trucks:
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
