Product Description
Product Item: Heylifts 1.5t Versatile Narrow Aisle Forklift Master
Heylifts articulated forklift is a versatile narrow aisle forklift that can help you deal with pallets in the smallest spaces.
No matter if you are working in a small warehouse or you need to take out a lot of goods from a corner or gap in your space.
You can manipulate these narrow aisle forklifts skillfully so that you can easily get what you need without worrying about damaging your warehouse walls, shelves or inventory itself.
The Heylifts vna articulated forklifts provides the lowest cost of ownership while maximizing space and productivity to benefit every users.
Heylifts narrow aisle forklifts are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step.
Comparing to reach trucks, Heylifts VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions.
So the HeyliftsVNA forklifts can save users much time, space and money.
Full Heylifts articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using,
80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.

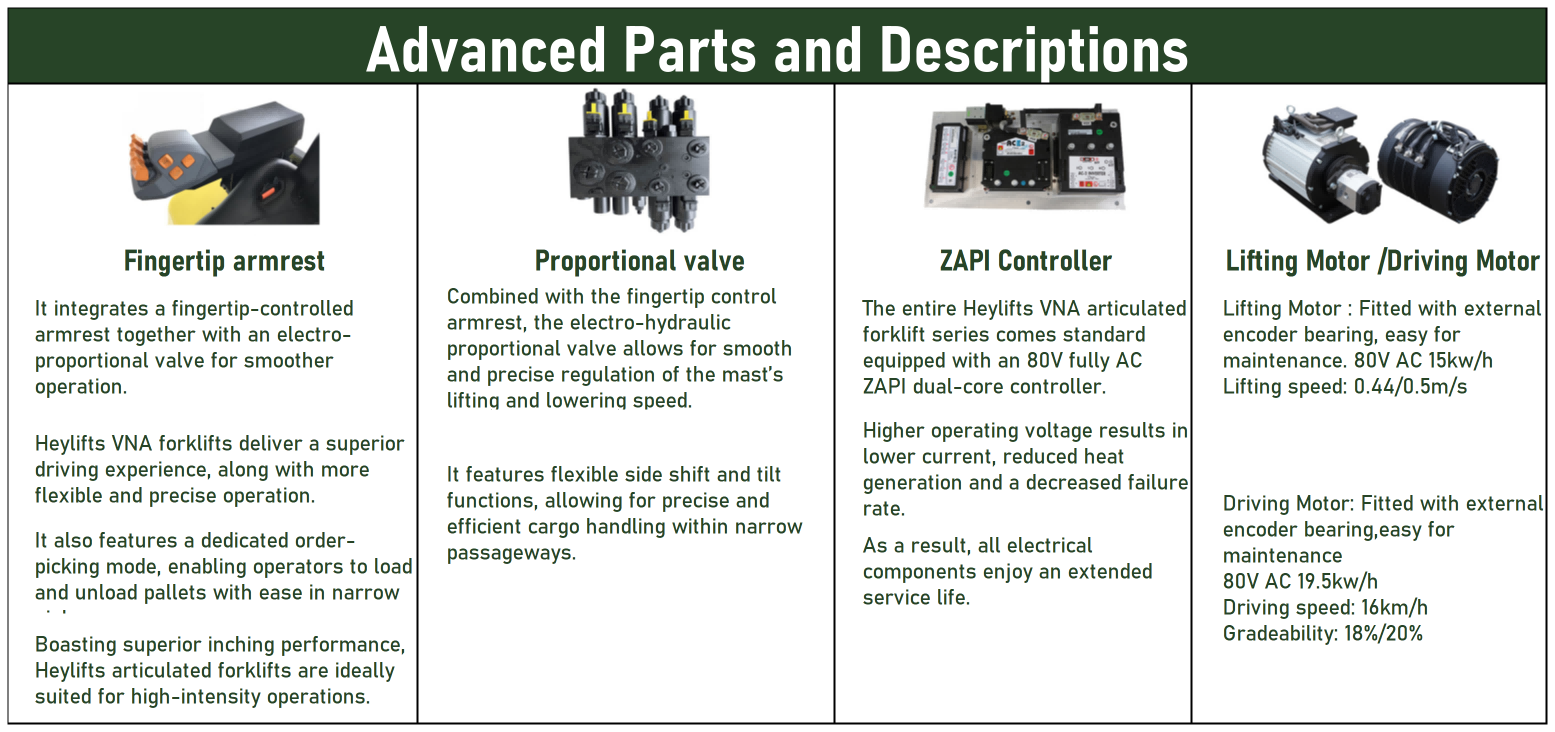

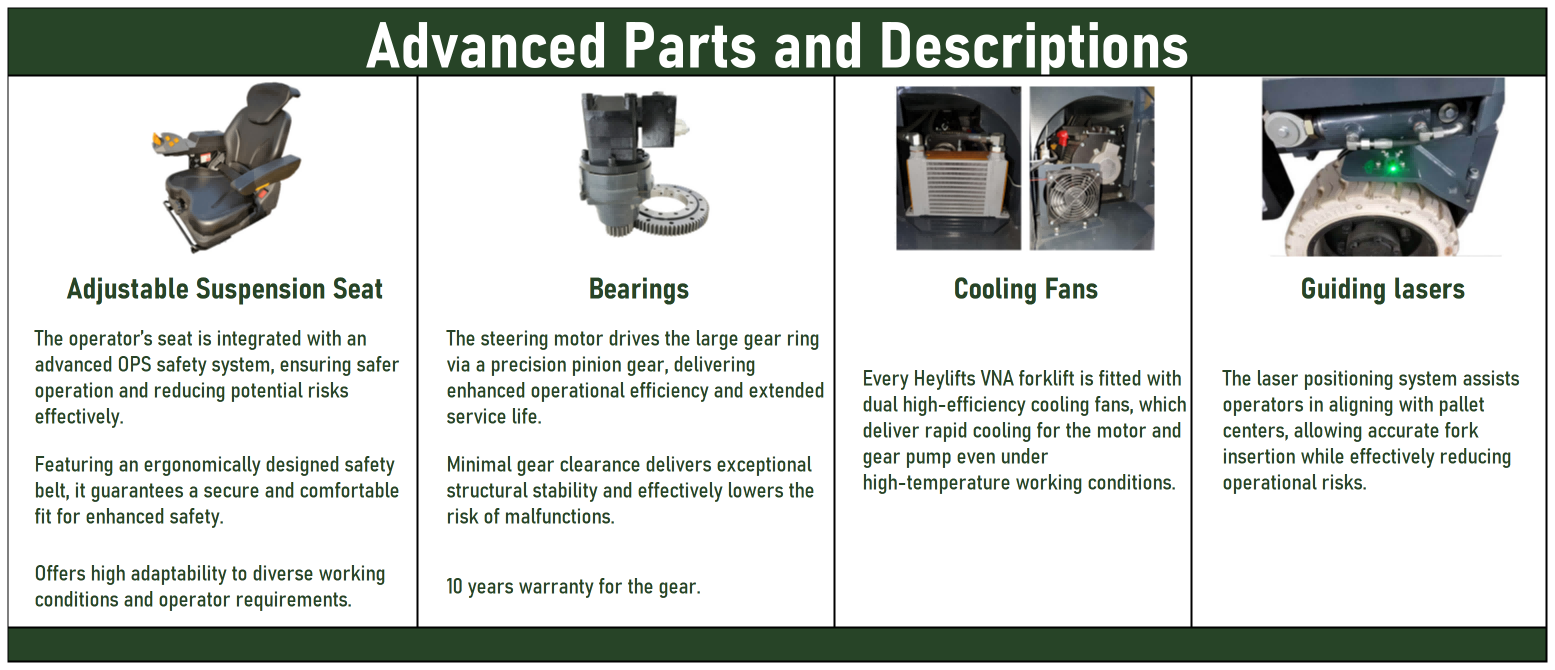

Configurations
| Standard parts | Optional parts |
| Fingertip armrest | Wireless camera and monitor |
| Electro-hydraulic proportional valve | Lithium ion battery |
| 80V AC ZAPI controller | Double deep forks |
| 80V AC lifting&;driving motor | Weighing forks |
| 80V 400AH lead acid battery and customized charger station | Height pre-selector |
| LED &; warning light | Cabin |
| Cooling fans | White tyres |
| Triplex full free mast | Quad mast |
| Integral side shift | Fork positioner |
| Load backrest | |
| Black solid tyres | |
| Backup mirror | |
| Suspension seat with safety belt and OPS system | |
| Guiding lasers |
Specifications
| Model | Unit | Heylifts15 |
| Capacity | KG | 1500 |
| Mast lift height | MM | 4300-7050 |
| Mast free lift height | MM | 1365-2435 |
| Mast closed height | MM | 2265-3335 |
| Mast full extended height | MM | 5561-8311 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1030 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x150 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/400 |
| Weight including battery | KG | 5150 |
| Weight excluding battery | KG | 6400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1800 |
| Transfer aisle width | MM | 2700 |
Less Cost
Narrower Aisle
Higher Productivity
Lift Up To 7000mm

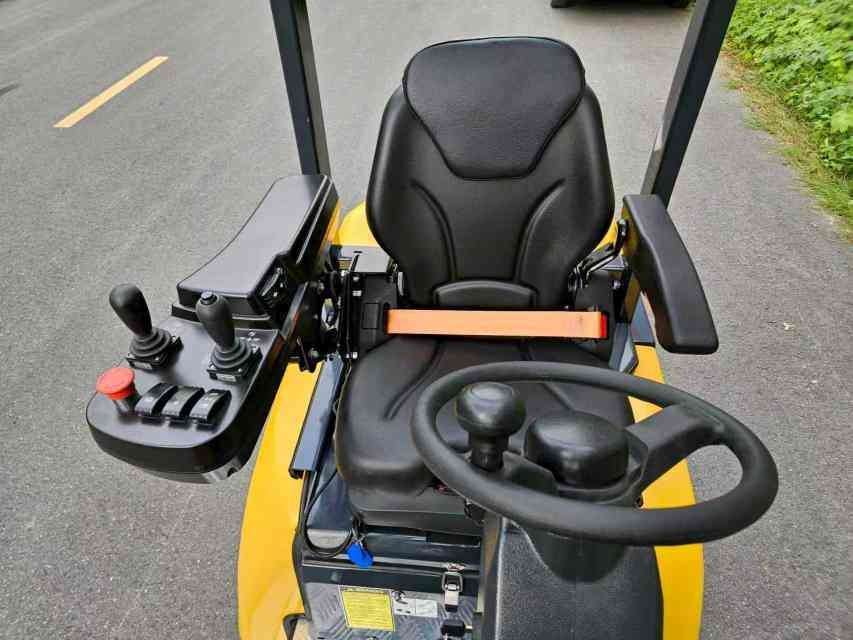

Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1800mm
The full range of the articulating narrow aisle forklift trucks:
Heylifts15 rated capacity 1500KG, lift height 4300mm -7050mm,
Heylifts20 rated capacity 2000KG, lift height 4300mm-10050mm,
Heylifts25 rated capacity 2500KG, lift height 4300mm-12400mm,
Heylifts30 rated capacity 3000KG, lift height 4300mm-12400mm.
