Product Description

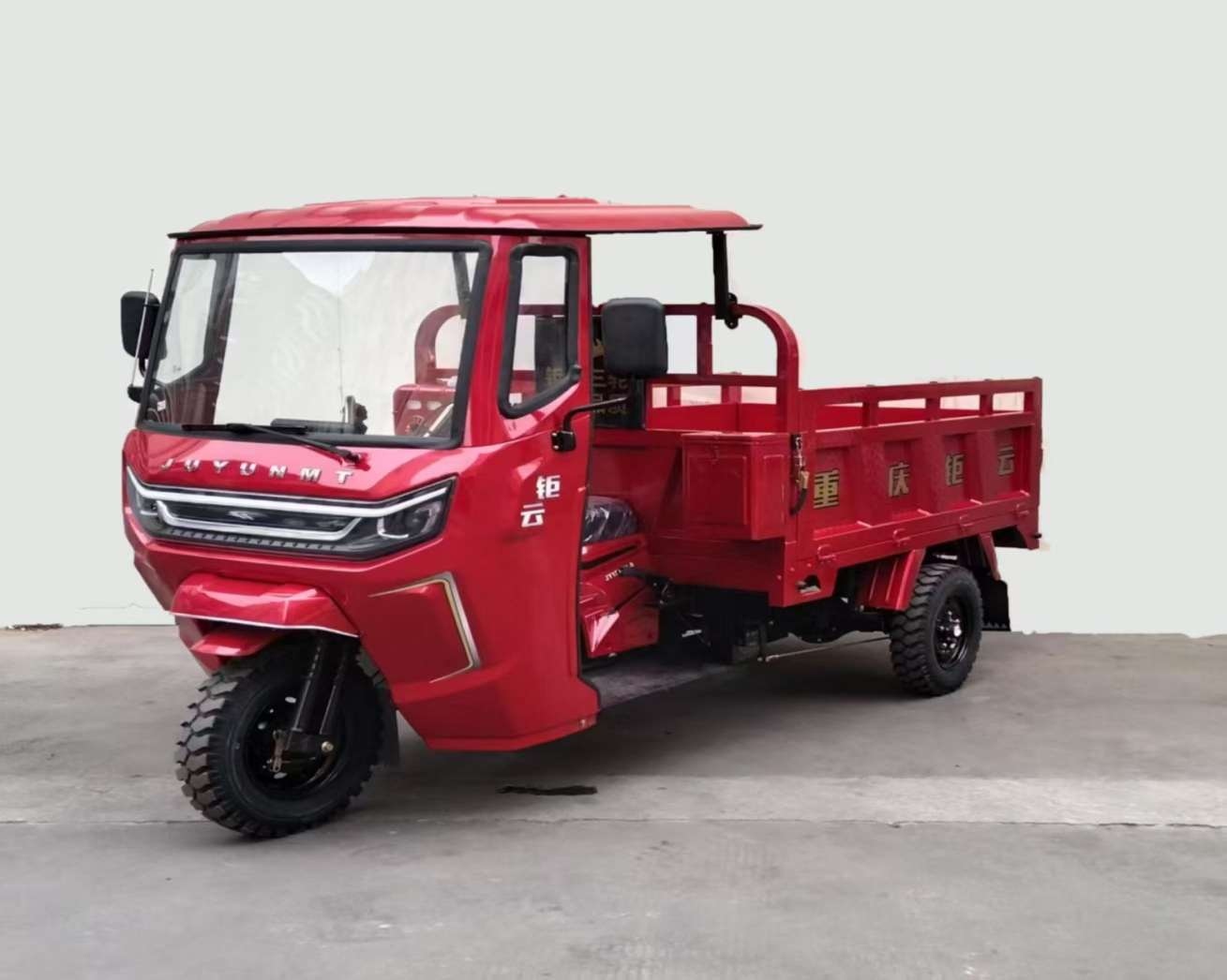

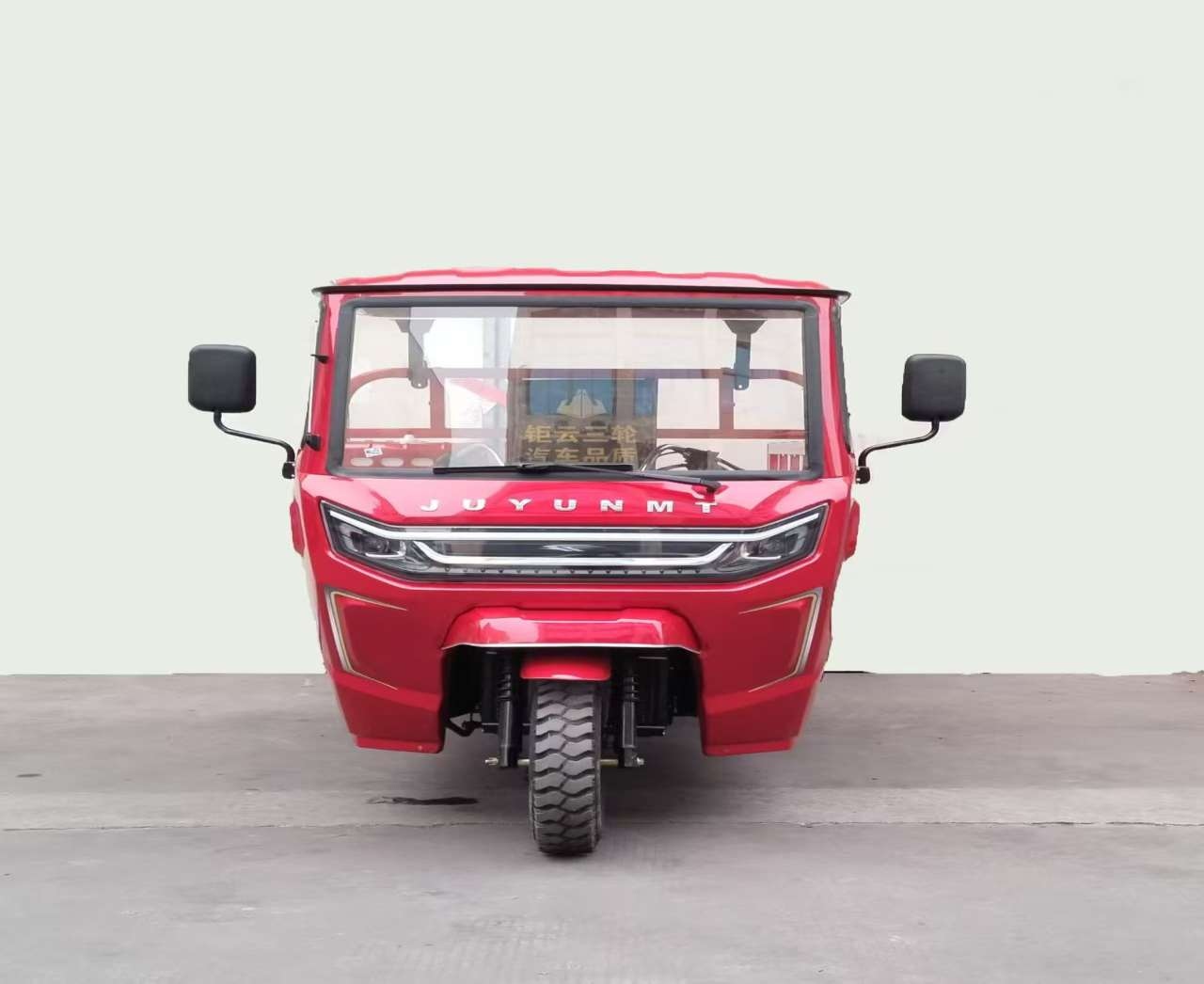

Model H9 is our flagship upgraded heavy-duty gasoline cargo tricycle, tailor-made for steep mountainous,
muddy and rough unpaved roads widely seen across Africa. Equipped with a high-power 350cc water-cooled 12KW engine and reinforced full-load bearing structure,
it achieves a maximum loading capacity of 2000kg, far exceeding ordinary cargo tricycles.
The all-floating heavy rear axle delivers outstanding slope-climbing capability,
paired with upgraded 6+4 outer steel plate suspension and thick anti-slip tires to maintain stable operation under full load on rugged terrain
. It supports both CBU complete vehicle and CKD knocked-down packaging for export;
35 units can be loaded into one 40HQ container, with multiple color options to meet the wholesale demands of African importers, distributors and individual transporters.
Core Selling Points
✅350cc 12KW water-cooled power unit, stable output without overheating during long-time climbing in tropical high-temperature areas
✅Industry-leading max load of 2000kg, ideal for heavy bulk goods transportation
✅Upgraded 6+4 external steel plate rear suspension, stronger shock absorption and anti-deformation performance
✅All-floating heavy-duty rear axle with powerful torque, capable of conquering steep mountain slopes
✅Dual electric & kick start system, ensures smooth startup in remote off-grid mountain villages
✅Large 13L fuel tank + 32A high-capacity battery for long-distance continuous transport
✅Thickened 5.00-12 anti-slip tires, excellent grip on gravel, mud and bumpy mountain roads
✅Simple mechanical brake design, universal spare parts for low-cost local maintenance in Africa
✅Flexible CBU/CKD export packaging to cut sea freight and import tariff costs
✅Factory direct supply without middlemen markup, customizable for large bulk orders

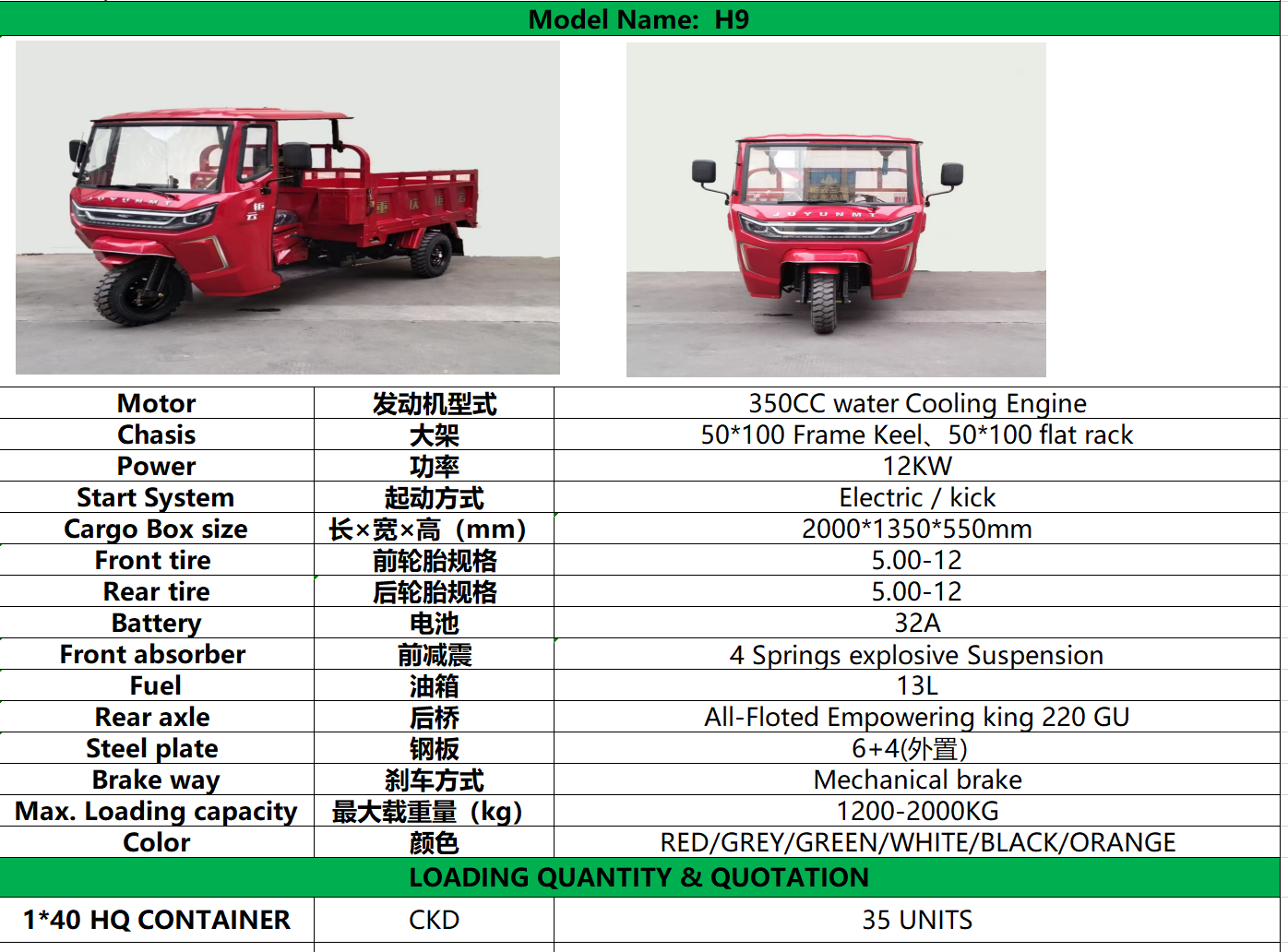

Key Hardware Specifications
✅Power System: 350cc water-cooled gasoline engine, rated power 12KW, electric & kick dual start
✅Load-Bearing Structure: 50*100 thickened integrated frame keel; 6+4 outer reinforced steel plate rear suspension
✅Driving System: All-floated 220GU heavy-duty rear axle for strong climbing torque
✅Cargo Container: Oversized cargo box, dimension 20001350550mm (LWH)
✅Chassis Accessories: 4-coil spring front shock absorber; 5.00-12 thick front & rear tires
✅Energy Matching: 13L large fuel tank, 32A vehicle battery
✅Brake System: Reliable mechanical brake with low failure rate
✅Loading Standard: Max loading capacity 1200–2000kg
✅Export Parameter: 35 units per 40HQ container under CKD packaging
✅Optional Appearance: Red, Grey, Green, White, Black, Orange six body colors
