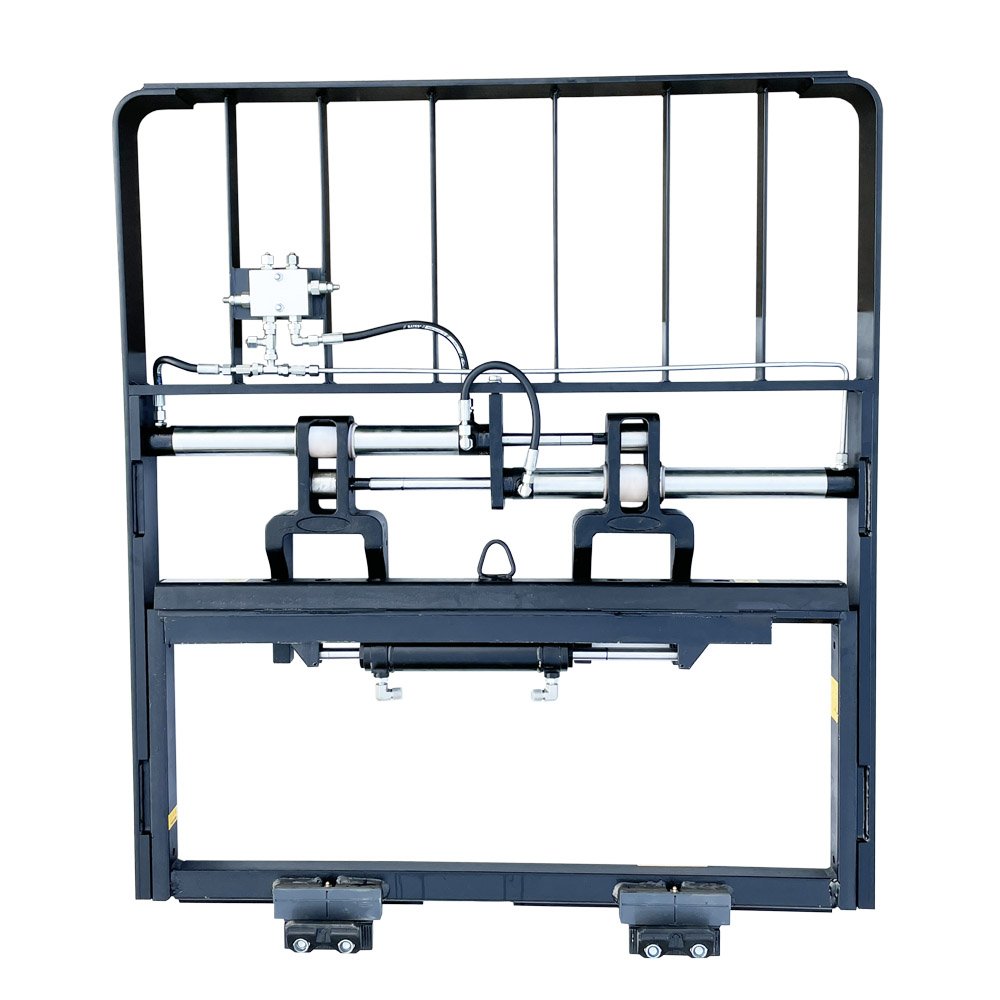

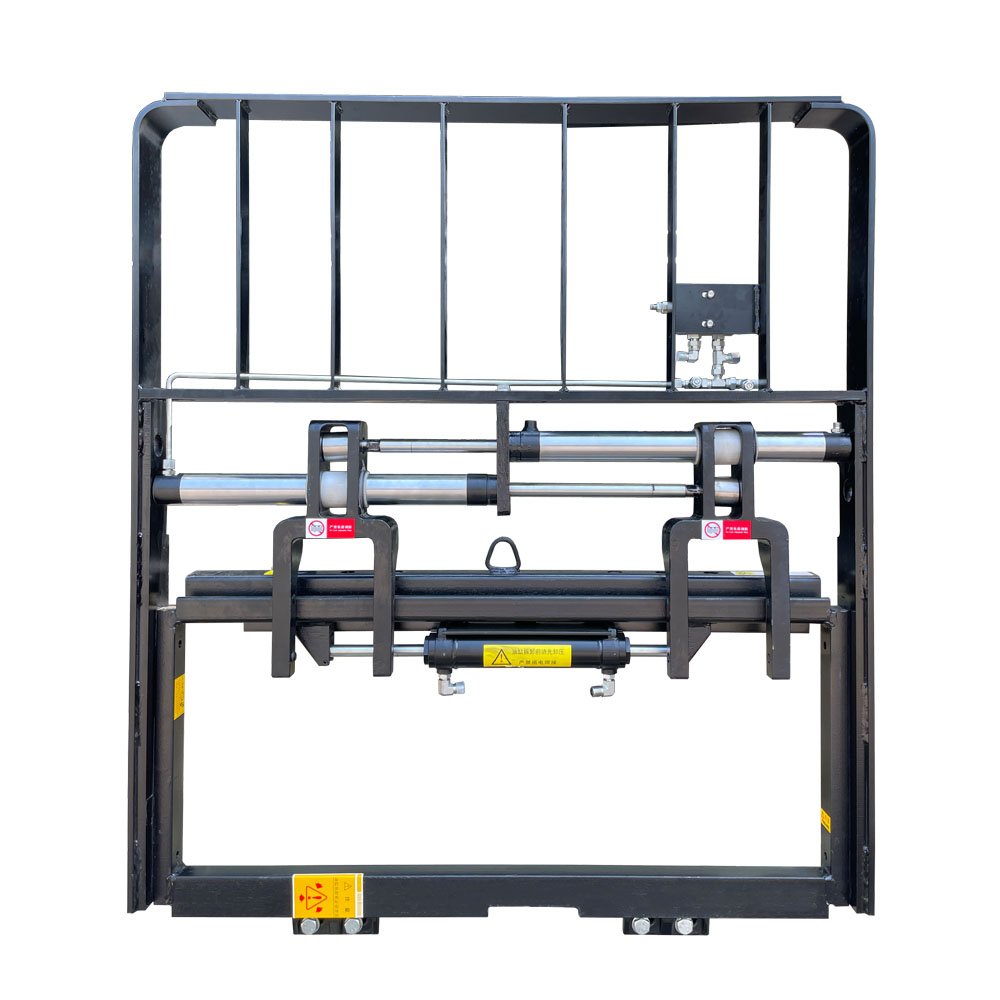

Integrated Side Shifting Fork Positioner
Our fork positioners are designed to efficiently manage pallets of varying widths, delivering reliable solutions for demanding and diverse material handling operations.

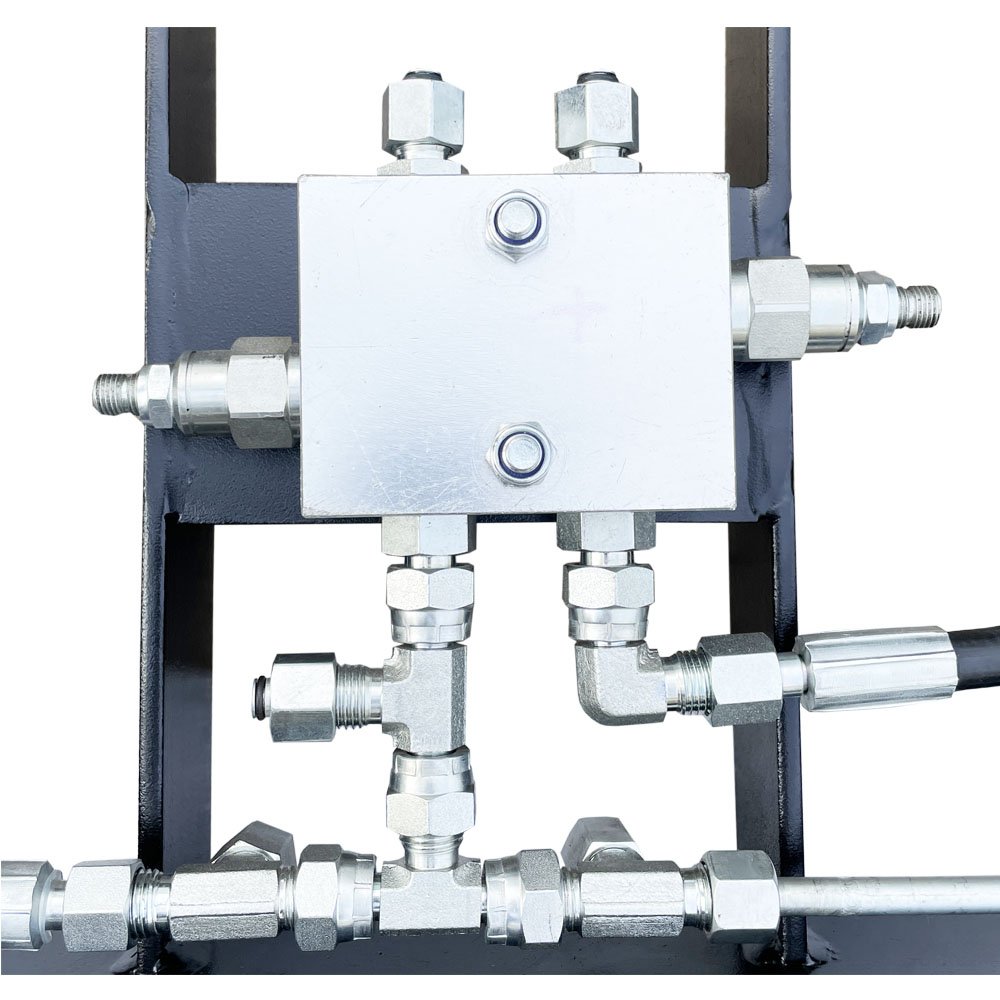

Equipped with advanced hydraulic functionality, the M-Series fork positioner enables operators to adjust fork spacing smoothly either in sync or independently,
achieving precise positioning for different load requirements.
This level of flexibility significantly improves efficiency when handling multiple pallet dimensions,
while also minimizing potential damage to both pallets and transported goods during daily operations.
Note:
1. Please obtain the actual comprehensive load capacity of the forklift/attachment from the forklift manufacturer.
2. Fork pitch range: the minimum value is the inner distance of the two forks when the forks are closed, the maximum value is the outer distance of the two forks when the forks are opened.
3. Non-standard sizes not included in the form need to be booked separately.
Model | Pressure(Bar) | Flow(L/min) | ||
Max. | Min. | Rec. | Max. | |
M**G | 180 | 11 | 15 | 19 |

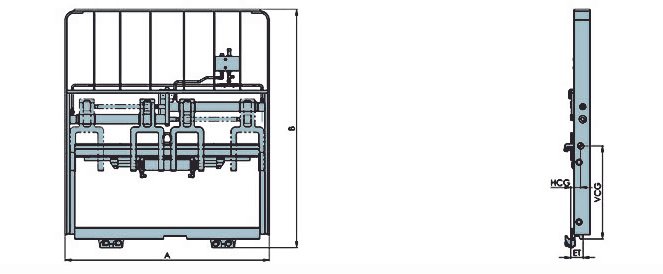

| Model | Capacity@ Load Center | Mounting Class | Opening Range | Total Side Shift | Fork pocket width | Min. Truck Carrier Width | Overall Width | Overall Height | Weight | Effective Thickness | Horizontal of Gravity Centre | Avaliable Forklift |
| M18G-A1 | 1800@500 | 2 | 100-900 | ±100 | 100 | 895 | 1018 | 1245 | 139 | 62 | 50 | 1-1.8T |
| M25G-A1 | 2500@500 | 2 | 100-970 | ±100 | 100 | 940 | 1088 | 1245 | 152 | 62 | 50 | 2-2.5T |
| M30G-A1 | 3000@500 | 3 | 100-1025 | ±100 | 125 | 970 | 1148 | 1336 | 182 | 68 | 50 | 3-3.5T |
| M45G-A1 | 4500@500 | 3 | 100-1300 | ±100 | 150 | 1180 | 1428 | 1345 | 260 | 70 | 50 | 4-4.5T |
