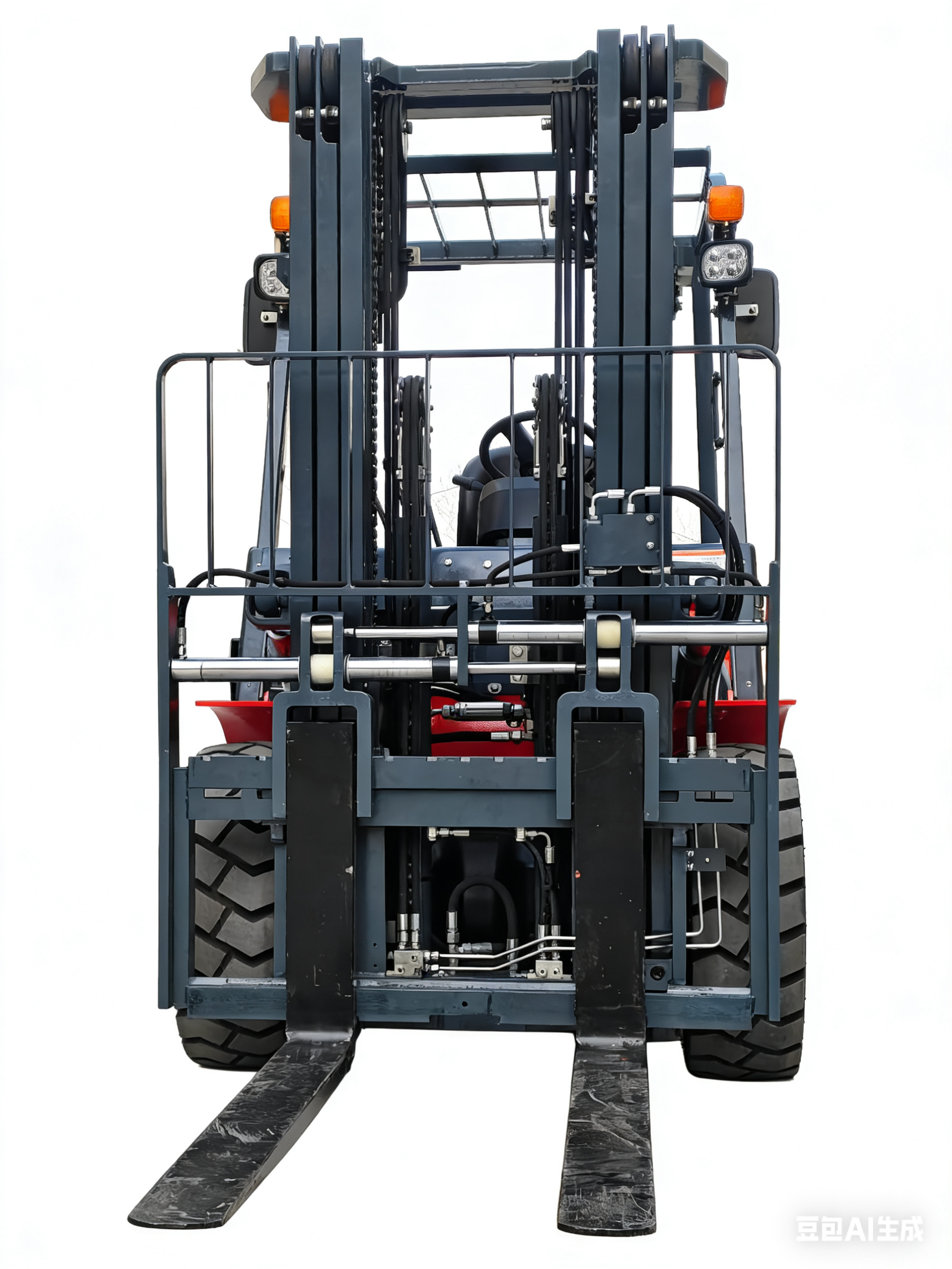

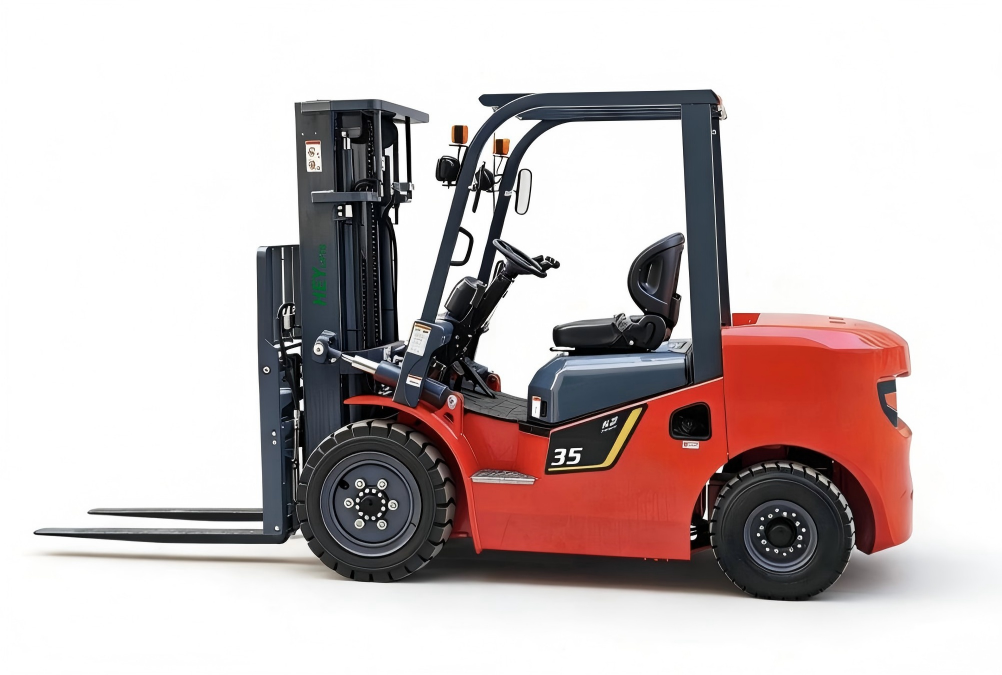

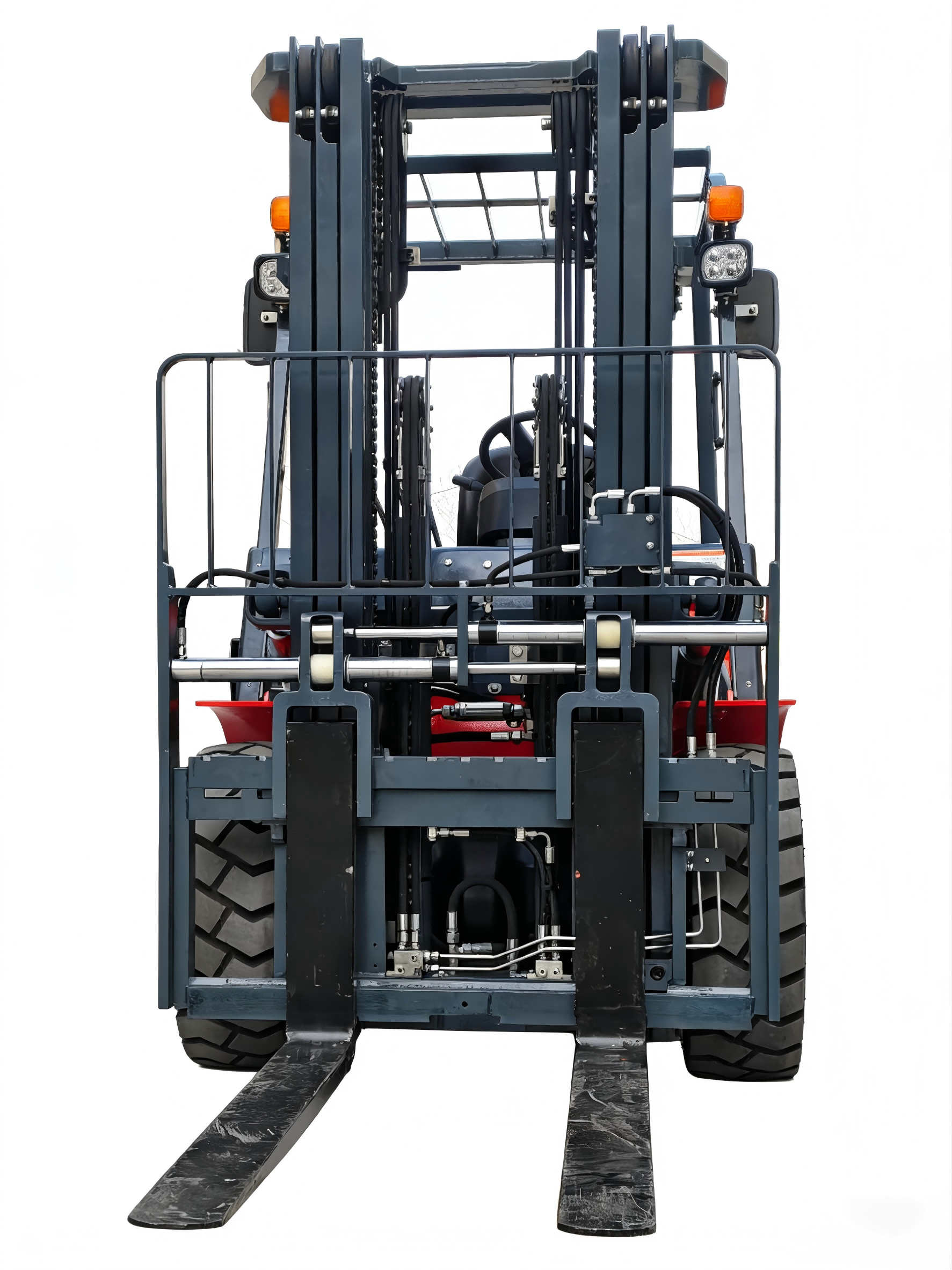

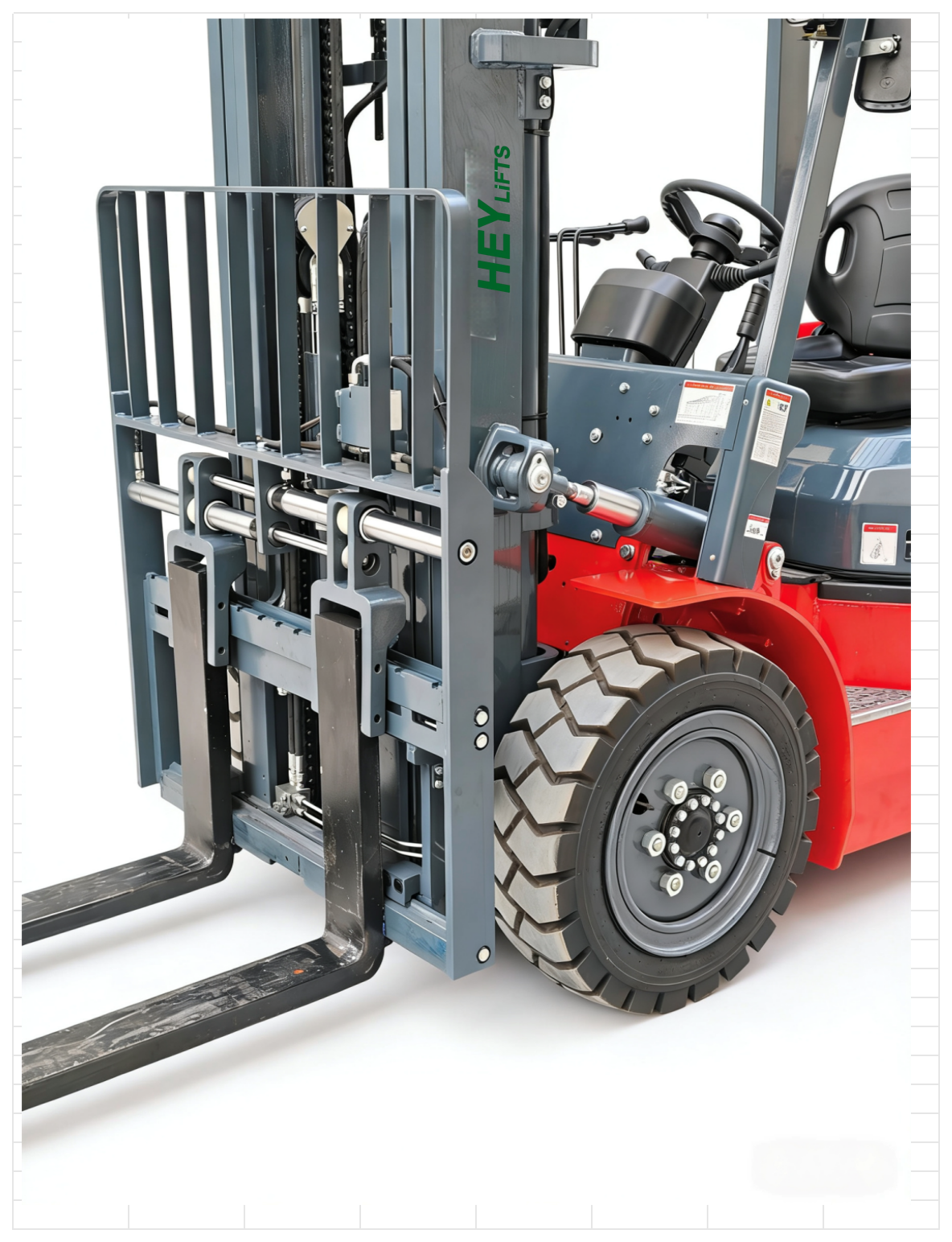

Product Description
Our 2.5-3.5 ton fuel-powered forklift stands as a rugged, high-performance material handling solution, perfectly suited for warehouses, manufacturing facilities,
logistics centers, and outdoor job sites alike. Driven by a high-efficiency fuel engine, this forklift delivers consistent,
reliable power to handle loads ranging from 2500kg to 3500kg, while striking an optimal balance between fuel efficiency and reduced emissions—meeting strict global environmental regulations.

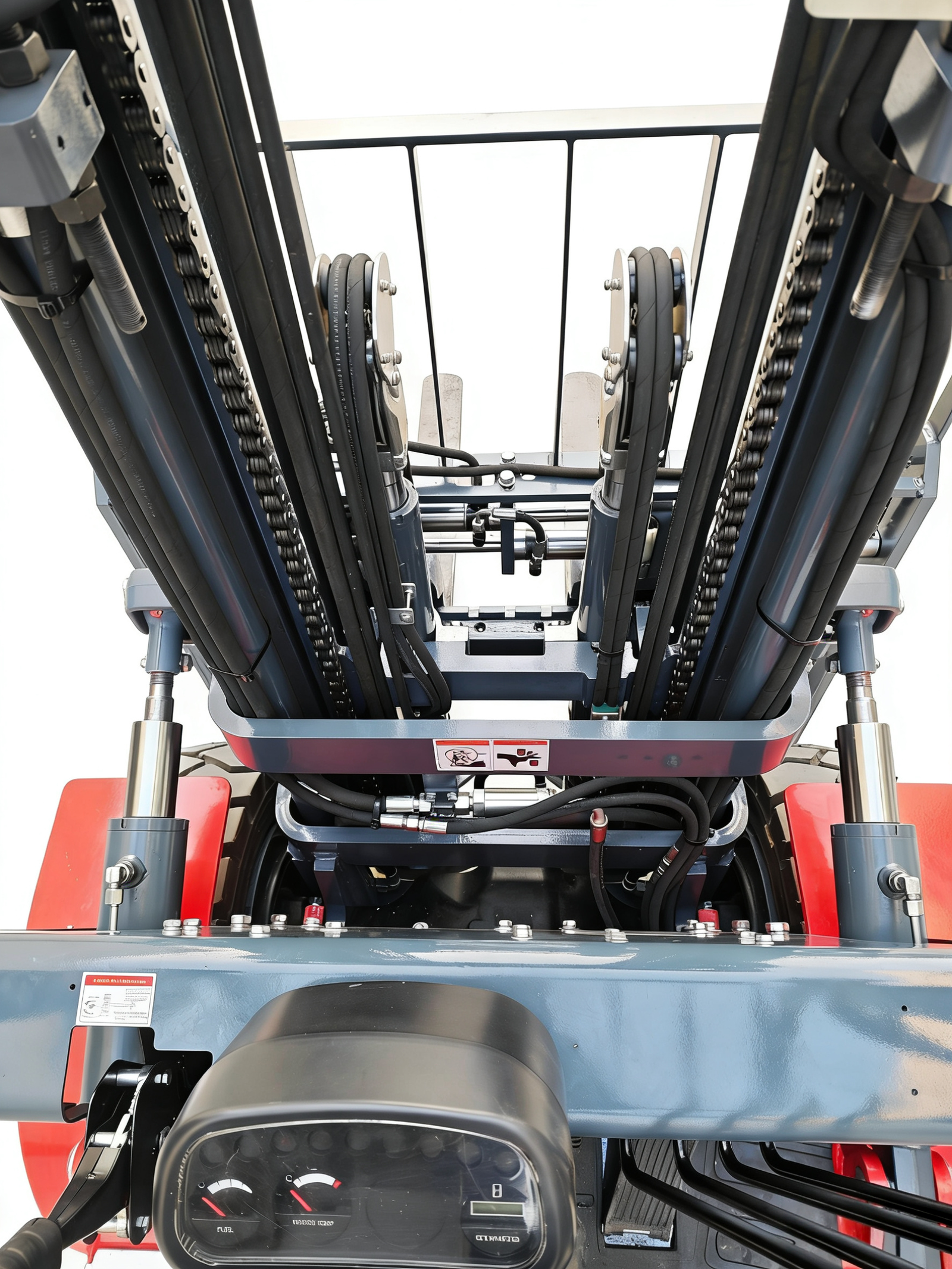

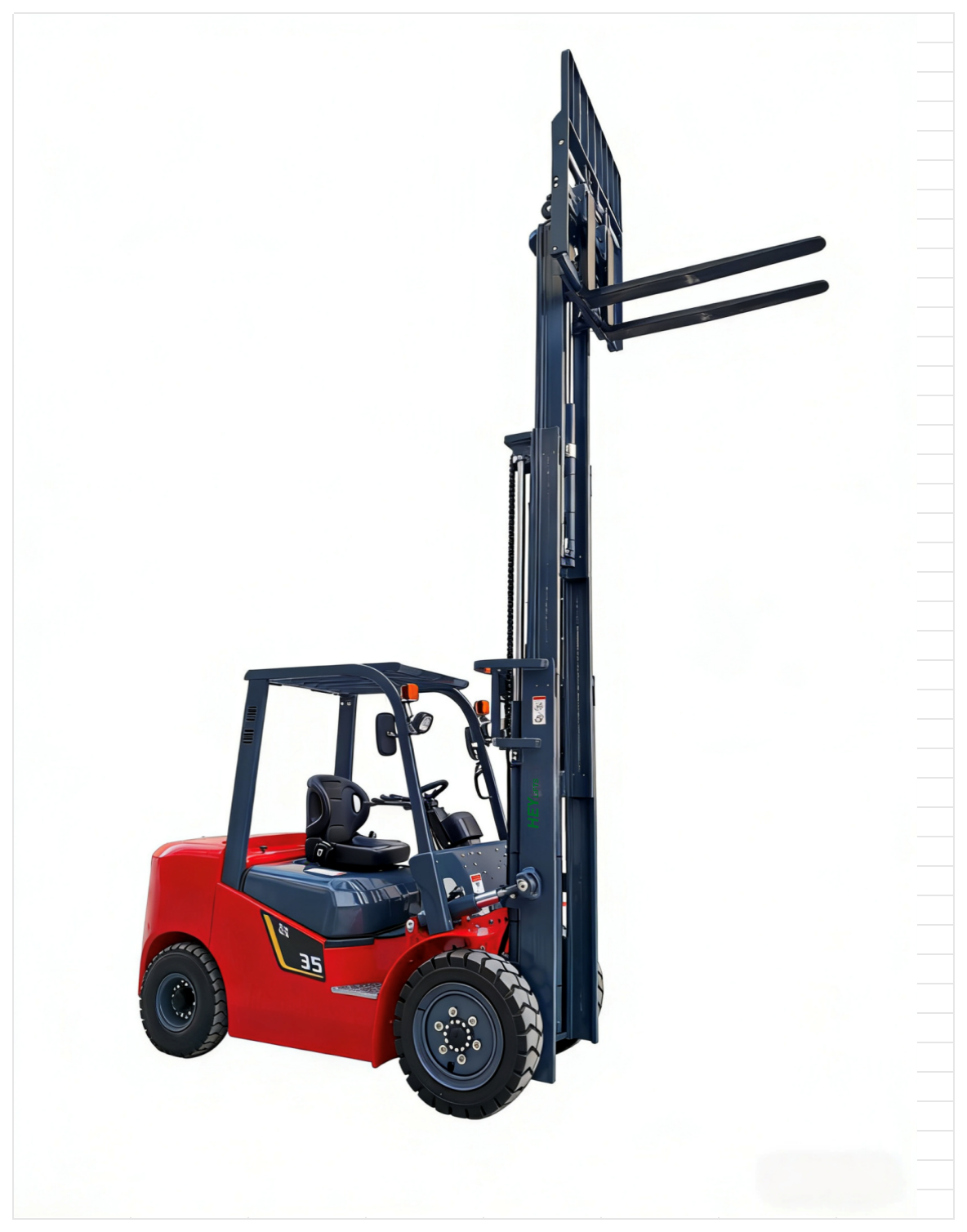

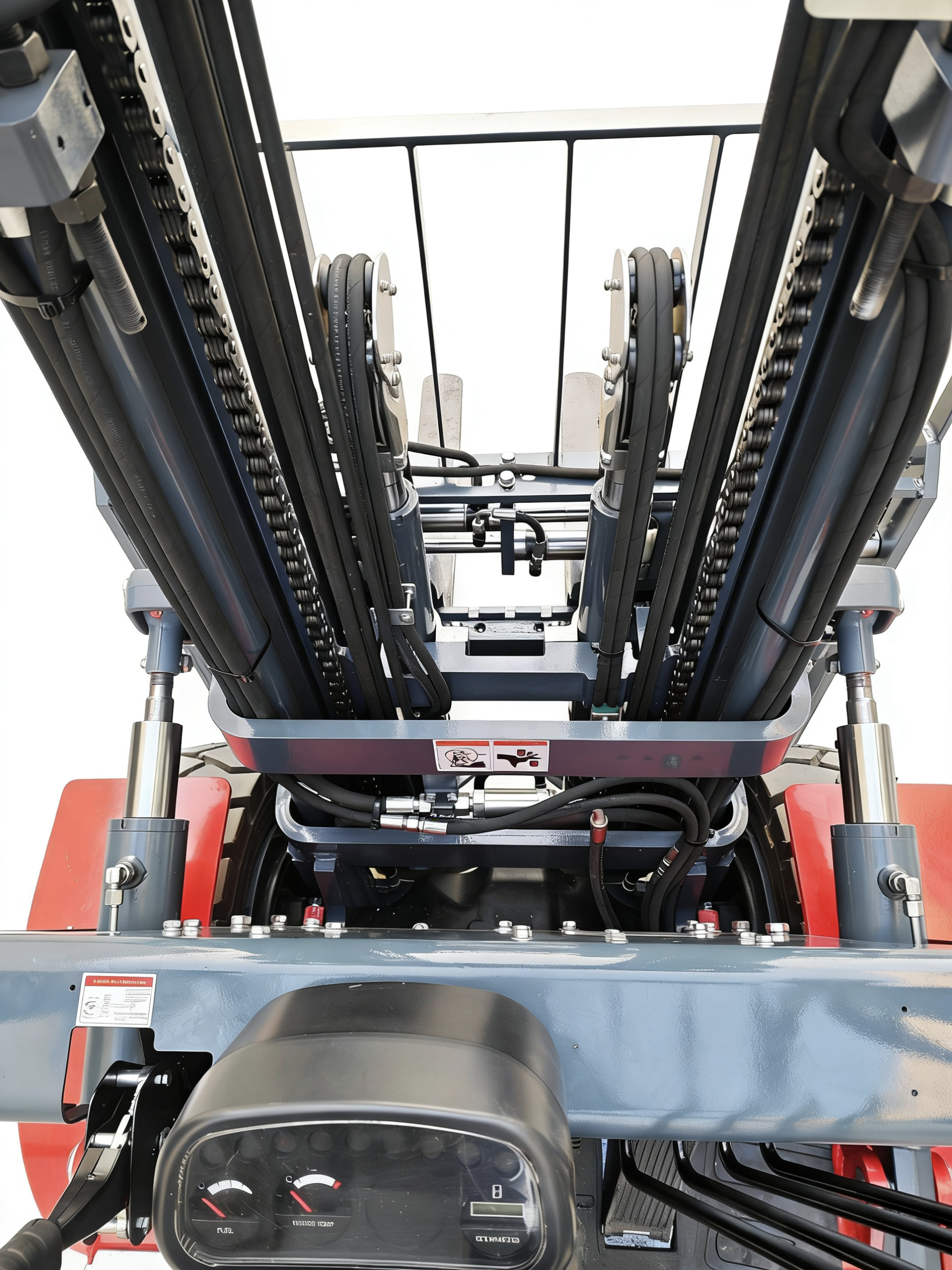

Featuring a precision-engineered hydraulic system, it boasts a maximum lifting height of 4500mm (with customizable options available), ensuring smooth, stable, and safe load maneuvering in every operation.

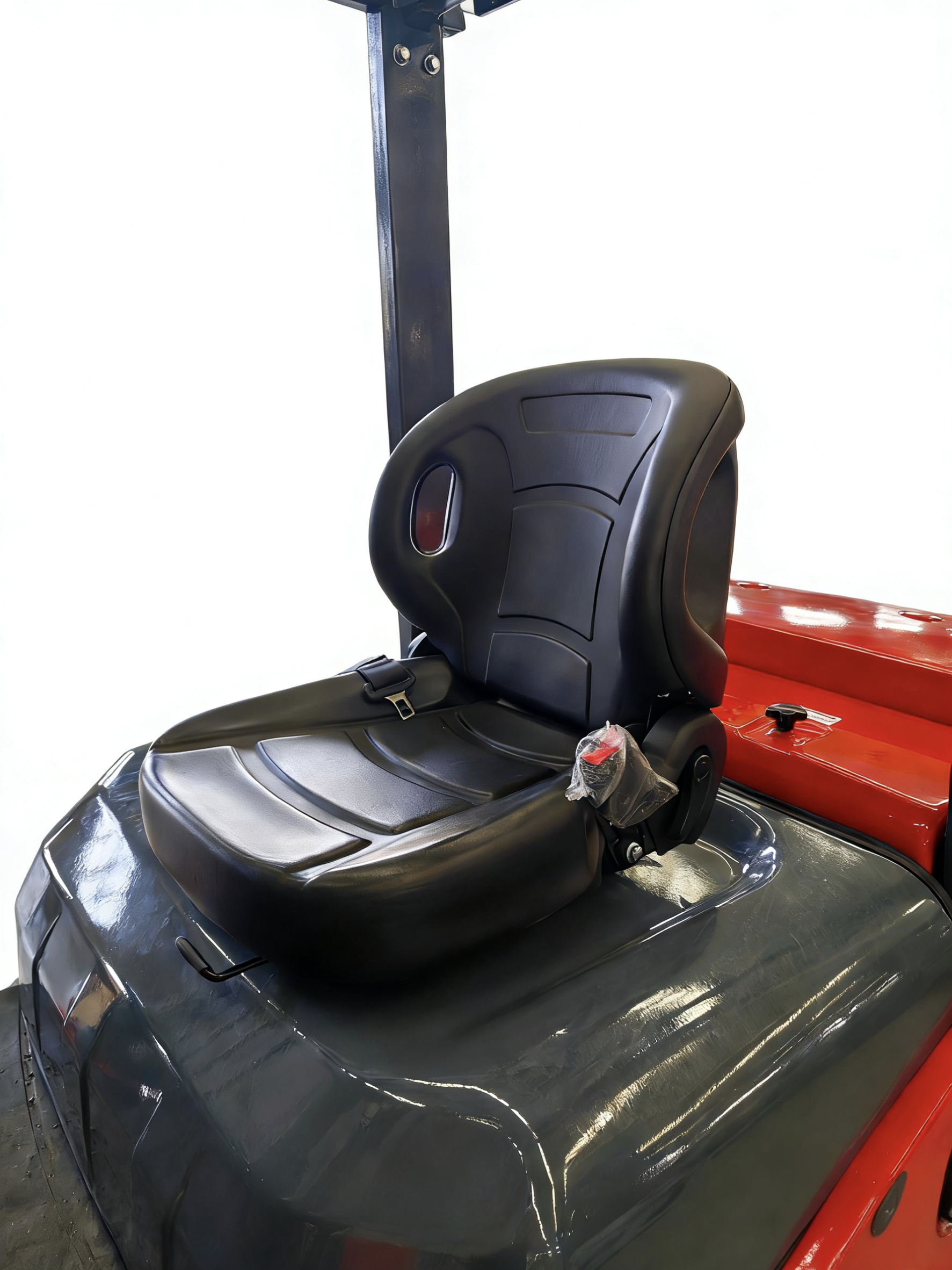

The ergonomically designed operator cabin comes with adjustable seating and user-friendly, intuitive controls, effectively reducing operator fatigue during long working hours.
Additionally, a full suite of safety features—including multi-layer braking systems and a robust overhead guard—provides comprehensive protection for operators in all working conditions.
Crafted from high-strength alloy steel and fitted with wear-resistant tires (pneumatic tires for outdoor adaptability), this fuel forklift offers exceptional durability and can tackle a variety of terrains with ease.
Its simplified maintenance design minimizes downtime, keeping your operations running smoothly. Moreover,
flexible customization options—such as adjustable fork lengths and compatible attachments—enhance its versatility, allowing it to adapt to diverse material handling needs.
As a cost-effective and reliable choice, it effectively boosts material handling efficiency across a wide range of industries.
| Technical Performance Parameters | |||||
| General | Model | CPCD | |||
| Power Type | Diesel | ||||
| Load Capacity | kg | 3000 | 3500 | ||
| Load Center | mm | 500 | |||
| D imension | Lift Height | mm | 3000 | 3000 | |
| Free Lift Height | mm | 105 | 110 | ||
| Fork Size | mm | 1220×125×45 | 1220×125 ×50 | ||
| Mast Tilt Angle | deg | 6 °/12 ° | |||
| Front Overhang | mm | 487 | 492 | ||
| Rear Overhang | mm | 562 | |||
| Overall Dimension | Length to face of fork | mm | 4019 | 4024 | |
| Overall Width | mm | 1225 | |||
| Mast Lowered Height | mm | 2075 | |||
| Mast Extended Height | mm | 4230 | |||
| Overhead Guard Height | mm | 2100 | |||
| Turning Radius(outsiade) | mm | 2555 | |||
| Performance | Full load/No load | Travel Speed | km/h | 18/19 | |
| Lift Speed | mm/s | 450/470 | 410/420 | ||
| Max.Gradeability | % | 15/20 | |||
| Service Weight | kg | 4270 | 4600 | ||
| Chassis | Tyre | Front | 28×9-15-12PR | ||
| Rear | 6.50-10-10PR | ||||
| Tread | Front | mm | 1000 | ||
| Rear | mm | 970 | |||
| Wheelbase | mm | 1750 | |||
| Minimum ground clearance | Mast | mm | 125 | ||
| Dr ive units & control | Battery | V/AH | 12/80 | ||
| Engine | Model | Quanchai QC490GP | |||
| Rated output/r.p.m | kw/r.p.m | 37/2650 | |||
| Rated torque/r.p.m | Nm/r.p.m | 160/1980 | |||
| NO.of Cylinder | 4 | ||||
| Bore×Stroke | mm | 90×105 | |||
| Displacement | L | 2.67 | |||
Transmissions | Type | Electronic shift | |||
| Stage ( FWD/RVS) | 1-1 | ||||
